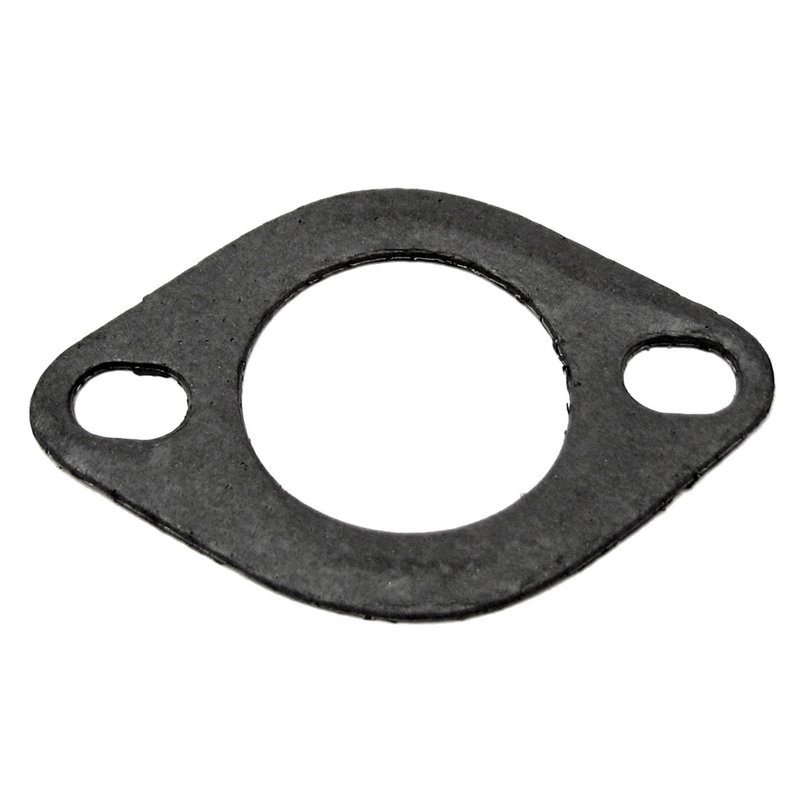

Walker 31671 Exhaust Pipe Flange Gasket

Overview of Walker Exhaust Pipe Flange Gasket 31671

The Walker 31671 exhaust pipe flange gasket is designed specifically for Chevrolet Spark models, providing a reliable seal between exhaust components. Constructed from a fiber and metal laminate, this 2 bolt gasket ensures durability and effective sealing under high-temperature conditions.

• Compatible with Chevrolet Spark exhaust systems
• 2 bolt gasket type with 2.875 inch bolt hole center to center spacing
• Durable fiber and metal laminate material for heat resistance
• Port dimensions: 1.625 inches length and width
• Thickness of 0.058 inches for optimal sealing

Detailed Product Description

The Walker 31671 exhaust pipe flange gasket is engineered to maintain a secure and leak-free connection between exhaust pipes on Chevrolet Spark vehicles. Its fiber and metal laminate construction balances flexibility and strength, allowing it to withstand thermal expansion and vibration common in exhaust systems. The gasket features a 2 bolt design with bolt holes spaced 2.875 inches apart, matching the exhaust flange specifications for a precise fit. The port size measures 1.625 inches in both length and width, ensuring proper exhaust flow without restriction. With a thickness of 0.058 inches, this gasket provides an effective seal to prevent exhaust leaks and maintain system integrity.

Common Applications and Issues Addressed

• Sealing exhaust pipe flanges to prevent exhaust leaks
• Replacing worn or damaged gaskets in Chevrolet Spark exhaust systems
• Eliminating exhaust noise caused by gasket failure
• Preventing harmful exhaust gases from escaping at flange connections
• Maintaining proper exhaust backpressure for engine performance

Installation Notes and Tips

When installing the Walker 31671 gasket, ensure the exhaust flange surfaces are clean and free of debris or old gasket material. Proper alignment of the 2 bolt holes with the exhaust flange is critical for an effective seal. Tighten bolts evenly to the manufacturer’s torque specifications to avoid gasket distortion or leaks. Inspect the gasket during routine exhaust maintenance to ensure continued performance.

Quality Assurance

Walker exhaust gaskets are manufactured to meet industry standards for durability and performance. The fiber and metal laminate material is selected for its resistance to heat and corrosion, contributing to long service life. While specific warranty details are not provided, Walker products are known for consistent quality in exhaust sealing applications.
