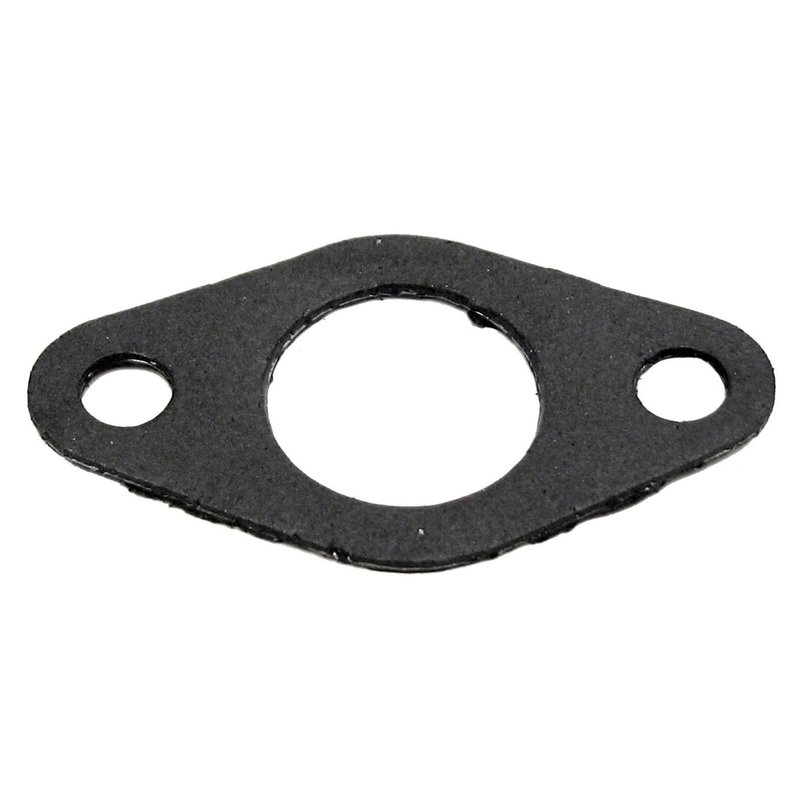

Walker 31676 Oxygen Sensor Gasket
| Brand | Walker 31676 |
|---|---|
| Bolt Hole Center To Bolt Hole Center 1 | 2.125 |
| Bolt Hole Diameter | 0.375 |
| Gasket Type | 2 Bolt |
| Material | Fiber And Metal Laminate |
| Port 1 Length | 1 |
| Port 1 Width | 1 |
| Thickness | 0.058 |
| Fits | Chevrolet and Toyota · 10 vehicles |
OE-compatible design. Works with OE exhaust components and Walker replacement parts.
Fiber and metal laminate. Combines sealing strength with durability for exhaust repairs.
2-bolt gasket. Made for a secure, straightforward exhaust seal.
Cross-references BRExhaust 256-1107 and G1114 for the same application. See all 2.
Walker 31676 Oxygen Sensor Gasket for OE Exhaust Repairs
Walker 31676 is an oxygen sensor gasket built for exhaust sealing at the sensor flange connection. It uses a fiber and metal laminate construction with a 0.058-inch thickness to help maintain a secure seal in the exhaust stream. This part is a direct-fit style option for 1998-2002 Chevrolet Prizm and 1998-2002 Toyota Corolla applications.
Key Features
- Fiber and metal laminate material for sealing durability
- 0.058-inch thickness for a precise exhaust flange fit
- 2-bolt gasket design
- Bolt hole center-to-center spacing: 2.125 inches
- Bolt hole diameter: 0.375 inch
- Port opening size: 1 inch by 1 inch
- Walker part number 31676 for catalog and cross-reference use
Detailed Product Description
Walker 31676 is made to complete exhaust repair work where the oxygen sensor gasket seals between OE exhaust components or Walker aftermarket replacement parts. The 2-bolt layout, 1 x 1-inch port opening, and measured bolt spacing support accurate alignment at the flange connection. For shoppers searching for an oxygen sensor gasket for 1998-2002 Toyota Corolla or a Walker gasket for 1998-2002 Chevrolet Prizm, this part number 31676 provides a focused fitment match.
This part cross-references BRExhaust 256-1107 and G1114 for the same application.
Common Problems This Part Can Help Address
- Exhaust leaks at the oxygen sensor flange
- Damaged or flattened gasket sealing surfaces
- Noise from a leaking exhaust joint
- Improper sealing after exhaust service
- Fitment issues when replacing a worn flange gasket on a Corolla or Prizm
Installation Notes and Tips
Verify the 2-bolt flange pattern, bolt hole spacing, and port dimensions before installation. Clean both mating surfaces thoroughly so the gasket seats evenly, and inspect the flange for warping or corrosion that could affect sealing. Confirm the application matches 1998-2002 Chevrolet Prizm or 1998-2002 Toyota Corolla before ordering Walker 31676.
Quality Assurance
Walker supplies exhaust sealing components intended to work with OE exhaust systems and Walker replacement parts. The 31676 gasket is built to match the listed dimensions and application coverage for consistent exhaust repair results.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2002 | Chevrolet | Prizm | 1.8L | L4 | N/A | — |
| 2002 | Toyota | Corolla | 1.8L | L4 | N/A | — |
| 2001 | Chevrolet | Prizm | 1.8L | L4 | N/A | — |
| 2001 | Toyota | Corolla | 1.8L | L4 | N/A | — |
| 2000 | Chevrolet | Prizm | 1.8L | L4 | N/A | — |
| 2000 | Toyota | Corolla | 1.8L | L4 | N/A | — |
| 1999 | Chevrolet | Prizm | 1.8L | L4 | N/A | — |
| 1999 | Toyota | Corolla | 1.8L | L4 | N/A | — |
| 1998 | Chevrolet | Prizm | 1.8L | L4 | N/A | — |
| 1998 | Toyota | Corolla | 1.8L | L4 | N/A | — |
