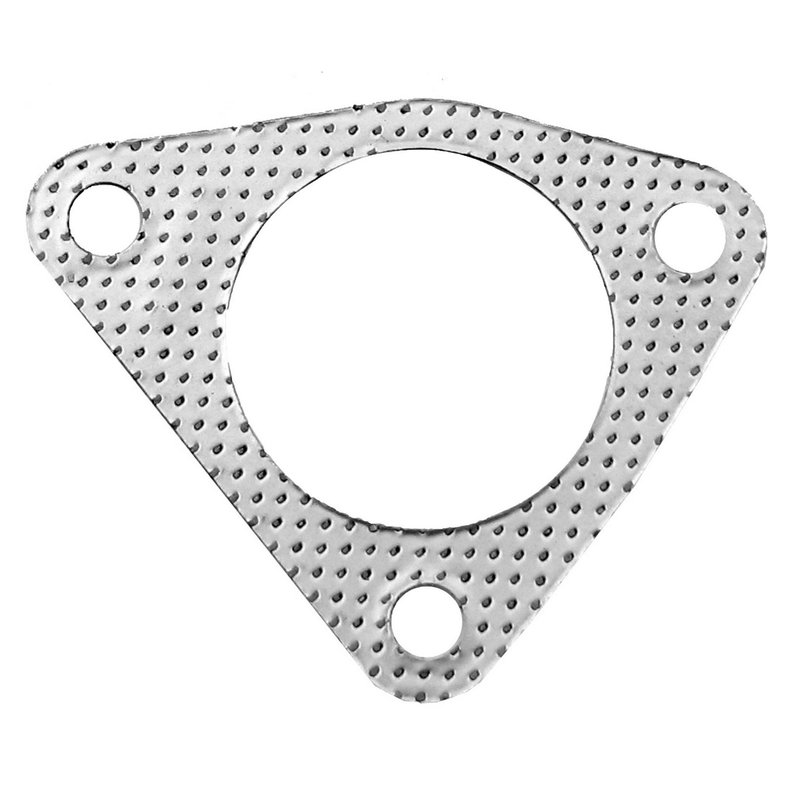

Walker 31726 Exhaust Pipe Flange Gasket
| Brand | Walker 31726 |
|---|---|
| Bolt Hole Center To Bolt Hole Center 1 | 3.5 |
| Bolt Hole Center To Bolt Hole Center 2 | 3.625 |
| Bolt Hole Diameter | 0.5 |
| Gasket Type | 3 Bolt |
| Material | Fiber And Metal Laminate With Metal Fire Ring |
| Port 1 Length | 2.875 |
| Port 1 Width | 2.875 |
| Thickness | 0.058 |
| Fits | Chevrolet and Daewoo · 11 vehicles |
OE-style fit. Works with OE exhaust components and Walker replacement parts.
Fiber and metal laminate. Combines a metal fire ring for a tighter exhaust seal.
3-bolt gasket. Built for exhaust flange sealing in a durable design.
Cross-references EG24388 and EG24388-001 for the same application. See all 2.
Walker 31726 Exhaust Pipe Flange Gasket
Walker 31726 is an exhaust pipe flange gasket built for a 3-bolt exhaust connection. It uses a fiber and metal laminate with a metal fire ring to help seal the joint between OE exhaust components and Walker aftermarket replacement parts. This gasket is a direct-fit option for select Chevrolet Aveo and Chevrolet Aveo5 applications.
Key Features
- 3-bolt exhaust pipe flange gasket design
- Fiber and metal laminate construction with a metal fire ring
- Bolt hole center spacing: 3.5 in. and 3.625 in.
- Bolt hole diameter: 0.5 in.
- Port size: 2.875 in. x 2.875 in.
- Thickness: 0.058 in.
- Fits 2004-2008 Chevrolet Aveo and 2007-2008 Chevrolet Aveo5
Detailed Description
Walker 31726 is engineered for exhaust flange sealing where a 3-bolt connection is used. The fiber and metal laminate construction, combined with a metal fire ring, supports a tight seal at the exhaust joint and helps maintain proper exhaust flow at the flange connection. This part is sized for the listed Chevrolet Aveo and Chevrolet Aveo5 applications and is a practical replacement when servicing the exhaust pipe flange area. This part cross-references EG24388 and EG24388-001 for the same application.
Common Repair Uses
- Exhaust leak at the flange connection
- Noise from a damaged or deteriorated gasket
- Soot or residue around the exhaust joint
- Sealing issues after exhaust pipe or flange service
- Replacement for worn gasket material on a 3-bolt exhaust joint
Installation Notes and Tips
Verify the flange pattern, bolt hole spacing, and port dimensions before installation. Clean the mating surfaces thoroughly so the gasket seats evenly, and inspect the flange for warping or corrosion that could affect sealing. Confirm vehicle application for 2004-2008 Chevrolet Aveo and 2007-2008 Chevrolet Aveo5 before ordering Walker 31726.
Quality Assurance
Walker supplies exhaust sealing components designed to work with OE exhaust parts and Walker replacement systems. Walker 31726 follows the listed dimensional specifications for the confirmed applications, helping support a proper exhaust repair on the Chevrolet Aveo and Chevrolet Aveo5.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2008 | Chevrolet | Aveo | — | 1.6L | L4 | N/A | — |
| 2008 | Chevrolet | Aveo5 | — | 1.6L | L4 | N/A | — |
| 2007 | Chevrolet | Aveo | — | 1.6L | L4 | N/A | — |
| 2007 | Chevrolet | Aveo5 | — | 1.6L | L4 | N/A | — |
| 2006 | Chevrolet | Aveo | LS | 1.6L | L4 | N/A | — |
| 2006 | Chevrolet | Aveo | LT | 1.6L | L4 | N/A | — |
| 2006 | Chevrolet | Aveo | Special Value | 1.6L | L4 | N/A | — |
| 2005 | Chevrolet | Aveo | LS | 1.6L | L4 | N/A | — |
| 2005 | Chevrolet | Aveo | LT | 1.6L | L4 | N/A | — |
| 2005 | Chevrolet | Aveo | Special Value | 1.6L | L4 | N/A | — |
| 2004 | Chevrolet | Aveo | — | 1.6L | L4 | N/A | — |
| No rows match your filter. | |||||||
