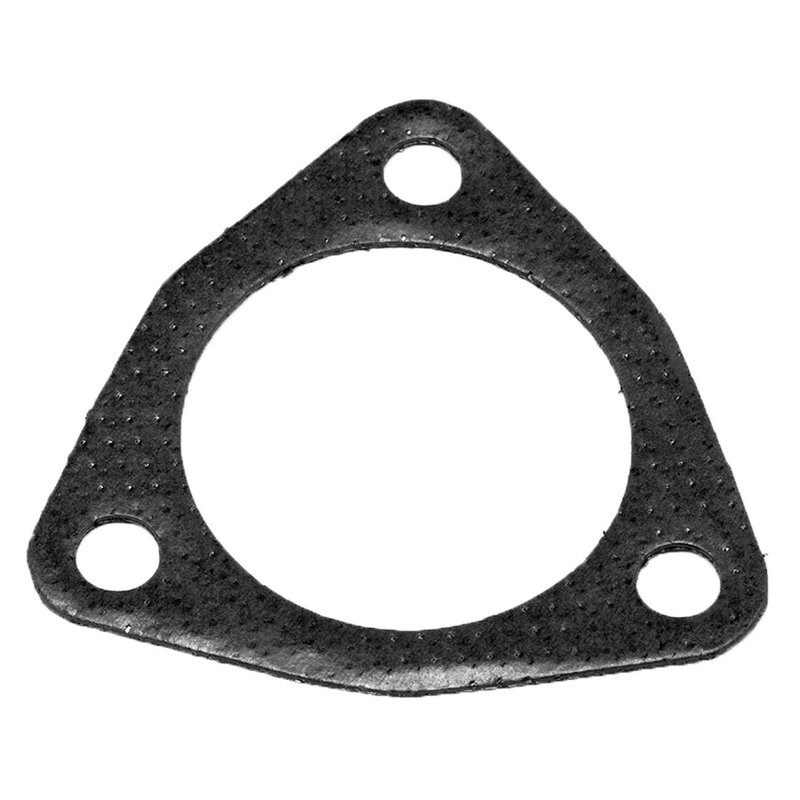

Walker 31727 Exhaust Pipe Flange Gasket

Overview of Walker Exhaust Pipe Flange Gasket 31727

The Walker 31727 exhaust pipe flange gasket is designed specifically for Chevrolet Aveo and Aveo5 models. This 3-bolt gasket ensures a secure and reliable seal between exhaust pipe flanges, helping maintain proper exhaust system function and reduce leaks.

• Compatible with Chevrolet Aveo and Aveo5 exhaust systems
• 3-bolt gasket type with precise bolt hole spacing
• Constructed from fiber and metal laminate with a metal fire ring
• Thickness of 0.058 inches for optimal sealing
• Port dimensions: 2.875 inches length and width
• Bolt hole diameter of 0.5 inches for secure fitment

Detailed Product Specifications

The Walker 31727 exhaust pipe flange gasket features a 3-bolt design with bolt hole center-to-center measurements of 3.625 inches and 3.125 inches, ensuring compatibility with the exhaust flange on Chevrolet Aveo and Aveo5 models. The gasket is made from a durable fiber and metal laminate material combined with a metal fire ring, providing resistance to high temperatures and exhaust gases. The port size measures 2.875 inches in both length and width, matching the exhaust pipe dimensions for a proper seal. With a thickness of 0.058 inches, this gasket maintains a tight seal to prevent exhaust leaks and maintain system integrity.

Applications and Common Issues Addressed

• Sealing exhaust pipe flanges to prevent exhaust leaks
• Reducing noise caused by escaping exhaust gases
• Preventing harmful exhaust fumes from entering the cabin
• Maintaining proper backpressure for engine performance
• Replacing worn or damaged exhaust gaskets on Chevrolet Aveo and Aveo5

Installation Notes and Tips

When installing the Walker 31727 exhaust pipe flange gasket, ensure the mating surfaces are clean and free of debris or old gasket material. Align the gasket carefully with the bolt holes, using the specified bolt hole center-to-center measurements of 3.625 inches and 3.125 inches for proper positioning. Tighten bolts evenly to the manufacturer’s torque specifications to avoid warping or leaks. It is recommended to inspect the exhaust flange for damage before installation and replace any corroded hardware to ensure a secure fit.

Quality Assurance and Warranty

Walker exhaust gaskets are manufactured to meet industry standards for durability and performance. The 31727 gasket is constructed with high-quality fiber and metal laminate materials combined with a metal fire ring to withstand high temperatures and exhaust system conditions. While specific warranty details are not provided, Walker products typically adhere to strict quality control processes to ensure reliable fitment and function for Chevrolet Aveo and Aveo5 exhaust systems.
