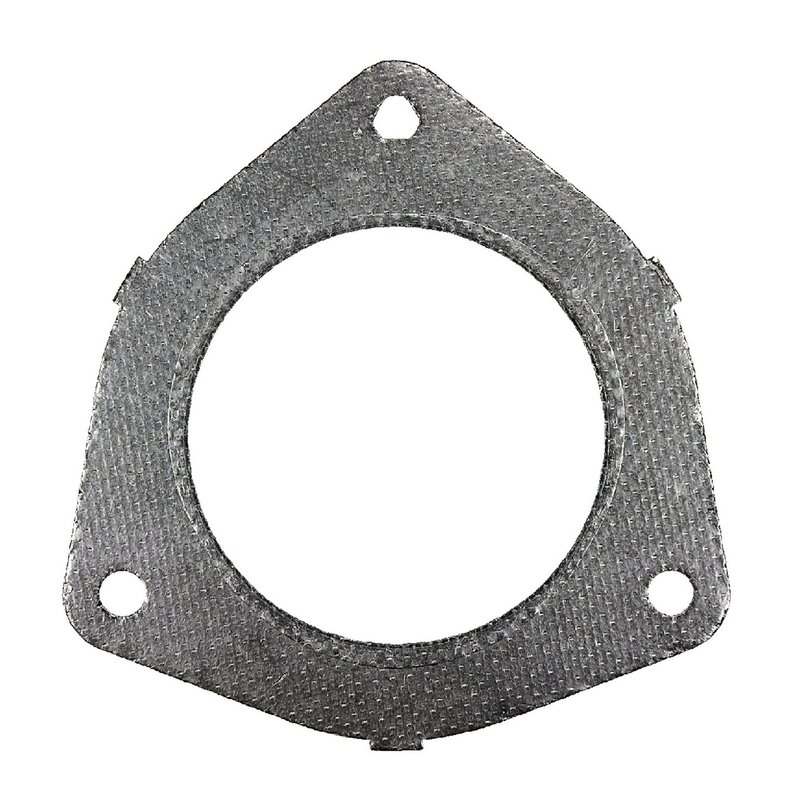

Walker 36496 Exhaust Pipe Flange Gasket - Particulate Filter To Muffler or Particulate Filter To Resonator

Walker Exhaust Pipe Flange Gasket Overview

The Walker 36496 exhaust pipe flange gasket is engineered for reliable sealing in heavy-duty truck exhaust systems. Designed specifically for Chevrolet, Ford, and GMC models, this gasket ensures a secure fit and helps maintain exhaust integrity under demanding conditions.

• Gasket Type: 3 bolt flange design
• Material: Graphoil with steel core and fire ring for durability
• Bolt Hole Center to Center Distance: 6 inches
• Bolt Hole Diameter: 0.5 inches
• Port Dimensions: 4.0 inches length and width
• Thickness: 0.05 inches for optimal sealing

Detailed Product Description

The Walker 36496 exhaust pipe flange gasket features a 3 bolt configuration with bolt holes spaced 6 inches center to center and a diameter of 0.5 inches, designed to match OEM specifications for a precise fit. Constructed from graphoil material reinforced with a steel core and fire ring, this gasket provides excellent resistance to high temperatures and exhaust gases. The 4-inch by 4-inch port size and 0.05-inch thickness ensure a tight seal between exhaust pipe flanges, reducing the risk of leaks and exhaust system damage.

Compatible Vehicles and Applications

This exhaust pipe flange gasket is compatible with a range of heavy-duty trucks, including Chevrolet Silverado 2500 HD and 3500 HD, Ford F-250 Super Duty and F-350 Super Duty, as well as GMC Sierra 2500 HD and 3500 HD models. It is designed to maintain exhaust system integrity in these vehicles, which often operate under high load and temperature conditions.

Common Issues Addressed by Walker 36496 Gasket

• Exhaust leaks caused by worn or damaged flange gaskets
• Noise and fumes resulting from improper exhaust sealing
• Corrosion and heat damage to exhaust flange connections
• Reduced engine performance due to exhaust system leaks
• Failed emissions tests related to exhaust leaks

Installation Notes and Tips

Ensure the exhaust flange surfaces are clean and free of debris before installing the Walker 36496 gasket. Align the gasket carefully with the bolt holes and port dimensions to avoid misalignment. Tighten bolts evenly to the manufacturer’s torque specifications to prevent gasket damage and ensure a proper seal.

Quality Assurance and Warranty

Walker exhaust gaskets are manufactured to meet industry standards for durability and performance. The 36496 gasket is constructed with high-quality graphoil and steel materials to withstand harsh exhaust conditions. While specific warranty details are not provided, Walker products typically adhere to strict quality control processes to ensure reliability in heavy-duty applications.
