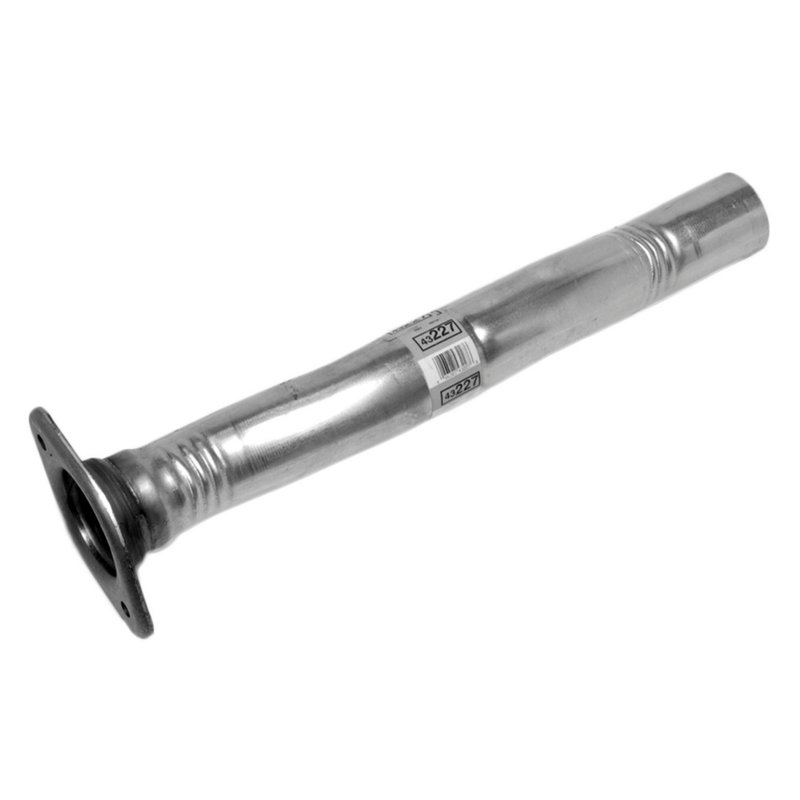

Walker 43227 Exhaust Pipe
Overview of Walker Exhaust Pipe 43227
The Walker 43227 exhaust pipe is designed specifically for Chevrolet and GMC trucks, including C1500, C2500, K1500, and K2500 models. Constructed from durable steel with an aluminized finish, this exhaust pipe offers reliable performance and corrosion resistance for your vehicle's exhaust system.
- Material: Steel with aluminized finish for corrosion resistance
- Length: 23.75 inches
- Inlet and outlet outside diameter: 2.75 inches
- Bend radius: 5.5 inches with compression bend type
- Inlet type: 2 bolt welded flange
- Outlet type: Pipe connection
- Pipe wall thickness: 0.06 inches
- Specific fit for Chevrolet and GMC C1500, C2500, K1500, and K2500
Detailed Product Description
The Walker 43227 exhaust pipe is engineered to meet the exact specifications required for select Chevrolet and GMC truck models. Its steel construction ensures strength and durability, while the aluminized finish provides enhanced resistance to rust and corrosion, extending the service life of the exhaust component. The pipe measures 23.75 inches in length and features a 2.75-inch outside diameter on both inlet and outlet ends, ensuring proper fit and flow within the exhaust system.
The pipe includes a 2 bolt welded flange inlet, which facilitates a secure and leak-free connection to the existing exhaust components. The compression bend with a 5.5-inch radius allows for precise routing to match the vehicle’s exhaust layout. With a pipe wall thickness of 0.06 inches, this exhaust pipe balances durability with weight considerations.
Applications and Problem Solving
- Replacement of damaged or rusted exhaust pipes on Chevrolet and GMC C1500, C2500, K1500, and K2500 trucks
- Restoring proper exhaust flow to reduce backpressure and improve engine efficiency
- Eliminating exhaust leaks caused by cracks or holes in the original pipe
- Maintaining emissions compliance by ensuring a sealed exhaust system
- Supporting overall exhaust system integrity and noise reduction
Installation Notes and Tips
Installation of the Walker 43227 exhaust pipe requires basic mechanical skills and appropriate tools for exhaust system work. The 2 bolt welded flange inlet ensures a straightforward connection to the existing exhaust flange. It is recommended to inspect all gaskets and mounting hardware during installation to ensure a proper seal and fit. Proper alignment of the compression bend is critical to avoid stress on adjoining components.
Quality Assurance and Warranty
Walker exhaust components are manufactured to meet industry standards for fit, form, and function. The aluminized steel construction provides corrosion resistance suitable for typical road conditions. While specific warranty details are not provided, Walker products generally adhere to quality control processes to ensure reliable performance in Chevrolet and GMC truck exhaust systems.
| Brand | Walker |
| Part Number | 43227 |
| Material | Steel |
| Outlet Outside Diameter | 2.75 |
| Inlet Quantity | 1 |
| Outlet Quantity | 1 |
| Bend Radius | 5.5 |
| Bend Type | Compression |
| Finish | Aluminized |
| Inlet 1 Type | 2 bolt welded flange |
| Inlet Type | 2 bolt welded flange |
| Length | 23.75 |
| Outlet 1 Outside Diameter | 2.75 |
| Outlet 1 Type | Pipe connection |
| Outlet Type | Pipe connection |
| Pipe Wall Thickness | 0.06 |
| Universal Or Specific Fit | Specific fit |
This part fits 48 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Wheel Base | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1995 | Chevrolet | C1500 | 4.3L | V6 | 131.5" | N/A | If welded assembly, replace all required parts |
| 1995 | Chevrolet | C1500 | 5.0L | V8 | 131.5" | N/A | If welded assembly, replace all required parts |
| 1995 | Chevrolet | C1500 | 5.7L | V8 | 131.5" | N/A | If welded assembly, replace all required parts |
| 1995 | Chevrolet | C2500 | 5.7L | V8 | 131.5" | N/A | Below 8500 (lb) GVW |
| 1995 | Chevrolet | C2500 | 4.3L | V6 | 131.5" | N/A | Below 8500 (lb) GVW |
| 1995 | Chevrolet | C2500 | 5.0L | V8 | 131.5" | N/A | Below 8500 (lb) GVW |
| 1995 | Chevrolet | K1500 | 5.7L | V8 | 131.5" | N/A | If welded assembly, replace all required parts |
| 1995 | Chevrolet | K1500 | 5.0L | V8 | 131.5" | N/A | If welded assembly, replace all required parts |
| 1995 | Chevrolet | K1500 | 4.3L | V6 | 131.5" | N/A | If welded assembly, replace all required parts |
| 1995 | Chevrolet | K2500 | 5.7L | V8 | 131.5" | N/A | Below 8500 (lb) GVW |
| 1995 | Chevrolet | K2500 | 4.3L | V6 | 131.5" | N/A | Below 8500 (lb) GVW |
| 1995 | Chevrolet | K2500 | 5.0L | V8 | 131.5" | N/A | Below 8500 (lb) GVW |
| 1995 | GMC | C1500 | 5.7L | V8 | 131.5" | N/A | If welded assembly, replace all required parts |
| 1995 | GMC | C1500 | 5.0L | V8 | 131.5" | N/A | If welded assembly, replace all required parts |
| 1995 | GMC | C1500 | 4.3L | V6 | 131.5" | N/A | If welded assembly, replace all required parts |
| 1995 | GMC | C2500 | 5.0L | V8 | 131.5" | N/A | Below 8500 (lb) GVW |
| 1995 | GMC | C2500 | 5.7L | V8 | 131.5" | N/A | Below 8500 (lb) GVW |
| 1995 | GMC | C2500 | 4.3L | V6 | 131.5" | N/A | Below 8500 (lb) GVW |
| 1995 | GMC | K1500 | 4.3L | V6 | 131.5" | N/A | If welded assembly, replace all required parts |
| 1995 | GMC | K1500 | 5.7L | V8 | 131.5" | N/A | If welded assembly, replace all required parts |
| 1995 | GMC | K1500 | 5.0L | V8 | 131.5" | N/A | If welded assembly, replace all required parts |
| 1995 | GMC | K2500 | 5.0L | V8 | 131.5" | N/A | Below 8500 (lb) GVW |
| 1995 | GMC | K2500 | 5.7L | V8 | 131.5" | N/A | Below 8500 (lb) GVW |
| 1995 | GMC | K2500 | 4.3L | V6 | 131.5" | N/A | Below 8500 (lb) GVW |
| 1994 | Chevrolet | C1500 | 4.3L | V6 | 131.5" | N/A | If welded assembly, replace all required parts |
| 1994 | Chevrolet | C1500 | 5.0L | V8 | 131.5" | N/A | If welded assembly, replace all required parts |
| 1994 | Chevrolet | C1500 | 5.7L | V8 | 131.5" | N/A | If welded assembly, replace all required parts |
| 1994 | Chevrolet | C2500 | 5.7L | V8 | 131.5" | N/A | Below 8500 (lb) GVW |
| 1994 | Chevrolet | C2500 | 4.3L | V6 | 131.5" | N/A | Below 8500 (lb) GVW |
| 1994 | Chevrolet | C2500 | 5.0L | V8 | 131.5" | N/A | Below 8500 (lb) GVW |
| 1994 | Chevrolet | K1500 | 5.7L | V8 | 131.5" | N/A | If welded assembly, replace all required parts |
| 1994 | Chevrolet | K1500 | 5.0L | V8 | 131.5" | N/A | If welded assembly, replace all required parts |
| 1994 | Chevrolet | K1500 | 4.3L | V6 | 131.5" | N/A | If welded assembly, replace all required parts |
| 1994 | Chevrolet | K2500 | 5.7L | V8 | 131.5" | N/A | Below 8500 (lb) GVW |
| 1994 | Chevrolet | K2500 | 4.3L | V6 | 131.5" | N/A | Below 8500 (lb) GVW |
| 1994 | Chevrolet | K2500 | 5.0L | V8 | 131.5" | N/A | Below 8500 (lb) GVW |
| 1994 | GMC | C1500 | 5.7L | V8 | 131.5" | N/A | If welded assembly, replace all required parts |
| 1994 | GMC | C1500 | 5.0L | V8 | 131.5" | N/A | If welded assembly, replace all required parts |
| 1994 | GMC | C1500 | 4.3L | V6 | 131.5" | N/A | If welded assembly, replace all required parts |
| 1994 | GMC | C2500 | 5.0L | V8 | 131.5" | N/A | Below 8500 (lb) GVW |
| 1994 | GMC | C2500 | 5.7L | V8 | 131.5" | N/A | Below 8500 (lb) GVW |
| 1994 | GMC | C2500 | 4.3L | V6 | 131.5" | N/A | Below 8500 (lb) GVW |
| 1994 | GMC | K1500 | 4.3L | V6 | 131.5" | N/A | If welded assembly, replace all required parts |
| 1994 | GMC | K1500 | 5.7L | V8 | 131.5" | N/A | If welded assembly, replace all required parts |
| 1994 | GMC | K1500 | 5.0L | V8 | 131.5" | N/A | If welded assembly, replace all required parts |
| 1994 | GMC | K2500 | 5.0L | V8 | 131.5" | N/A | Below 8500 (lb) GVW |
| 1994 | GMC | K2500 | 5.7L | V8 | 131.5" | N/A | Below 8500 (lb) GVW |
| 1994 | GMC | K2500 | 4.3L | V6 | 131.5" | N/A | Below 8500 (lb) GVW |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
