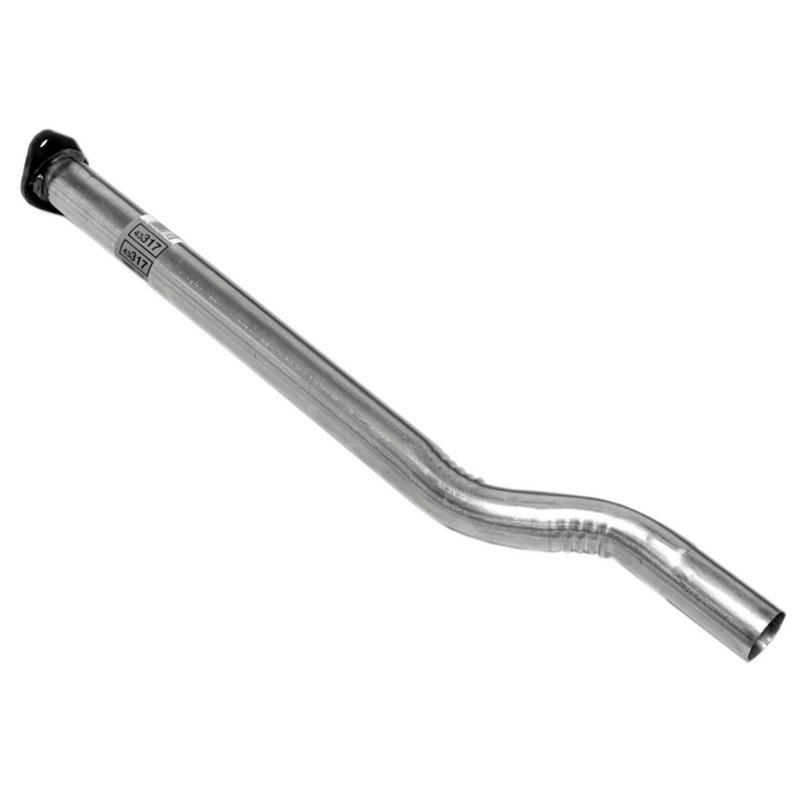

Walker 43317 Exhaust Pipe
Walker 43317 Exhaust Pipe for Toyota Pickup
Walker 43317 is a specific-fit exhaust pipe for select Toyota Pickup applications from 1989-1995. Built from aluminized steel with a 0.05-inch wall thickness, it is formed for a precise fit and straightforward installation in the exhaust system.
- Specific-fit exhaust pipe for select Toyota Pickup models
- Aluminized steel construction for corrosion resistance and durability
- 2-inch inlet and 2-inch outlet outside diameter
- 2-bolt welded flange inlet for direct exhaust connection
- 31.5-inch overall length for the listed application
- Precision-formed using fixture-checked bending for fit accuracy
Application Details
This Walker exhaust pipe is engineered for 1989-1992 Toyota Pickup and 1993-1995 Toyota Pickup applications, with notes for vehicles without California Emission System and for split-system configurations where welded assemblies require replacement of all required parts. If you are searching for a Toyota Pickup exhaust pipe replacement, Walker 43317 provides the correct dimensions and connection style for the listed vehicles.
This part cross-references Dorman - HELP 38462 for the same application.
Common Repair Uses
- Replacing a rusted or damaged exhaust pipe section
- Restoring exhaust flow after flange or pipe connection wear
- Addressing exhaust leaks caused by corrosion or cracking
- Repairing a Toyota Pickup exhaust system with the listed fitment
- Replacing a welded assembly section in split-system configurations
Installation Notes
Verify the vehicle’s emission configuration before installation, especially for 1993-1995 Toyota Pickup models without California Emission System. Confirm inlet and outlet diameters, flange style, and overall length against the existing exhaust routing before assembly. For welded assemblies, replace all required related parts as noted in the fitment data.
Quality Assurance
Walker manufactures this pipe from aluminized steel and uses precision bending plus fixture checks to help ensure consistent fitment for the listed Toyota Pickup applications. Part number 43317 is built as a direct replacement exhaust pipe for the specified vehicles.
| Brand | Walker |
|---|---|
| Part Number | 43317 |
| Material | Steel |
| Outlet Outside Diameter | 2 |
| Inlet Quantity | 1 |
| Outlet Quantity | 1 |
| Finish | Aluminized |
| Inlet 1 Type | 2 bolt welded flange |
| Length | 31.5 |
| Outlet 1 Outside Diameter | 2 |
| Outlet 1 Type | Pipe connection |
| Pipe Wall Thickness | 0.05 |
| Universal Or Specific Fit | Specific fit |
This part fits 7 vehicles. Search below:
| Year | Make | Model | Body Type | Drive Type | Liters | Cylinders | Wheel Base | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 1995 | Toyota | Pickup | Extended Cab Pickup | 4WD | 3.0L | V6 | 121.9" | N/A | without California Emission System; If welded assembly, replace all required parts; Optional Parts for Split System |
| 1994 | Toyota | Pickup | Extended Cab Pickup | 4WD | 3.0L | V6 | 121.5" | N/A | without California Emission System; If welded assembly, replace all required parts; Optional Parts for Split System |
| 1993 | Toyota | Pickup | Extended Cab Pickup | 4WD | 3.0L | V6 | 121.5" | N/A | without California Emission System; If welded assembly, replace all required parts; Optional Parts for Split System |
| 1992 | Toyota | Pickup | Extended Cab Pickup | 4WD | 3.0L | V6 | 121.5" | N/A | If welded assembly, replace all required parts; Optional Parts for Split System |
| 1991 | Toyota | Pickup | Extended Cab Pickup | 4WD | 3.0L | V6 | 121.5" | N/A | If welded assembly, replace all required parts; Optional Parts for Split System |
| 1990 | Toyota | Pickup | Extended Cab Pickup | 4WD | 3.0L | V6 | 121.5" | N/A | If welded assembly, replace all required parts; Optional Parts for Split System |
| 1989 | Toyota | Pickup | Extended Cab Pickup | 4WD | 3.0L | V6 | 121.5" | N/A | If welded assembly, replace all required parts; Optional Parts for Split System |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
