Walker 46823 Exhaust Resonator and Pipe Assembly
OE Quality 60-Day Returns
Walker

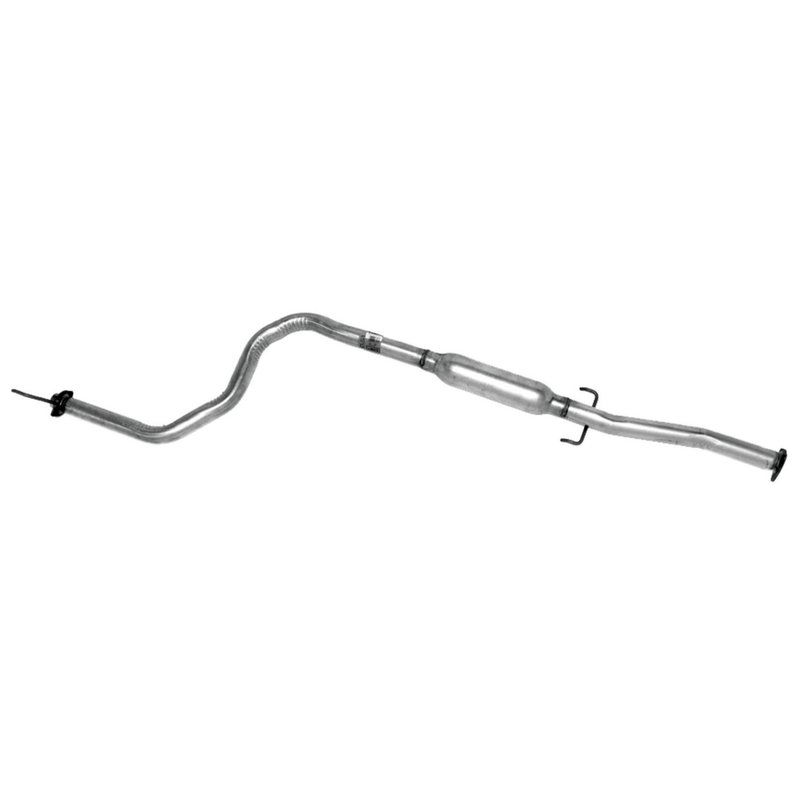

Walker 46823 Exhaust Resonator and Pipe Assembly

Brand Walker 46823
Muffler Body Length 16
Pipe Material Steel
Overall Length 74.875
Body 1 Height 3
Body 1 Length 16
Body 1 Shape Round
Body 1 Width 3
Body Material Steel
Finish Aluminized
Inlet Quantity 1
Inlet Type 3 bolt welded flange
Outlet Quantity 1
Outlet Type 2 bolt welded flange
Fits Honda · 15 vehicles

OE-style sound. Precise tuning helps deliver the original system’s tone and flow.

Steel construction. Body and pipe are made from steel with an aluminized finish.

Flanged connections. Welded 3-bolt inlet and 2-bolt outlet simplify installation.

Cross-references AP Exhaust 78174, BRExhaust 287-127 and BRExhaust 287-529 for the same application. See all 6.

$138.92Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $138.92
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Exhaust Resonator and Pipe Assembly options

Walker 46823 Exhaust Resonator and Pipe Assembly

Walker 46823 is an exhaust resonator and pipe assembly built for OE-style fit, flow, and sound control. It is engineered for 1992-1995 Honda Civic applications, including 1994 Civic with Canada emissions and 1992-1994 Civic without Canada emissions, with an air gap pipe design that uses the space between pipes as a heat insulator.

Key Features

  • Part number: 46823
  • Designed for 1992-1995 Honda Civic, with application-specific notes for Canada emissions and non-Canada emissions
  • Steel pipe material and steel body construction
  • Aluminized finish for added corrosion resistance
  • Round resonator body with 16-inch body length
  • Overall length: 74.875 inches
  • 1 inlet with 3-bolt welded flange
  • 1 outlet with 2-bolt welded flange
  • Walker tuning technology for OE-style sound and flow characteristics

Product Details

This Walker resonator and pipe assembly is built to match the original exhaust system’s fit and acoustic profile as closely as possible. The air gap pipe construction adds a thermal barrier between pipe sections, helping manage exhaust heat while maintaining the intended routing and connection style for Honda Civic exhaust service. If you are replacing a worn resonator assembly on a 1992-1995 Honda Civic, Walker 46823 provides a direct-fit service part with the correct flange configuration and dimensions for the listed applications.

This part cross-references AP Exhaust 78174 for the same application.

Common Problems This Part Can Address

  • Exhaust noise from a damaged or rusted resonator assembly
  • Leaks at worn flange connections
  • Corrosion in the original steel exhaust pipe section
  • Heat-related deterioration in the exhaust routing area
  • Fitment issues caused by a previous non-OE-style replacement

Installation Notes and Tips

Verify the vehicle’s emissions configuration before ordering, since this assembly is listed for 1994 Honda Civic with Canada emissions and 1992-1994 Honda Civic without Canada emissions. Confirm flange style, overall length, and routing against the original part before installation. Because this is an exhaust resonator and pipe assembly, proper alignment of the welded flanges is important for sealing and hanger positioning.

Quality Assurance

Walker designs this resonator to fit, perform, and sound like the original system, using tuning methods aimed at consistent flow and OE-style exhaust tone. Part number 46823 is built with steel construction and an aluminized finish to support long-term service in exhaust applications.

Related reading

This part fits 15 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelBody Type# DoorsTransmissionLitersCylindersNotes
1995HondaCivicDXSedan——1.5LL4Air Gap Pipe; Air Space Between Pipes Acts as a Heat Insulator; Appearance may be different than OE Pipe
1995HondaCivicLXSedan——1.5LL4Air Gap Pipe; Air Space Between Pipes Acts as a Heat Insulator; Appearance may be different than OE Pipe
1995HondaCivicDXCoupe2 Door—1.5LL4Air Gap Pipe; Air Space Between Pipes Acts as a Heat Insulator; Appearance may be different than OE Pipe
1994HondaCivicDXSedan——1.5LL4Air Gap Pipe; Air Space Between Pipes Acts as a Heat Insulator; Appearance may be different than OE Pipe
1994HondaCivicLXSedan——1.5LL4Air Gap Pipe; Air Space Between Pipes Acts as a Heat Insulator; Appearance may be different than OE Pipe
1994HondaCivic—Coupe2 Door—1.6LL4Air Gap Pipe; Air Space Between Pipes Acts as a Heat Insulator; Appearance may be different than OE Pipe; with Canada Emissions
1994HondaCivicEX———1.6LL4Air Gap Pipe; Air Space Between Pipes Acts as a Heat Insulator; Appearance may be different than OE Pipe; without Canada Emissions
1994HondaCivicDXCoupe2 Door—1.5LL4Air Gap Pipe; Air Space Between Pipes Acts as a Heat Insulator; Appearance may be different than OE Pipe
1993HondaCivicLXSedan—Automatic1.5LL4Air Gap Pipe; Air Space Between Pipes Acts as a Heat Insulator; Appearance may be different than OE Pipe
1993HondaCivicDXSedan—Automatic1.5LL4Air Gap Pipe; Air Space Between Pipes Acts as a Heat Insulator; Appearance may be different than OE Pipe
1993HondaCivicEX———1.6LL4Air Gap Pipe; Air Space Between Pipes Acts as a Heat Insulator; Appearance may be different than OE Pipe; without Canada Emissions
1993HondaCivicDXCoupe2 DoorAutomatic1.5LL4Air Gap Pipe; Air Space Between Pipes Acts as a Heat Insulator; Appearance may be different than OE Pipe
1992HondaCivicLXSedan—Automatic1.5LL4Air Gap Pipe; Air Space Between Pipes Acts as a Heat Insulator; Appearance may be different than OE Pipe
1992HondaCivicDXSedan—Automatic1.5LL4Air Gap Pipe; Air Space Between Pipes Acts as a Heat Insulator; Appearance may be different than OE Pipe
1992HondaCivicEX———1.6LL4Air Gap Pipe; Air Space Between Pipes Acts as a Heat Insulator; Appearance may be different than OE Pipe; without Canada Emissions
Directly replaces or cross-references 6 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
AP Exhaust — 78174BRExhaust — 287-127BRExhaust — 287-529BRExhaust — VFM-17317817178173
