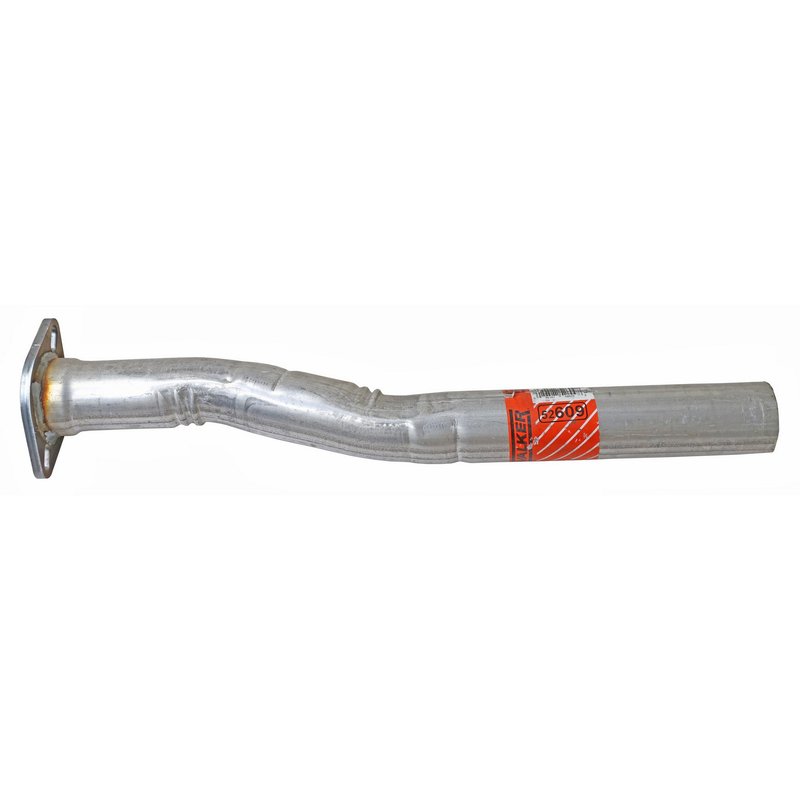

Walker 52609 Exhaust Pipe - Rear
| Brand | Walker 52609 |
|---|---|
| Position | Rear |
| Material | Steel |
| Inlet Outside Diameter | 2.5 |
| Outlet Outside Diameter | 2.25 |
| Inlet Quantity | 1 |
| Outlet Quantity | 1 |
| Bend Radius | 4.5 |
| Bend Type | Compression |
| Finish | Aluminized |
| Inlet 1 Outside Diameter | 2.5 |
| Inlet 1 Type | 2 bolt welded flange |
| Inlet Type | 2 bolt welded flange |
| Length | 23.25 |
| Outlet 1 Outside Diameter | 2.25 |
| Outlet 1 Type | Pipe connection |
| Outlet Type | Pipe connection |
| Pipe Wall Thickness | 0.05 |
| Universal Or Specific Fit | Specific fit |
| Fits | Toyota · 6 vehicles |
Specific fit. Precision-checked for a precise fit and quick, easy installation.
Aluminized steel. Built for durability with a corrosion-resistant finish.
Exhaust pipe. A premium pipe for exhaust and tail pipe applications.
Cross-references Four Seasons 54985, Gates 22272 and 60009 for the same application. See all 3.
Walker 52609 Exhaust Pipe for Toyota Highlander
Walker 52609 is a specific-fit exhaust pipe built for rear applications on select Toyota Highlander models. It uses aluminized steel construction and precision-formed bends to support a direct-fit replacement with accurate alignment for the exhaust system.
Key Features
- Specific-fit exhaust pipe for rear installation
- Fits 2017-2019 Toyota Highlander, rear
- Fits 2014-2016 Toyota Highlander, rear
- 2.5-inch inlet outside diameter with 2-bolt welded flange
- 2.25-inch outlet outside diameter with pipe connection
- 23.25-inch overall length
- Compression bend with 4.5-inch bend radius
- Aluminized finish over steel construction for corrosion resistance
- 0.05-inch pipe wall thickness
Detailed Description
This Walker exhaust pipe, part number 52609, is engineered for rear exhaust service on the Toyota Highlander. The pipe is formed from aluminized steel and checked in fixtures to help maintain the correct shape and fit, which supports a cleaner replacement process when servicing the exhaust path on 2014-2016 Toyota Highlander and 2017-2019 Toyota Highlander models. This part cross-references Gates 22272 for the same application.
Common Repair Uses
- Replacing a rusted or damaged rear exhaust pipe
- Restoring exhaust flow after pipe separation or cracking
- Repairing flange or connection wear at the rear section
- Addressing exhaust leaks in the rear exhaust path
- Returning the Toyota Highlander exhaust system to proper routing
Installation Notes and Tips
Verify inlet and outlet diameters, flange style, and rear position before installation. This Walker 52609 exhaust pipe is a specific-fit part, so matching the vehicle year range and exhaust configuration is important for proper alignment. If the vehicle uses a welded assembly, replace all required related parts as noted for 2014-2016 Toyota Highlander applications.
Quality Assurance
Walker manufactures this pipe with precision bending equipment and fixture checks to help ensure consistent fitment. The aluminized steel construction is selected for durability in exhaust service.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2019 | Toyota | Highlander | 3.5L | V6 | GAS | Rear | — |
| 2018 | Toyota | Highlander | 3.5L | V6 | GAS | Rear | — |
| 2017 | Toyota | Highlander | 3.5L | V6 | GAS | Rear | — |
| 2016 | Toyota | Highlander | 3.5L | V6 | GAS | Rear | If welded assembly, replace all required parts |
| 2015 | Toyota | Highlander | 3.5L | V6 | GAS | Rear | If welded assembly, replace all required parts |
| 2014 | Toyota | Highlander | 3.5L | V6 | GAS | Rear | If welded assembly, replace all required parts |
