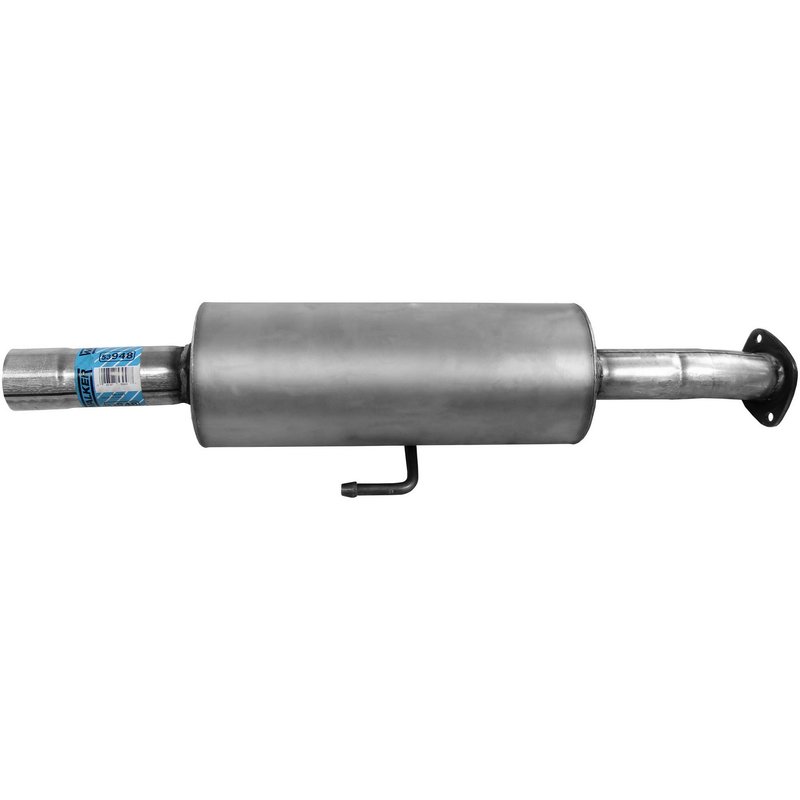

Walker 53948 Exhaust Resonator and Pipe Assembly

Walker 53948 Exhaust Resonator Assembly

Walker 53948 is an exhaust resonator and pipe assembly built to match the original system’s fit, flow, and sound profile. It uses a 2.5-inch inlet, a 2-bolt welded flange outlet, and aluminized steel construction for a direct replacement on select Toyota Avalon and Toyota Camry applications.

Key Features

• Part number 53948 for select Toyota exhaust applications
• 2.5-inch inlet inside diameter with pipe connection inlet
• 2-bolt welded flange outlet for OE-style attachment
• Steel pipe and steel body construction
• Aluminized finish for added corrosion resistance
• Round resonator body measuring 16 inches long and 6 inches high
• Overall length: 34.75 inches

Fitment Details

• Fits 2017 Toyota Avalon, N/A; to 06/2017; if welded assembly, replace all required parts
• Fits 2013-2016 Toyota Avalon, N/A; if welded assembly, replace all required parts
• Fits 2012-2017 Toyota Camry, N/A; if welded assembly, replace all required parts

This Walker resonator assembly is engineered to follow OE-style tuning principles, helping maintain the original exhaust tone while supporting smooth exhaust flow. If you are replacing a worn or damaged resonator on a Toyota Avalon or Toyota Camry, part number 53948 provides a direct-fit style solution with the correct flange and pipe configuration for the listed vehicles.

What It Helps Address

• Exhaust noise from a damaged or rusted resonator
• Rattling or leaking exhaust sections at the resonator area
• Loss of factory-style exhaust tone after corrosion or impact damage
• Fitment issues when replacing a welded resonator assembly
• Restricted exhaust flow caused by a deteriorated pipe section

Installation Notes

Verify the vehicle’s exhaust configuration before ordering, especially on welded assembly applications. For the listed Toyota Avalon and Toyota Camry fitments, replace all required parts if the original assembly is welded. Confirm inlet diameter, flange style, and overall length against the existing exhaust before installation.

Quality Assurance

Walker designs this resonator to fit, perform, and sound like the original system, using precise tuning methods to support OE-style exhaust characteristics. Part number 53948 is built with steel construction and an aluminized finish for dependable replacement use.

This part cross-references Four Seasons (e.g., 54907) for the same application.
