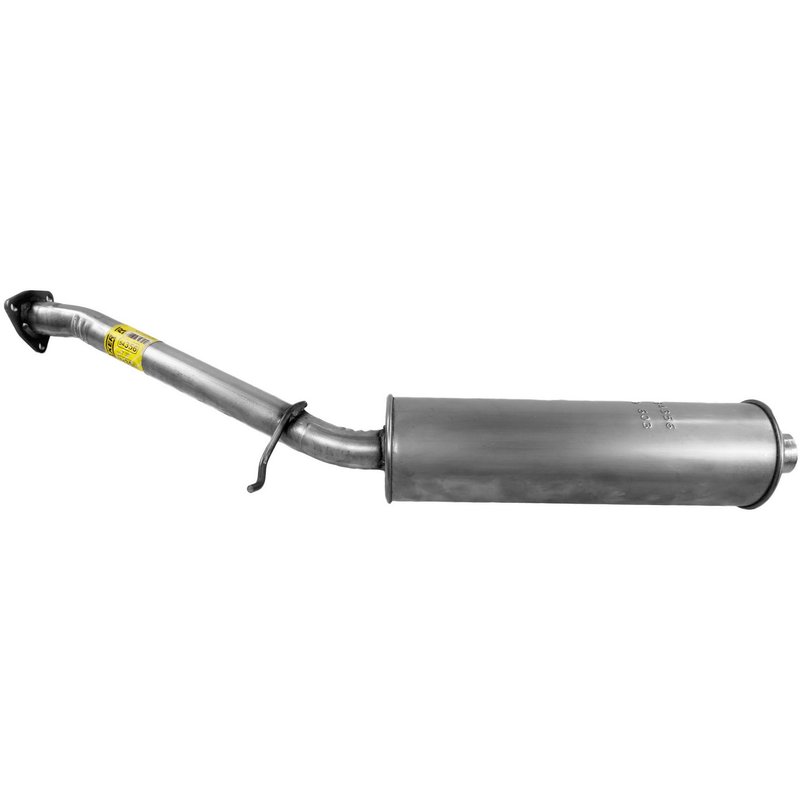

Walker 54356 Exhaust Resonator and Pipe Assembly

Walker 54356 Exhaust Resonator and Pipe Assembly

Walker 54356 is an exhaust resonator and pipe assembly built for OE-style fit, flow, and sound control. It is engineered with aluminized steel construction and a 3-bolt welded flange inlet to match the original exhaust layout on select Honda Odyssey applications.

Compatible with 1999-2001 Honda Odyssey exhaust repair needs, this Walker resonator assembly is a direct-fit solution for restoring factory-like exhaust tone and routing. Walker 54356 is also referenced by cross numbers used in the same application, including Walker Exhaust 48328.

Key Features

• Part type: exhaust resonator and pipe assembly
• Outlet outside diameter: 2 in.
• Overall length: 40.75 in.
• Muffler body length: 18 in.
• Body dimensions: 5 in. height, 5 in. width, 18 in. length
• Steel pipe and steel body construction
• Aluminized finish for corrosion resistance
• 1 inlet with 3-bolt welded flange
• 1 outlet with pipe connection

Detailed Description

Walker 54356 is designed for drivers who need a replacement exhaust resonator and pipe assembly that follows the original system layout. The tuned resonator design supports OE-style sound characteristics while maintaining the flow profile expected from the factory exhaust. For 1999-2001 Honda Odyssey models, this part number 54356 provides a direct replacement path for restoring the exhaust section without changing the vehicle’s original routing.

This assembly uses steel construction with an aluminized finish to help withstand everyday exhaust exposure. The 3-bolt welded flange inlet and pipe outlet configuration are important details for matching the factory connection style on the Honda Odyssey exhaust system. If you are searching for a 1999 Honda Odyssey exhaust resonator pipe assembly, a 2000 Honda Odyssey resonator replacement, or a 2001 Honda Odyssey exhaust pipe assembly, Walker 54356 is built for that application.

This part cross-references Walker Exhaust 48328 for the same application.

What It Helps Address

• Exhaust noise that no longer matches factory sound levels
• Damaged or rusted resonator and pipe sections
• Exhaust leaks at the resonator or flange connection
• Incorrect exhaust routing after prior repairs
• Need for an OE-style replacement on Honda Odyssey exhaust systems

Installation Notes and Tips

Verify flange style, outlet diameter, and overall length before installation. This Walker 54356 assembly is intended for 1999-2001 Honda Odyssey applications, and the notes indicate that if the welded assembly is being replaced, all required parts should be replaced as needed to complete the repair. Confirm the exhaust hangers, mating surfaces, and adjoining pipe condition before final assembly.

Quality Assurance

Walker designs this resonator assembly to fit, perform, and sound like the original system, using tuning methods aimed at OE-style exhaust flow and sound control. The aluminized steel construction supports long-term service in exhaust environments.
