Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

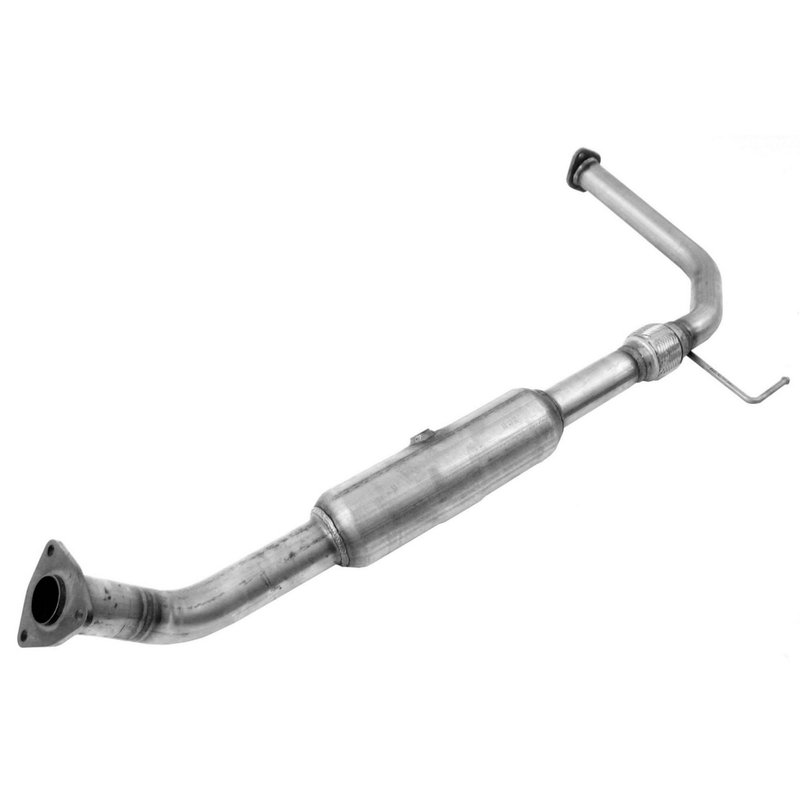

Walker 54705 Catalytic Converter - Left
| Brand | Walker 54705 |
|---|---|
| Position | Left |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Body Shape | Round |
| Body Height | 4.125 |
| Body Length | 14 |
| Body Width | 4.125 |
| Inlet Quantity | 1 |
| Body Material | Stainless steel |
| Outlet Quantity | 1 |
| California Air Resources Board (CARB) Certified | No |
| Overall Length | 43.5 |
| Oxygen Sensor Location | Midbed |
| Air Tube | No |
| Air Tube Count | No |
| Body Height | 4.125 |
| Body Length | 14.000 |
| Body Material | Stainless steel |
| Body Shape | Round |
| Body Width | 4.125 |
| Converter Quantity | 1 |
| Fitment | Direct fit |
| Inlet 1 Type | 3 bolt welded flange |
| Inlet Connection Type | 3 bolt welded flange |
| Inlet Count | 1 |
| Inlet Type | 3 bolt welded flange |
| Max Year Covered | 2006 |
| Min Year Covered | 2005 |
| Most Popular Make / Model | Toyota tundra |
| Most Popular Year | 2006 |
| Product line | EPA |
| Fits | Toyota · 2 vehicles |
Direct-fit replacement. Installs with a specific fit for straightforward replacement.
Stainless steel body. Helps resist corrosion for long-term exhaust durability.
Ceramic substrate. Supports efficient catalytic performance and emissions control.
Cross-references Anchor 9165, Dorman - HELP 93398 and 099-1659 for the same application. See all 6.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Walker EPA Direct-Fit Catalytic Converter
Walker EPA 54705 is a direct-fit catalytic converter built for specific applications on 2005-2006 Toyota Tundra, left side. It is designed for OBDII-equipped vehicles and uses a stainless steel body with a ceramic substrate for EPA-compliant exhaust treatment.
Key Features
- Direct-fit replacement for specific 2005-2006 Toyota Tundra applications
- EPA-compliant design for federal emissions applications
- Stainless steel body with ceramic substrate
- 3-bolt welded flange inlet and 2-bolt welded flange outlet
- Midbed oxygen sensor location
- Round body design with 43.5-inch overall length
- Fits left-side placement on listed vehicles
Product Details
Walker EPA 54705 is part of the Walker Ultra Direct-Fit Catalytic Converter line, which focuses on direct replacement fitment for import and domestic OBDII vehicles. This converter is configured for the 2005-2006 Toyota Tundra, left side, and follows the listed inlet and outlet flange design for a direct installation path. The unit uses a stainless steel housing and ceramic substrate to match the required exhaust flow and emissions function for the application. This part cross-references Dorman - HELP 93398 for the same application.
What This Converter Helps Address
- Check engine light concerns related to catalytic converter efficiency
- Failed emissions testing on the listed Toyota Tundra applications
- Restricted exhaust flow caused by a worn or damaged converter
- Exhaust leaks at the converter connection points
- Replacement needs for a rusted or deteriorated factory converter
Installation Notes
Fits 2005-2006 Toyota Tundra, left. Exhaust gasket is recommended, and additional parts are needed to complete installation: 2 of 31332. Verify federal emissions requirements before installation; this converter is not legal for sale or use in California and other CARB-compliant states. It is legal in New York and Maine on EPA Federal Emission Equipped Vehicles only. Confirm the inlet and outlet flange style, oxygen sensor location, and overall length before installation.
Quality Assurance
Walker EPA converters are built to meet EPA standards for the listed application and are engineered for direct-fit replacement on specific OBDII vehicles. Part number 54705 is intended for federal emissions use on the confirmed fitment listed above.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2006 | Toyota | Tundra | 4.7L | V8 | Left | Fits Fed. & Calif. Emission Models; Not legal for sale or use in California and other CARB-compliant states. Legal in New York and Maine on EPA Federal Emission Equipped Vehicles only. Consult the aftermarket converter regulations in your state for details.; Exhaust Gasket is Recommended; Additional Part(s) Needed To Complete Installation: 2 of 31332; Ultra Direct Fit Type; EPA |
| 2005 | Toyota | Tundra | 4.7L | V8 | Left | Fits Fed. & Calif. Emission Models; Not legal for sale or use in California and other CARB-compliant states. Legal in New York and Maine on EPA Federal Emission Equipped Vehicles only. Consult the aftermarket converter regulations in your state for details.; Exhaust Gasket is Recommended; Additional Part(s) Needed To Complete Installation: 2 of 31332; Ultra Direct Fit Type; EPA |
