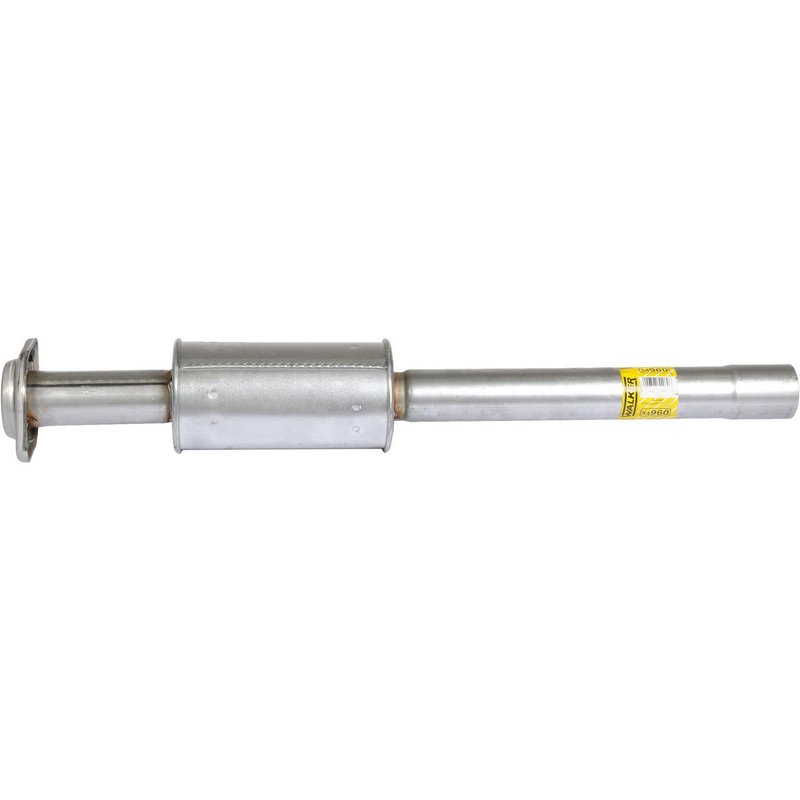

Walker 54960 Exhaust Resonator and Pipe Assembly
Walker 54960 Exhaust Resonator and Pipe Assembly
Walker 54960 is an aluminized steel exhaust resonator and pipe assembly built to match OE-style fit, sound, and flow characteristics. It is engineered for 2015-2020 Ford F-150 applications and supports a direct replacement path for trucks that need a factory-style exhaust repair.
- Fits 2015-2020 Ford F-150, N/A
- Designed for OE-style sound and tuned exhaust flow
- Aluminized steel body and pipe construction
- Round resonator body with a 10-inch body length
- 2-bolt welded flange inlet and pipe connection outlet
- 2.5-inch outlet inside diameter
- 37-inch overall length for application-specific exhaust routing
Built for OE-Style Replacement
This Walker 54960 resonator and pipe assembly is shaped and tuned to follow original-system behavior, helping restore the exhaust tone and flow expected on the Ford F-150. The steel construction and aluminized finish provide a serviceable replacement option for corrosion-prone factory exhaust sections, while the round resonator body supports controlled exhaust sound. This part cross-references AP Exhaust 58578 for the same application.
What This Part Helps Address
- Exhaust resonance or unwanted drone from a worn factory resonator
- Rust damage in the resonator or connected pipe section
- Cracked or leaking welded exhaust joints
- Factory exhaust tone that no longer matches OE sound characteristics
- Fitment issues when replacing a damaged exhaust resonator assembly on a Ford F-150
Installation Notes and Tips
Compatible With 2015-2020 Ford F-150, N/A. Verify flange style, outlet diameter, and overall length against the original exhaust section before installation. For welded assemblies, replace all required parts in the affected section to ensure proper alignment and sealing. Professional exhaust installation is recommended for accurate fitment and leak-free operation.
Quality Assurance
Walker designs this resonator and pipe assembly to fit, perform, and sound like the original system, using precise tuning methods to support OE-style exhaust characteristics. Walker 54960 is built as a direct-fit replacement for the specified Ford F-150 applications.
| Brand | Walker |
|---|---|
| Part Number | 54960 |
| Muffler Body Length | 10 |
| Pipe Material | Steel |
| Outlet Inside Diameter | 2.5 |
| Overall Length | 37 |
| Body 1 Height | 5 |
| Body 1 Length | 10 |
| Body 1 Shape | Round |
| Body 1 Width | 5 |
| Body Material | Steel |
| Finish | Aluminized |
| Inlet Quantity | 1 |
| Inlet Type | 2 bolt welded flange |
| Outlet Quantity | 1 |
| Outlet Type | Pipe connection |
This part fits 46 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Wheel Base | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2020 | Ford | F-150 | 2.7L | V6 | 141.0" | N/A | |
| 2019 | Ford | F-150 | 2.7L | V6 | 163.0" | N/A | If welded assembly, replace all required parts |
| 2019 | Ford | F-150 | 3.5L | V6 | 163.0" | N/A | If welded assembly, replace all required parts |
| 2019 | Ford | F-150 | 5.0L | V8 | 163.0" | N/A | If welded assembly, replace all required parts |
| 2019 | Ford | F-150 | 5.0L | V8 | 157.0" | N/A | If welded assembly, replace all required parts |
| 2019 | Ford | F-150 | 2.7L | V6 | 157.0" | N/A | If welded assembly, replace all required parts |
| 2019 | Ford | F-150 | 3.5L | V6 | 157.0" | N/A | If welded assembly, replace all required parts |
| 2019 | Ford | F-150 | 5.0L | V8 | 141.0" | N/A | |
| 2019 | Ford | F-150 | 2.7L | V6 | 141.0" | N/A | |
| 2019 | Ford | F-150 | 3.5L | V6 | 141.0" | N/A | |
| 2018 | Ford | F-150 | 2.7L | V6 | 163.0" | N/A | If welded assembly, replace all required parts |
| 2018 | Ford | F-150 | 3.5L | V6 | 163.0" | N/A | If welded assembly, replace all required parts |
| 2018 | Ford | F-150 | 5.0L | V8 | 163.0" | N/A | If welded assembly, replace all required parts |
| 2018 | Ford | F-150 | 5.0L | V8 | 157.0" | N/A | If welded assembly, replace all required parts |
| 2018 | Ford | F-150 | 2.7L | V6 | 157.0" | N/A | If welded assembly, replace all required parts |
| 2018 | Ford | F-150 | 3.5L | V6 | 157.0" | N/A | If welded assembly, replace all required parts |
| 2018 | Ford | F-150 | 5.0L | V8 | 141.0" | N/A | |
| 2018 | Ford | F-150 | 2.7L | V6 | 141.0" | N/A | |
| 2018 | Ford | F-150 | 3.5L | V6 | 141.0" | N/A | |
| 2017 | Ford | F-150 | 2.7L | V6 | 163.0" | N/A | If welded assembly, replace all required parts |
| 2017 | Ford | F-150 | 3.5L | V6 | 163.0" | N/A | If welded assembly, replace all required parts |
| 2017 | Ford | F-150 | 5.0L | V8 | 163.0" | N/A | If welded assembly, replace all required parts |
| 2017 | Ford | F-150 | 5.0L | V8 | 157.0" | N/A | If welded assembly, replace all required parts |
| 2017 | Ford | F-150 | 2.7L | V6 | 157.0" | N/A | If welded assembly, replace all required parts |
| 2017 | Ford | F-150 | 3.5L | V6 | 157.0" | N/A | If welded assembly, replace all required parts |
| 2017 | Ford | F-150 | 5.0L | V8 | 141.0" | N/A | |
| 2017 | Ford | F-150 | 2.7L | V6 | 141.0" | N/A | |
| 2017 | Ford | F-150 | 3.5L | V6 | 141.0" | N/A | |
| 2016 | Ford | F-150 | 2.7L | V6 | 163.0" | N/A | If welded assembly, replace all required parts |
| 2016 | Ford | F-150 | 3.5L | V6 | 163.0" | N/A | If welded assembly, replace all required parts |
| 2016 | Ford | F-150 | 5.0L | V8 | 163.0" | N/A | If welded assembly, replace all required parts |
| 2016 | Ford | F-150 | 5.0L | V8 | 157.0" | N/A | If welded assembly, replace all required parts |
| 2016 | Ford | F-150 | 2.7L | V6 | 157.0" | N/A | If welded assembly, replace all required parts |
| 2016 | Ford | F-150 | 3.5L | V6 | 157.0" | N/A | If welded assembly, replace all required parts |
| 2016 | Ford | F-150 | 5.0L | V8 | 141.0" | N/A | |
| 2016 | Ford | F-150 | 2.7L | V6 | 141.0" | N/A | |
| 2016 | Ford | F-150 | 3.5L | V6 | 141.0" | N/A | |
| 2015 | Ford | F-150 | 2.7L | V6 | 163.0" | N/A | If welded assembly, replace all required parts |
| 2015 | Ford | F-150 | 3.5L | V6 | 163.0" | N/A | If welded assembly, replace all required parts |
| 2015 | Ford | F-150 | 5.0L | V8 | 163.0" | N/A | If welded assembly, replace all required parts |
| 2015 | Ford | F-150 | 5.0L | V8 | 157.0" | N/A | If welded assembly, replace all required parts |
| 2015 | Ford | F-150 | 2.7L | V6 | 157.0" | N/A | If welded assembly, replace all required parts |
| 2015 | Ford | F-150 | 3.5L | V6 | 157.0" | N/A | If welded assembly, replace all required parts |
| 2015 | Ford | F-150 | 5.0L | V8 | 141.0" | N/A | |
| 2015 | Ford | F-150 | 2.7L | V6 | 141.0" | N/A | |
| 2015 | Ford | F-150 | 3.5L | V6 | 141.0" | N/A |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
