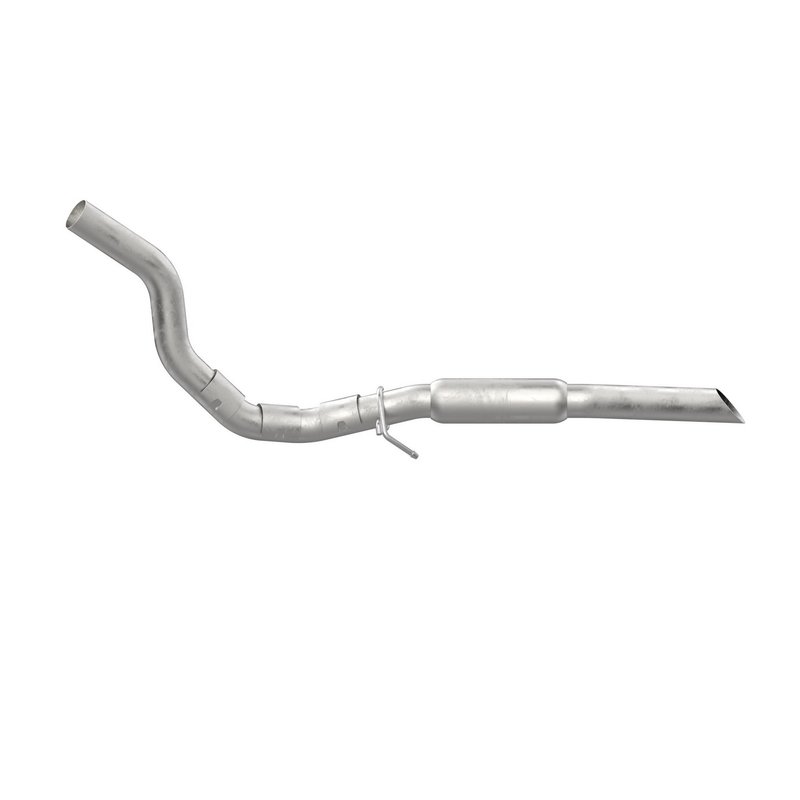

Walker 55982 Exhaust Resonator and Pipe Assembly
| Brand | Walker 55982 |
|---|---|
| Inlet Outside Diameter | 3.000 |
| Outlet Outside Diameter | 3.000 |
| Length | 62.570 |
| Tapered Outlet | No |
| Mounting Hardware Included | No |
| Shape | Round |
| Grade Type | Premium |
| Body Height | 4.000 |
| Body Length | 12.000 |
| Body Width | 4.000 |
| Hanger Included | Yes |
| Body Material | Steel |
| Hanger Type | Welded |
| Heat Shield Attached | Yes |
| Inlet Configuration | Pipe connection |
| Inlet Quantity | 1 |
| Outlet Configuration | Tailpipe |
| Outlet Quantity | 1 |
| Pipe Diameter | 3.000 |
| Reversible | No |
| Tunable | No |
| Universal Or Specific Fit | Specific |
| Fits | Ram · 10 vehicles |
OE-style sound. Welded resonator assembly tuned for the original system's tone.
Precise flow tuning. Engineered to deliver excellent exhaust flow characteristics.
Steel construction. Premium body with a welded hanger and attached heat shield.
Cross-references 68143580AD for the same application. See all 1.
Walker 55982 Exhaust Resonator Assembly
Walker 55982 is a welded exhaust resonator and pipe assembly built for specific-fit replacement on select Ram heavy-duty trucks. It is engineered to match original-system fit, flow, and OE-style sound for 2014-2018 Ram 2500 and 2014-2018 Ram 3500 applications.
- Specific fit for 2014-2018 Ram 2500 and 2014-2018 Ram 3500
- 3.000-inch inlet outside diameter and 3.000-inch outlet outside diameter
- 62.570-inch overall length with round body design
- Steel body construction with welded hanger
- Heat shield attached for added thermal protection
- Pipe connection inlet and tailpipe outlet configuration
- Premium grade type for OE-style replacement service
OE-Style Fit and Sound
This Walker resonator assembly is tuned to deliver the flow characteristics and sound profile expected from the original exhaust system. The welded construction, 3-inch pipe diameter, and specific-fit layout make Walker 55982 a direct replacement choice for Ram 2500 and Ram 3500 owners replacing a worn or damaged resonator section. This part cross-references Mopar 68143580AD for the same application.
Common Reasons for Replacement
- Exhaust resonance or drone from a damaged resonator
- Rust, corrosion, or physical damage to the original pipe assembly
- Exhaust leaks at the resonator or pipe connection
- Reduced exhaust flow from a restricted or failing assembly
- Fitment issues after prior exhaust repairs on Ram 2500 or Ram 3500 trucks
Installation Notes
Walker 55982 is a specific-fit exhaust resonator and pipe assembly for 2014-2018 Ram 2500 and 2014-2018 Ram 3500 models. Verify the 3.000-inch inlet and outlet dimensions, overall length, and tailpipe outlet configuration before installation. Mounting hardware is not included, and the assembly is not reversible or tunable.
Quality Assurance
Walker designs this welded resonator assembly to follow original-system fitment and sound targets using precise tuning methods. The steel body, attached heat shield, and welded hanger support consistent OE-style replacement performance for Ram 2500 and Ram 3500 exhaust service.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2018 | Ram | 2500 | 5.7L | V8 | — |
| 2018 | Ram | 3500 | 5.7L | V8 | — |
| 2017 | Ram | 2500 | 5.7L | V8 | — |
| 2017 | Ram | 3500 | 5.7L | V8 | — |
| 2016 | Ram | 2500 | 5.7L | V8 | — |
| 2016 | Ram | 3500 | 5.7L | V8 | — |
| 2015 | Ram | 2500 | 5.7L | V8 | — |
| 2015 | Ram | 3500 | 5.7L | V8 | — |
| 2014 | Ram | 2500 | 5.7L | V8 | — |
| 2014 | Ram | 3500 | 5.7L | V8 | — |
