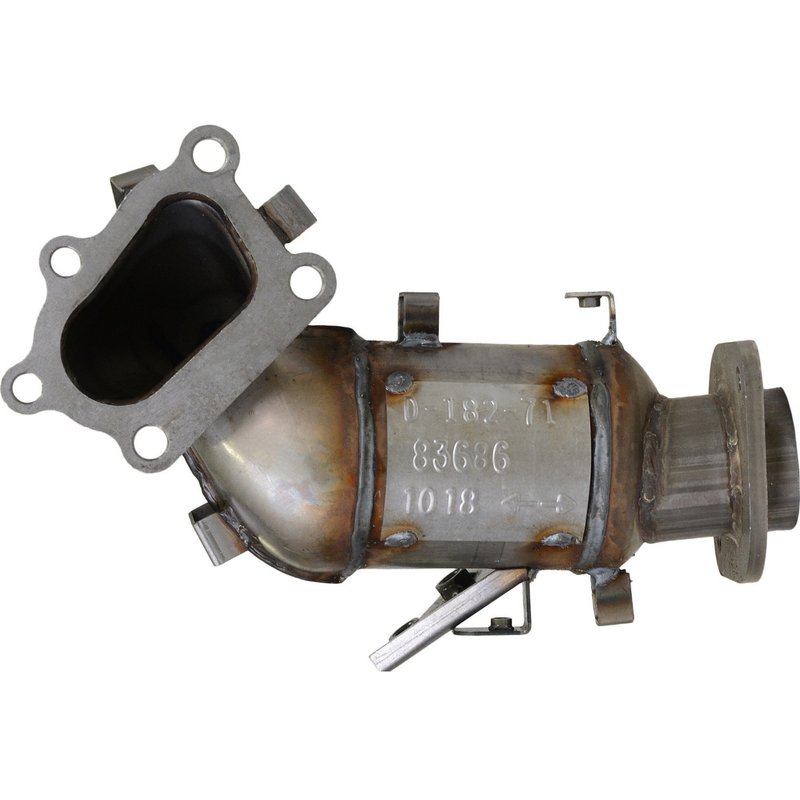

Walker 83686 Catalytic Converter - Front

CARB-Compliant Direct-Fit Converter

Walker CalCat 83686 is a direct-fit catalytic converter built for specific Mazda CX-7 front applications from 2007-2012. It is CARB certified and engineered to deliver an OE-style fit for vehicles that require a California-compliant replacement converter.

Walker CalCat is the brand line for direct-fit catalytic converters designed for OBDII and non-OBD vehicles, with a focus on precise fitment and emissions compliance. For this application, the Walker 83686 is built around a stainless steel body, ceramic substrate, and welded flange connections for a factory-style installation path.

• CARB certified for use in California and other states that require CARB-compliant replacement converters
• Specific fit for Mazda CX-7 front applications
• Stainless steel body with ceramic substrate
• 5-bolt welded flange inlet and 2-bolt welded flange outlet
• Round body design with OE-style dimensions
• Pre-catalyst oxygen sensor location
• Direct-fit design for 2007-2012 Mazda CX-7 front placement

Detailed Product Overview

This catalytic converter is designed for the front position on the Mazda CX-7 and covers model years 2007 through 2012. The Walker 83686 uses a ceramic substrate inside a stainless steel housing to support emissions control while maintaining a direct-fit configuration. It measures 14.25 inches overall length, with a round body that is 4.02 inches high and wide and 4.75 inches long.

Fitment includes 2012 Mazda CX-7, front; 2011 Mazda CX-7, front; 2010 Mazda CX-7, front; 2009 Mazda CX-7, front; 2008 Mazda CX-7, front; and 2007 Mazda CX-7, front. This part cross-references 5481312 for the same application. The part number 83686 is commonly searched by buyers looking for a CARB-compliant Mazda CX-7 catalytic converter replacement.

Common Replacement Reasons

• Failed emissions test or catalyst efficiency fault
• Check engine light related to catalytic converter performance
• Damaged or corroded front converter assembly
• Need for a CARB-certified replacement in regulated states
• Exhaust leak at the converter flange connection

Installation Notes

Installation requires attention to the listed fitment and notes for the Mazda CX-7 front application. Additional parts 31732 and 31630 are noted as needed to complete installation. Verify flange style, outlet diameter, and oxygen sensor location before installation. Because mounting hardware is not listed as included, confirm all required components are on hand before beginning the job.

Quality Assurance

Walker CalCat converters are designed, tested, and validated to meet CARB standards for regulated replacement applications. This Walker 83686 catalytic converter is CARB certified and built for direct-fit replacement on confirmed Mazda CX-7 front fitments.
