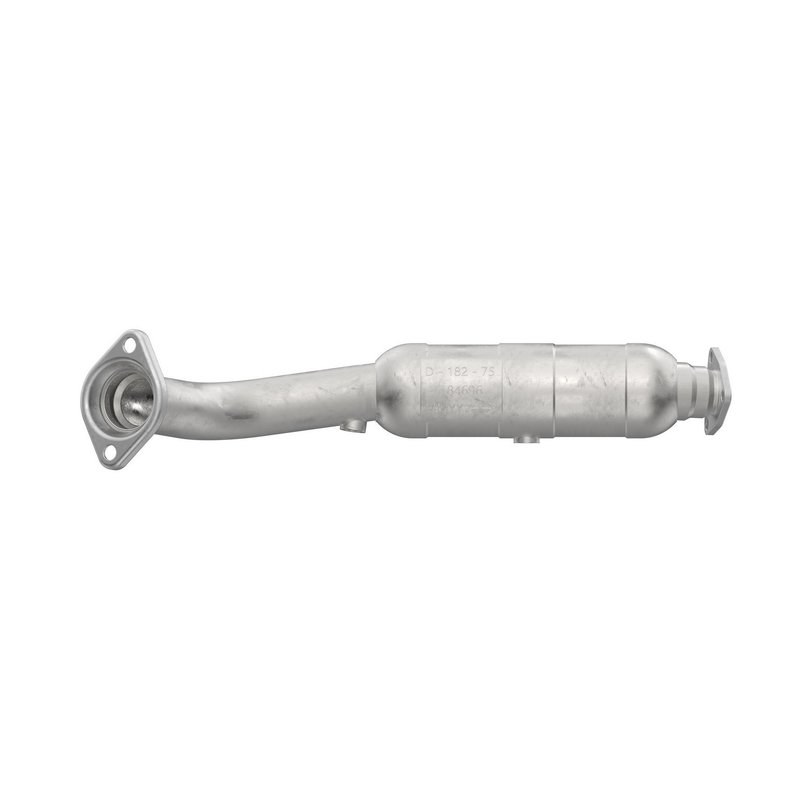

Walker 84696 Catalytic Converter

Walker CalCat Catalytic Converter for Honda CR-V

Walker CalCat 84696 is a direct-fit catalytic converter built for 2002-2006 Honda CR-V applications. It is CARB certified and engineered for a precise OE-style fit, making it a strong choice for emissions-related replacement work on the Honda CR-V.

Key Features

• Direct-fit catalytic converter for specific Honda CR-V fitment
• CARB certified for California emissions compliance
• New York certified for regulated emissions applications
• Premium-grade construction with a stainless steel body
• Ceramic substrate for emissions conversion performance
• Round body shape with a 3-bolt welded flange outlet
• 2-bolt welded flange inlet with spherical flare
• Includes two oxygen sensor ports with pre-converter and midbed locations
• Walker CalCat product line focused on OE-style fit and emissions compliance

Detailed Description

Walker 84696 is designed for 2002-2006 Honda CR-V models and follows the CalCat direct-fit format for a precise installation profile. The converter uses a stainless steel body, steel tubing, and a ceramic substrate to support emissions control in a configuration that matches the vehicle’s original-style exhaust layout. The round body measures 13.000 inches long with an overall length of 28.690 inches, and the outlet outside diameter is 1.917 inches.

The Walker CalCat line is built for applications where CARB compliance matters, and this unit is also New York certified. For shoppers searching for a 2002-2006 Honda CR-V catalytic converter, Walker 84696 provides a direct-fit replacement option with the correct inlet and outlet flange design, plus oxygen sensor provisions in the expected locations. This part cross-references AP Exhaust 770390 for the same application.

Common Issues This Part May Address

• Failed emissions test due to a worn or inefficient catalytic converter
• Check engine light related to catalyst efficiency faults
• Restricted exhaust flow from a deteriorated converter core
• Corrosion or damage to the original exhaust converter assembly
• Need for a CARB-certified replacement on a Honda CR-V

Installation Notes and Tips

Verify the vehicle is a 2002-2006 Honda CR-V before ordering Walker 84696. Confirm the inlet and outlet flange style, oxygen sensor port locations, and exhaust routing against the original part to ensure proper alignment. Because mounting hardware, inlet gasket, and outlet gasket are not listed as included, reuse or replace related sealing components as needed during installation. Professional installation is recommended for emissions-system repairs.

Quality Assurance

Walker CalCat catalytic converters are designed, tested, and validated to meet CARB standards for regulated emissions applications. Part number 84696 is built as a direct-fit replacement with OE-style dimensions and certification coverage for California and New York requirements.
