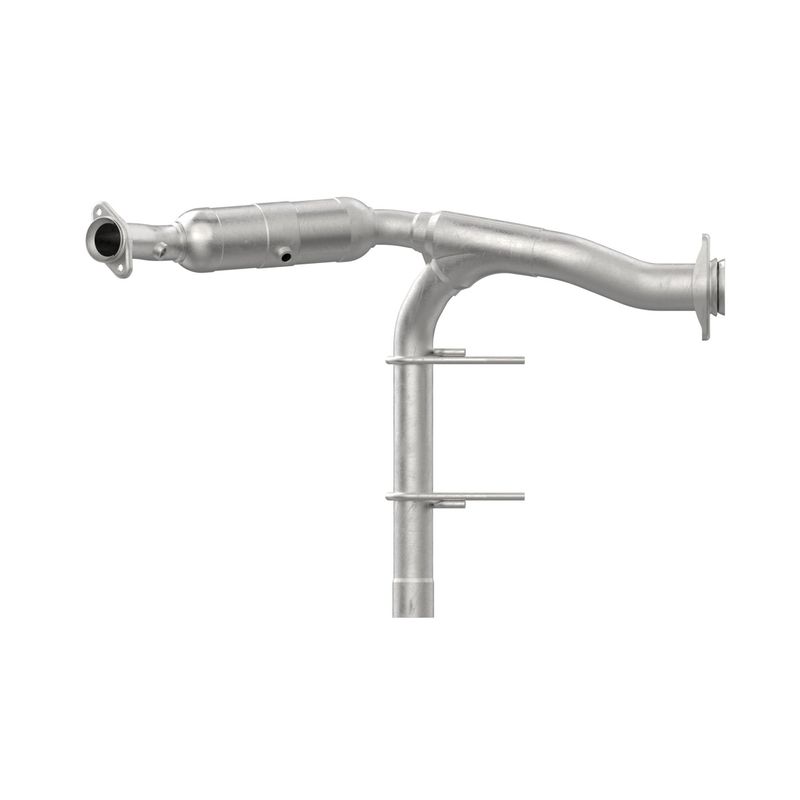

Walker 84748 Catalytic Converter - Right
| Brand | Walker 84748 |
|---|---|
| Position | Right |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Tube Material | Steel |
| Hangers Included | Yes |
| Body Shape | Round |
| Body Height | 4.000 |
| Body Length | 13.000 |
| Body Width | 4.000 |
| Inlet Quantity | 2 |
| Body Material | Stainless steel |
| Outlet Inside Diameter | 3.480 |
| Outlet Quantity | 1 |
| California Air Resources Board (CARB) Certified | Yes |
| Substrate Material | Ceramic |
| Converter Quantity | 1 |
| Inlet Gasket Included | No |
| Inlet Mounting Hardware Included | No |
| Outlet Mounting Hole Quantity | 1 |
| Outlet Gasket Included | No |
| Outlet Mounting Hardware Included | No |
| Overall Length | 41.240 |
| Sensor Port Count | 2 |
| New York Certified | Yes |
| Oxygen Sensor Location | Pre converter and midbed |
| CARB Executive Order Number | D-182-80 |
| Inlet Gasket | No |
| Inlet Hardware | No |
| LH inlet inside diameter | 2.500 |
| LH Inlet Type | Pipe connection |
| Product line | CalCat |
| Fits | Ford · 3 vehicles |
OE-style direct fit. Built for specific applications with a precise replacement layout.
CARB certified. Validated to meet California emissions compliance requirements.
Stainless steel body. Paired with a ceramic substrate for emissions service durability.
Cross-references 5551470 for the same application. See all 1.
Overview
Walker CalCat 84748 is a direct-fit catalytic converter built for specific applications and engineered to deliver an OE-style fit. It is CARB certified and validated for compliance, making it a strong match for emissions-related replacement needs on the Ford F-150.
Key Features
- Direct-fit catalytic converter with specific application coverage.
- CARB certified with Executive Order D-182-80.
- Stainless steel body with a ceramic substrate.
- Two oxygen sensor ports for the correct emissions setup.
- Round body design with hangers included.
- Walker CalCat 84748 is built for premium-grade replacement use.
Detailed Description
Walker CalCat 84748 is designed, tested, and validated to meet CARB standards while maintaining a precise OE-style fit. The stainless steel body, ceramic substrate, and direct-fit layout support a clean replacement for emissions service, and the part is configured with the correct inlet and outlet connections for the listed application. This catalytic converter is a fit for 2015-2017 Ford F-150, right, CalCat, and it is also identified by part number 84748 for ordering and catalog lookup. This part cross-references 5551470 for the same application.
What It Is Used For
- Replacing a failed or restricted catalytic converter.
- Restoring emissions system function after converter damage.
- Addressing CARB compliance requirements on the listed application.
- Correcting exhaust flow issues caused by internal substrate deterioration.
- Resolving oxygen sensor-related exhaust system faults tied to converter condition.
Installation Notes and Tips
Fits 2015-2017 Ford F-150, right. Verify inlet and outlet connection style, sensor port count, and overall dimensions before installation. The unit includes hangers, but mounting hardware, inlet gaskets, and outlet gaskets are not included. Confirm the vehicle’s emissions requirements and match the CARB Executive Order number D-182-80 before installation.
Quality Assurance
Walker CalCat converters are designed, tested, and validated for CARB compliance and OE-style fitment. Part number 84748 is built to the listed specifications and carries California Air Resources Board certification for the stated application.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2017 | Ford | F-150 | 5.0L | V8 | Right | CalCat |
| 2016 | Ford | F-150 | 5.0L | V8 | Right | CalCat |
| 2015 | Ford | F-150 | 5.0L | V8 | Right | CalCat |
| No rows match your filter. | ||||||
