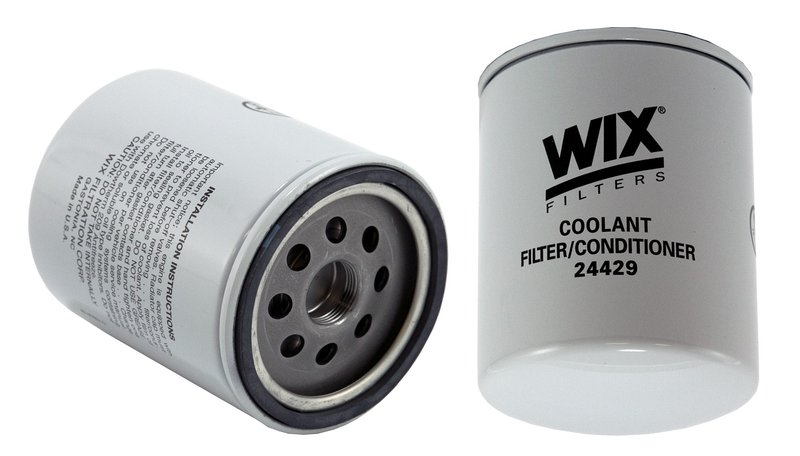

Wix 24429 Engine Coolant Filter
| Brand | Wix 24429 |
|---|---|
| Burst Pressure | 200 |
| Class | Hw |
| Duty Type | Hd |
| Height | 5.652 |
| Inner Diameter Top | Closed |
| Media Material | Cellulose |
| Micron | 25.00 |
| Outer Diameter Top | 4.316 |
| Style | Coolant spin-on filter |
| Thread Size | 1-16 |
| Fits | —5 vehicles |
25-micron filtration. Cellulose media helps capture coolant contaminants in demanding service.
Heavy-duty construction. Built for operating conditions found in trucks and equipment.
Spin-on design. Simplifies routine coolant filter replacement.
Cross-references ACDelco WF109, American Parts 96429 and Baldwin BW5177 for the same application. See all 47.
Engine Coolant Filter Overview
The Wix 24429 engine coolant filter is built for heavy-duty cooling systems that need consistent filtration and dependable flow. It uses a 25-micron cellulose media in a spin-on design to help capture contaminants in coolant circuits used on medium and heavy trucks and other equipment.
Key Features
- 25-micron cellulose media for coolant filtration
- Spin-on style for straightforward service replacement
- 1-16 thread size for supported applications
- Closed top design with 4.316-inch outer diameter
- Heavy-duty construction for demanding operating conditions
- Wix part number 24429 for catalog matching
Product Details
Wix coolant filters are engineered for service in demanding cooling systems where contamination control matters. The 24429 uses a cellulose filter medium and a 25-micron rating to help remove debris from coolant as it circulates through the system. With a 200 burst pressure rating and heavy-duty class construction, this filter is suited to applications that require durable filtration performance. If you are sourcing a Wix 24429 coolant spin-on filter for a truck or equipment cooling system, verify thread size, dimensions, and service specifications before installation. This part cross-references Fleetguard WF2022 and FRAM PR3433 for the same application.
What It Helps Address
- Coolant contamination from rust and debris
- Reduced filtration efficiency in service intervals
- Cooling system wear caused by circulating particles
- Service replacement needs for heavy-duty coolant circuits
Installation Notes and Tips
Confirm the 1-16 thread size, closed-top configuration, height, and outer diameter before installation. Replace the filter during routine coolant service and follow the equipment manufacturer’s coolant maintenance procedure. Use the Wix 24429 only in applications specified for a coolant spin-on filter.
Quality Assurance
Wix coolant filters are built with materials, design, and construction intended for demanding operating conditions in heavy-duty service. Part number 24429 is identified for coolant filtration applications where consistent protection is required.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Notes |
|---|---|---|---|---|---|---|
| 2003 | Oshkosh Motor Truck Co. | FCM | 11.9L | -6 | DIESEL | — |
| 2003 | Oshkosh Motor Truck Co. | S | 11.9L | -6 | DIESEL | — |
| 2002 | Oshkosh Motor Truck Co. | FCM | 11.9L | -6 | DIESEL | — |
| 2001 | Oshkosh Motor Truck Co. | FCM | 11.9L | -6 | DIESEL | — |
| 2000 | Oshkosh Motor Truck Co. | FCM | 11.9L | -6 | DIESEL | — |
| No rows match your filter. | ||||||
