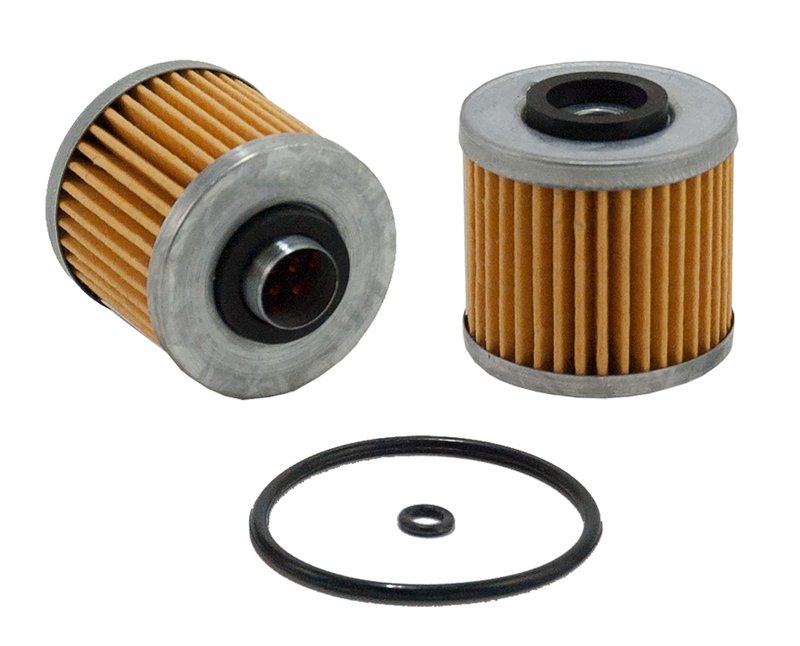

Wix 24936 Engine Oil Filter
| Brand | Wix 24936 |
|---|---|
| Bypass Relief Valve Setting | 8-10 |
| Class | D |
| Duty Type | Ld |
| Height | 2.252 |
| Inner Diameter Bottom | 0.787 |
| Media Material | Cellulose |
| Micron | 15.00 |
| Outer Diameter Bottom | 2.170 |
| Outer Diameter Top | 2.170 |
| Style | Cartridge lube metal canister |
| Fits | — |
Cartridge oil filter. Provides engine protection with a metal canister design.
Cellulose media. Delivers reliable filtration with 15-micron efficiency.
OEM service intervals. Recommended for standard oil and filter change schedules.
Cross-references Baldwin P40091, CARQUEST Premium Filters 89936 and FRAM CH6005 for the same application. See all 24.
WIX 24936 Engine Oil Filter
The WIX 24936 engine oil filter is built for light-duty applications that need consistent oil filtration and dependable sealing. With 15-micron cellulose media and an 8-10 bypass relief valve setting, it supports clean oil flow in normal and severe driving conditions.
Compatible With Yamaha applications that use this cartridge-style oil filter, the WIX 24936 is a practical choice for routine oil service on engines that see stop-and-go traffic, short trips, dirt roads, and highway use.
Key Features
- 15-micron cellulose media for fine particle capture
- Bypass relief valve setting: 8-10
- Cartridge lube metal canister style
- High-strength, corrosion-resistant canister, center tube, and end caps
- Leak-resistant sealing components for stable operation
- Recommended for OEM oil and filter change intervals
Detailed Description
WIX part number 24936 is an engine oil filter designed for light-duty service where reliable filtration and consistent oil pressure matter. The cartridge-style construction uses cellulose media to help trap contaminants while maintaining flow, and the metal canister design adds durability in demanding operating conditions. This filter is suitable for conventional, synthetic, and synthetic-blended motor oils when specified by the OE vehicle manufacturer. For Yamaha models that call for this application, WIX 24936 supports regular maintenance intervals and dependable engine protection.
This part cross-references FRAM CH6005 and NAPA Gold Filters 4936 for the same application.
What It Helps Address
- Oil contamination from normal engine wear
- Restricted filtration performance during extended service intervals
- Leak concerns at the filter sealing surfaces
- Pressure fluctuations during cold starts and operating changes
- Maintenance needs for Yamaha oil filter service
Installation Notes and Tips
Verify the filter style, dimensions, and OE service interval before installation. The WIX 24936 measures 2.252 inches high with a 2.170-inch outer diameter and 0.787-inch inner diameter bottom. Replace the filter at the manufacturer-recommended oil change interval and confirm proper sealing during installation.
Quality Assurance
WIX designs this oil filter with corrosion-resistant structural components and sealing materials intended to support long service life under varied operating conditions. Follow the vehicle manufacturer’s maintenance schedule for best results.
