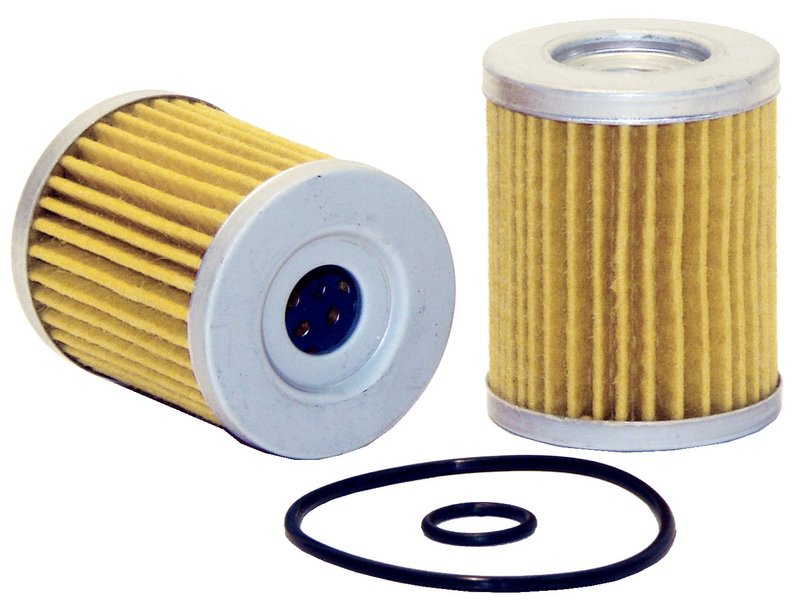

Wix 24949 Engine Oil Filter - Main
| Brand | Wix 24949 |
|---|---|
| Position | Main |
| Bypass Relief Valve Setting | 8-10 |
| Class | B |
| Duty Type | Ld |
| Height | 2.177 |
| Inner Diameter Bottom | 0.532 |
| Inner Diameter Top | Closed |
| Media Material | Cellulose |
| Outer Diameter Bottom | 1.732 |
| Outer Diameter Top | 1.732 |
| Style | Cartridge lube metal canister |
| Fits | — |
Cartridge oil filter. Provides engine protection with a metal canister design.
Cellulose media. Delivers high-capacity filtration for dependable oil flow.
Leak-resistant construction. Uses corrosion-resistant components and superior sealing parts.
Cross-references Arctic Cat 3436005, Baldwin P7490 and CARQUEST Premium Filters 89948 for the same application. See all 26.
WIX 24949 Engine Oil Filter Overview
The WIX 24949 engine oil filter is built for light-duty applications that need consistent oil filtration and dependable sealing. It uses cellulose media and a cartridge lube metal canister style to support clean oil flow in normal and severe driving conditions.
Compatible With Suzuki and Yamaha applications that call for this filter format, the WIX 24949 is also cross-referenced by several aftermarket and OE part numbers for the same application.
Key Features
- Cellulose filter media for routine engine oil filtration
- Bypass relief valve setting: 8-10
- Cartridge lube metal canister style
- High-strength, corrosion-resistant construction
- Designed for OEM oil and filter change intervals
- Dimensions: 2.177 in. height, 1.732 in. outer diameter, 0.532 in. inner diameter bottom
Detailed Product Description
WIX part number 24949 is an engine oil filter engineered for light-duty service where stable filtration and leak-resistant construction matter. The cellulose media helps capture contaminants in conventional, synthetic, and synthetic-blended motor oils, while the metal canister design supports durability under everyday driving and harsher conditions such as stop-and-go traffic, short trips, dirt roads, and interstate use. This filter is a practical choice for Suzuki and Yamaha maintenance where the specified cartridge-style oil filter is required.
This part cross-references NAPA Gold Filters 4949 and FRAM CH6064 for the same application.
What It Helps Address
- Oil contamination from normal engine wear
- Reduced filtration performance during extended service intervals
- Leak concerns at the filter sealing surfaces
- Pressure fluctuations during cold starts and high-load operation
- Premature filter breakdown in demanding driving conditions
Installation Notes and Tips
Verify the vehicle’s oil filter specification before installation and confirm the cartridge style, dimensions, and bypass setting match the OE requirement. Replace the filter during scheduled oil service, and pre-lubricate sealing components only as directed by the vehicle manufacturer. For Suzuki and Yamaha maintenance, always follow the factory service interval and oil specification.
Quality Assurance
WIX designs this filter for OEM-recommended oil and filter change intervals, typically 3,750 to 10,000 miles and not to exceed 12 months, depending on the vehicle manufacturer’s service schedule. The corrosion-resistant canister, center tube, end caps, and sealing components are selected to support long-term, leak-resistant operation.
