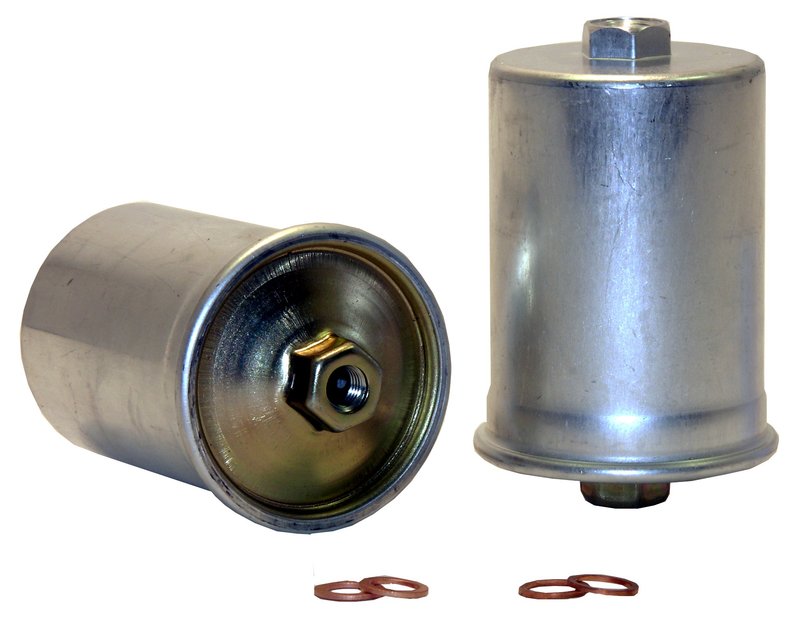

Wix 33156 Fuel Filter

Brand Wix 33156
Class W
Duty Type LD
Height 5.177
Inlet 14X1.5 MM
Inner Diameter Top Closed
Media Material Cellulose
Outer Diameter Top 3.134
Outlet 12X1.5 MM
Style Fuel (Complete In-Line) Filter
Fits Audi, Volkswagen, Alfa Romeo, Peugeot, Jaguar, Saab, DeLorean, and Volvo · 101 vehicles

OE interval recommended. Recommended for OEM fuel filter change intervals.

Cellulose media. High-efficiency filtration matched to the application and fuel type.

Complete in-line filter. Built for dependable fuel protection in normal and severe driving conditions.

Cross-references ACDelco FS 22, ACDelco FS 9003 E and ACDelco GF519 for the same application. See all 181.

$27.74Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $27.74
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

WIX 33156 Fuel Filter Overview

The WIX 33156 is a complete in-line fuel filter built for consistent fuel system protection in everyday driving and harsher conditions. It is a direct-fit style fuel filter for select Audi, Volkswagen, Jaguar, and Saab applications, including Audi A4, A6, A8, S4, S6, S8, Allroad Quattro, and Volkswagen Passat models.

With cellulose filter media and application-specific inlet and outlet sizing, this WIX fuel filter is made to support clean fuel delivery and stable engine operation. The WIX 33156 is also a common OE-style replacement for vehicles that call for this filter format.

Key Features

  • Complete in-line fuel filter design
  • Cellulose media for fuel filtration
  • 14x1.5 mm inlet and 12x1.5 mm outlet
  • Closed top configuration
  • 5.177 in. height and 3.134 in. outer diameter
  • Built for normal and severe driving conditions
  • Recommended for OEM fuel filter change intervals

Detailed Product Description

WIX part number 33156 is engineered for fuel systems that require a complete in-line filter with the listed thread sizes and dimensions. The filter media is matched to the application and fuel type, helping maintain fuel cleanliness across stop-and-go traffic, short trips, interstate driving, dirt roads, and construction-zone conditions. For drivers searching for a fuel filter for Audi A6 Quattro, Audi A4 Quattro, or Volkswagen Passat, this part number is a direct reference point for the correct OE-style service part.

This part cross-references FRAM G3747 and Bosch 0 450 905 064 for the same application.

Vehicle Fitment

  • Fits 1999-2006 Audi A6 Quattro, N/A
  • Fits 1996 Audi A6 Quattro, N/A
  • Fits 2001-2005 Audi Allroad Quattro, N/A
  • Fits 2001-2004 Audi S6, N/A
  • Fits 2001-2004 Volkswagen Passat, N/A
  • Fits 1997-2003 Audi A8 Quattro, N/A
  • Fits 2002-2003 Audi S8, N/A
  • Fits 2002 Audi RS4, N/A, Original Equipment Part Number 431 133 511 D
  • Fits 2000-2002 Audi S4, N/A
  • Fits 2001 Audi A4, N/A
  • Fits 1997-1999 Audi A4, N/A
  • Fits 2001 Audi A4 Quattro, N/A
  • Fits 1997-1999 Audi A4 Quattro, N/A
  • Fits 2000-2001 Audi A6, N/A
  • Fits 1996 Audi A6, N/A
  • Fits 2001 Audi S8, N/A, Original Equipment Part Number 431 133 511 D
  • Fits 2000 Volkswagen Passat, N/A, Drive Type: AWD
  • Fits 1997-1999 Audi A8, N/A
  • Fits 1993-1995 Audi 90, N/A
  • Fits 1993-1995 Audi 90 Quattro, N/A
  • Fits 1990-1994 Audi V8 Quattro, N/A
  • Fits 1988-1990 Jaguar Vanden Plas, N/A
  • Fits 1988-1990 Jaguar XJ6, N/A
  • Fits 1985-1989 Volkswagen Cabriolet, N/A
  • Fits 1987 Jaguar XJ6, N/A, Original Equipment Part Number GF519
  • Fits 1980-1987 Saab 900, N/A
  • Fits 1984 Volkswagen Jetta, N/A
  • Fits 1984 Volkswagen Rabbit Convertible, N/A

Installation Notes and Tips

Confirm the inlet and outlet thread sizes before installation: 14x1.5 mm inlet and 12x1.5 mm outlet. Match the filter orientation to the vehicle’s fuel line routing and replace the filter at the service interval specified by the vehicle manufacturer. For Audi A6 Quattro, Audi A4 Quattro, and Volkswagen Passat fuel filter service, verify the OE part number and physical dimensions against the removed filter before installation.

Quality Assurance

WIX fuel filters are built with application-specific media, materials, and construction to support reliable fuel system protection under normal and severe driving conditions. The 33156 is recommended for OEM fuel filter change intervals and is manufactured to meet the demands of a wide range of driving environments.

This part fits 101 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypeLitersCylindersPositionNotes
2006AudiA6 QuattroAWD3.0LV6N/A—
2005AudiA6 QuattroAWD3.0LV6N/A—
2005AudiAllroad Quattro—4.2LV8N/A—
2005AudiAllroad Quattro—2.7LV6N/A—
2004AudiA6 Quattro—4.2LV8N/A—
2004AudiA6 Quattro—2.7LV6N/A—
2004AudiA6 QuattroAWD3.0LV6N/A—
2004AudiAllroad Quattro—4.2LV8N/A—
2004AudiAllroad Quattro—2.7LV6N/A—
2004AudiS6—4.2LV8N/A—
2004VolkswagenPassatAWD2.8LV6N/A—
2004VolkswagenPassat—4.0LW8N/A—
2003AudiA6 Quattro—4.2LV8N/A—
2003AudiA6 Quattro—2.7LV6N/A—
2003AudiA6 Quattro—3.0LV6N/A—
2003AudiA8 Quattro—4.2LV8N/A—
2003AudiAllroad Quattro—4.2LV8N/A—
2003AudiAllroad Quattro—2.7LV6N/A—
2003AudiS6—4.2LV8N/A—
2003AudiS8—4.2LV8N/A—
2003VolkswagenPassatAWD2.8LV6N/A—
2003VolkswagenPassat—4.0LW8N/A—
2002AudiA6 Quattro—4.2LV8N/A—
2002AudiA6 Quattro—2.7LV6N/A—
2002AudiA6 Quattro—3.0LV6N/A—
2002AudiA8 Quattro—4.2LV8N/A—
2002AudiAllroad Quattro—2.7LV6N/A—
2002AudiRS4—2.7LV6N/AOriginal Equipment Part Number 431 133 511 D
2002AudiS4—2.7LV6N/A—
2002AudiS6—4.2LV8N/A—
2002AudiS8—4.2LV8N/A—
2002VolkswagenPassatAWD2.8LV6N/A—
2002VolkswagenPassat—4.0LW8N/A—
2001AudiA4—1.8LL4N/A—
2001AudiA4 Quattro—1.8LL4N/A—
2001AudiA6—2.8LV6N/A—
2001AudiA6 Quattro—4.2LV8N/A—
2001AudiA6 Quattro—2.7LV6N/A—
2001AudiA6 Quattro—2.8LV6N/A—
2001AudiA8 Quattro—4.2LV8N/A—
2001AudiAllroad Quattro—2.7LV6N/A—
2001AudiS4—2.7LV6N/A—
2001AudiS6—4.2LV8N/A—
2001AudiS8—4.2LV8N/AOriginal Equipment Part Number 431 133 511 D
2001VolkswagenPassatAWD2.8LV6N/A—
2000AudiA6—2.8LV6N/A—
2000AudiA6 Quattro—4.2LV8N/A—
2000AudiA6 Quattro—2.7LV6N/A—
2000AudiA8 Quattro—4.2LV8N/A—
2000AudiS4—2.7LV6N/A—
2000VolkswagenPassatAWD2.8LV6N/ADrive Type: AWD
1999AudiA4—1.8LL4N/A—
1999AudiA4 Quattro—1.8LL4N/A—
1999AudiA6 QuattroAWD2.8LV6N/A—
1999AudiA8—3.7LV8N/A—
1999AudiA8 Quattro—4.2LV8N/A—
1998AudiA4—1.8LL4N/A—
1998AudiA4 Quattro—1.8LL4N/A—
1998AudiA8—3.7LV8N/A—
1998AudiA8 Quattro—4.2LV8N/A—
1997AudiA4—1.8LL4N/A—
1997AudiA4—2.8LV6N/A—
1997AudiA4 Quattro—1.8LL4N/A—
1997AudiA4 Quattro—2.8LV6N/A—
1997AudiA8—3.7LV8N/A—
1997AudiA8 Quattro—4.2LV8N/A—
1996AudiA6—2.8LV6N/A—
1996AudiA6 Quattro—2.8LV6N/A—
1995Audi90—2.8LV6N/A—
1995Audi90 Quattro—2.8LV6N/A—
1994Audi90—2.8LV6N/A—
1994Audi90 Quattro—2.8LV6N/A—
1994AudiV8 Quattro—4.2LV8N/A—
1993Audi90—2.8LV6N/A—
1993Audi90 Quattro—2.8LV6N/A—
1993AudiV8 Quattro—4.2LV8N/A—
1992AudiV8 Quattro—4.2LV8N/A—
1991AudiV8 Quattro—3.6LV8N/A—
1990AudiV8 Quattro—3.6LV8N/A—
1990JaguarVanden Plas—4.0LL6N/A—
1990JaguarXJ6—4.0LL6N/A—
1989JaguarVanden Plas—3.6LL6N/A—
1989JaguarXJ6—3.6LL6N/A—
1989VolkswagenCabriolet—1.8LL4N/A—
1988JaguarVanden Plas—3.6LL6N/A—
1988JaguarXJ6—3.6LL6N/A—
1988VolkswagenCabriolet—1.8LL4N/A—
1987JaguarXJ6—3.6LL6N/AOriginal Equipment Part Number GF519
1987Saab900—2.0LL4N/A—
1987VolkswagenCabriolet—1.8LL4N/A—
1986Saab900—2.0LL4N/A—
1986VolkswagenCabriolet—1.8LL4N/A—
1985Saab900—2.0LL4N/A—
1985VolkswagenCabriolet—1.8LL4N/A—
1984Saab900—2.0LL4N/A—
1984VolkswagenJetta—1.8LL4N/A—
1984VolkswagenRabbit Convertible—1.8LL4N/A—
1983Saab900—2.0LL4N/A—
1982Saab900—2.0LL4N/A—
1981Saab900—2.0LL4N/A—
1980Saab900—2.0LL4N/A—
Directly replaces or cross-references 181 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
ACDelco — FS 22ACDelco — FS 9003 EACDelco — GF519AL Filter — ALG-2010AL Filter — ALG-2110Alfa Romeo — 6006968Alfa Romeo — 60506968Alfa Romeo — 60801979Alfa Romeo — 60810503Alfa Romeo — 71736107ASNU — 154Auto Extra — 61633156Autopart International — 5002197775Baldwin — BF885BAP Geon — 1132005BAP Geon — 1139101BAP Geon — 1139105Barad — GFV2010Beck/Arnley — 0430798BluePrint Engines — ADV182314Bosch — 0 450 905 064Bosch — 0 450 905 087Bosch — 0 450 905 104Bosch — 0 450 905 249Bosch — 0 450 905 267Bosch — 0 450 905 401Bosch — 0 450 905 906Bosch — 0 986 MF2 086Bosch — 71030Bosch — 71035Bosch — 71036Bosch — 71042Bosch — 71043Bosch — 71060Bosch — 77009WSBosch — 0405905401Bosch — 0450905087Bosch — 0450905095Bosch — 0450905104Bosch — 0450905164Bosch — 0450905401Bosch — F 5087Bosch — F5104Bosch — F5401Bosch — F 5906British Leyland — CAC9630British Leyland — CAC 9630Car Care — GF3747CARQUEST Premium Filters — 86156CEW — 3238000Champion — L 205Champion Automotive — GF95Citgo Petroleum — G2947clean filters — MBNA 959Cobra — WCF661COMLINE Auto Parts — EFF016Coopers — FIG 7008Delphi — FF0026Deutsch — FF730Duralast — FF730DLECOGARD — XF53191Fiat — 7174020Fiat — 7574020Fiat — 60506968Fiat — 60801979Fiat — 60810503Fiat — 71736110Filtron — PP 827Frad — 26.43.53/130AFRAM — G3747FRAM — G3747DPGeneral Motors — 25055428GK Industries — GF5401Gonher — GG-246Gonher — GG408Goodwill — FG 800Halfords — HFF219Hastings — GF136Hengst — H148WKHengst — H149WKHoffer Products — 7790023Hoffer Products — 7790023/1Inter-Continental — ALG2010Interfil — FGI086IPS — 48095Kayser — AK 11 - LAKolbenschmidt — 50 013 273Kolbenschmidt — 273-FPKralinator — G238Lancia — 60 810 503Lancia — 60801979Lazorlite — U116157Lazorlite — U116190Lazorlite — U116246LUBER-FINER — G 2947M Filter — MP 4007Magneti Marelli — FI 97Magneti Marelli — FI I20Mann-Filter — WK 725Mann-Filter — WK 830/6Mapco — 62802Meat & Doria — 4023Meat & Doria — 4023/1MEYLE — 100 201 0010MEYLE — 514 127 6002MicroGard — 33156Micron — F52010Mighty Distributing System — G 2947Mighty Distributing System — GF103Motaquip — VFF 152Motaquip — VFF 201Motaquip — VFF 269Motaquip — VFF 407Mueller — FB186NAPA Gold Filters — 3156NAPA ProSelect Filters — 23156Parts Master — 73156Parts Plus — G2947PBR — AG-6002Peugeot — 1567 10Peugeot — 9151781580Porsche — 930.110.196.00Porsche — 431133511Premium Guard — PF3191Pro-Tec — 573Promotive — F53191PPUREPRO — G2947Purflux — EP91Purolator — F 53191Purolator — F59222Purolator — PFC3191Quinton Hazell — QFF 5355Repco — 1132005Repco — 1138304Repco — 1139101Repco — 1139105Repco — RFF7Ryco — Z400Saab — 9328519Savara — SBI 102Sofima — S 1506 BSofima — S 1748 BTecalemit — B 86Tecnocar — B86Teho — 61044Trust — G2947UFI — 31.506.00UFI — 31.748.00Unipart Automotive — GFE 7026Universal Filter Italiana (UFI) — 3150400Universal Filter Italiana (UFI) — 3150600Universal Filter Italiana (UFI) — 3157100Universal Filter Italiana (UFI) — 3157200Universal Filter Italiana (UFI) — 3159400VAICO — V10-0257VAICO — V42-0014VAICO — V95-0277Valeo — 587214Valeo — 587215Vera — 1201416Volkswagen — 431 133 511 DVolkswagen — 441 201 511 BVolkswagen — 441 201 511 CVolvo — 1276864Volvo — 3413903Volvo — 3413903-0Volvo — 3473308WALMI — WG3747Warner — G2947Wix Europe — WF8029Worldparts — W27169YUILFILTER — YFV-005DG3747E 98F134FN 41G 2947KC 92KL 36KL 93KL 204
