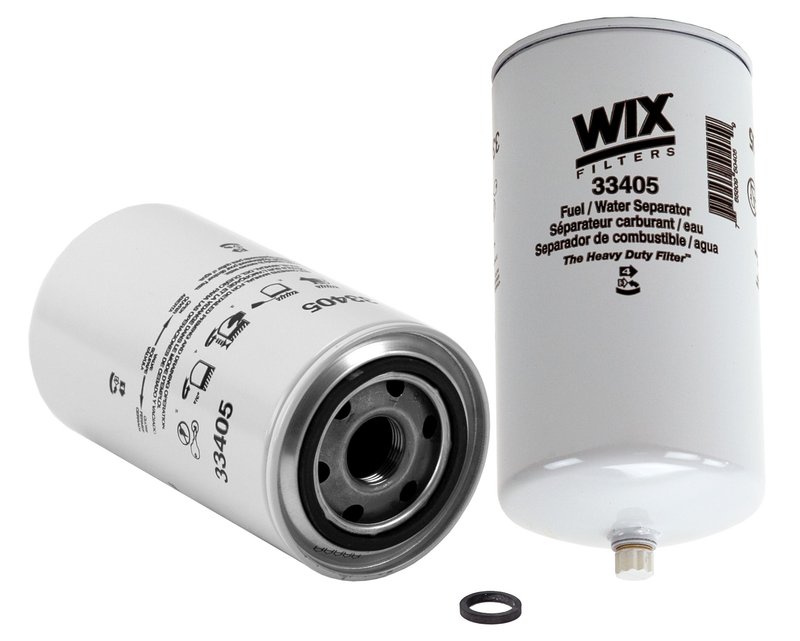

Wix 33405 Fuel Water Separator Filter

Brand Wix 33405
Burst Pressure 320
Class Ha
Drain Cock 1
Duty Type Hd
Flow Rate 12 gpm
Height 7.219
Inner Diameter Top Closed
Media Material Enhanced cellulose
Micron 14.00
Outer Diameter Top 3.698
Style Spin-on fuel/water separator f
Thread Size 1-14
Fits —

Heavy-duty filter. Spin-on fuel/water separator for demanding service.

Enhanced cellulose media. Helps trap contaminants for cleaner fuel and water removal.

Corrosion-resistant construction. Built with strong cans, center tubes, and end caps.

Cross-references ACDelco TP 1001, ACDelco TP1001F and AG Chem 600393 for the same application. See all 248.

$30.55Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $30.55
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Fuel Water Separator Filter options

Fuel Water Separator Filter for Heavy-Duty Fuel Systems

The Wix 33405 fuel water separator filter is built for heavy-duty diesel fuel systems that need cleaner fuel and reliable water removal. It uses enhanced cellulose media to capture contaminants while helping separate water from fuel for consistent engine protection.

Compatible With heavy-duty equipment and diesel applications that use a spin-on fuel/water separator design, including select Caterpillar, Cummins, Ford, John Deere, and Volvo equipment. The Wix 33405 is a direct replacement choice for service intervals where dependable filtration and water drainage matter.

Key Features

  • Enhanced cellulose media for contaminant retention and water separation
  • 14 micron filtration rating for fine particle capture
  • Spin-on fuel/water separator style with 1-14 thread size
  • 12 GPM flow rate for demanding diesel fuel delivery systems
  • High-strength can, center tube, and end caps with corrosion-resistant construction
  • Drain cock included for water purging
  • 320 burst pressure rating

Detailed Product Overview

Wix 33405 is a heavy-duty fuel water separator filter designed to help keep diesel fuel cleaner by removing water and trapping contaminants before they reach sensitive fuel system components. Its enhanced cellulose media supports strong holding capacity, while the sealed construction helps maintain leak-resistant performance in demanding service environments. This part cross-references Fleetguard FF1212 and Donaldson P550106 for the same application.

With a 7.219-inch height, 3.698-inch outer diameter, closed top, and spin-on configuration, this filter is suited to equipment that uses a standard fuel/water separator canister. The Wix 33405 is a practical service part for operators maintaining diesel-powered machinery, trucks, and off-road equipment where water in fuel can lead to hard starts, rough running, or injector wear.

Common Service Issues It Helps Address

  • Water contamination in diesel fuel
  • Restricted fuel flow from a loaded separator element
  • Contaminant buildup in fuel delivery systems
  • Hard starting caused by poor fuel quality
  • Fuel system wear linked to moisture and debris

Installation Notes and Tips

Install the Wix 33405 on applications that specify a 1-14 threaded, spin-on fuel/water separator filter. Before installation, verify the housing sealing surface is clean and inspect the drain cock and sealing components for proper operation. After service, purge collected water as needed and confirm there are no leaks at the filter base.

For fitment-focused searches, this part is commonly referenced for heavy-duty diesel service on Caterpillar, Cummins, Ford, John Deere, and Volvo equipment. Always match the filter dimensions and thread specification to the existing unit before replacement.

Quality Assurance

Wix designs HD fuel water separator filters with corrosion-resistant components and superior sealing materials to support long service life and leak-resistant operation in demanding diesel environments.

Related reading

This part fits 0 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
Directly replaces or cross-references 248 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
ACDelco — TP 1001ACDelco — TP1001FAG Chem — 600393AG Chem — 711048American Parts — 95405Ametek — LK-81303ASAS — SPFC 608Baldwin — BF796Baldwin — BF957-BBaldwin — BF957-DBaldwin — BF991Baldwin — BF1212Baldwin — BF1212HPBaldwin — BF1249Baldwin — BF1282Baldwin — BF7557-BBosch — 0 451 302 001Bosch — 0 451 302 054Bosch — 1 457 434 423Bosch — 9 455 160 325CARQUEST Premium Filters — 86405CARQUEST Premium Filters — 96281Case — 181925Case — E1950565Caterpillar — 3I1144Caterpillar — 3I1365Caterpillar — 3I1367Champion Automotive — HF501Champion Motor Graders — 36849Clark Equipment — 00C02736clean filters — DN 264/Bclean filters — DN 273Coopers — AZF 001Coopers — AZF 002Coopers — AZF 073Coopers — FSM 4029Coopers — FSM 4099Coopers — Z 14Coopers — Z 30Coopers — Z 31Crosland — 592Crosland — 5027Crosland — 9331Cummins — 156172Cummins — 3308638Cummins — 3310216Cummins — 3315843Cummins — 3831132Cummins — 3843447Cummins — D-156172Cyclone — P 282Cyclone — P 333-DCyclone — P 476Daewoo — 65125035011Demag — 694137Demag — 988702Donaldson — FFP170212Donaldson — FFP550106Donaldson — FFP558000Donaldson — FFP558020Donaldson — P170212Donaldson — P502516Donaldson — P550106Donaldson — P550691Donaldson — P558000Donaldson — P558020Fiat — 71455185FiatAllis — 73144663Filtron — PP 965Fleetguard — FF102HPFleetguard — FF105CHPFleetguard — FF105DFleetguard — FF105HPFleetguard — FF1212Fleetguard — FS1212Fleetguard — FS1212JFleetguard — FS1222Fleetguard — FS1240Fleetguard — FS1282Fleetrite — FLRTFS1212Fleetrite — FSR81212Foden — YO21.117.03Foden — YO21.789.11Foden — YO50.043.01Ford — 72MF 9176 AAFord — 749F 9176 AAAFord — 749F9176AAAFord — 1537 614Ford — 5000 987Ford — 6019 967Ford — C6TZ 9155 AFord — V79080Frad — 45.65.14/130FRAM — PCS5059FRAM — PCS5059MFRAM — PCS5062FRAM — PCS5062MFRAM — PS3712FRAM — PS11069General Motors — 25011689General Motors — FS1212GK Industries — HD3405Gonher — GPP103Goodwill — FG 125Goodwill — FG 1077Grove — 7437000747Grove — 9414100880Hastings — 866Hastings — BF1282Hastings — FF863Hastings — FF866Hastings — FF962Hastings — FF1010Hastings — FF1063Heavy Duty Air — HDA16021Hengst — H13WKHitachi Construction Machinery — 4085912Hitachi Construction Machinery — 4198443Hitachi Construction Machinery — 4291867Hitachi Construction Machinery — 4616864Hitachi Construction Machinery — 40859121Hitachi Construction Machinery — L4085912Hitachi Construction Machinery — L4291867Hitachi Construction Machinery — PMFS1212Hymac — 2707056Hyundai — 11E170220Ingersoll Rand — 35289091Ingersoll Rand — 35357268Ingersoll Rand — 57138554Ingersoll Rand — 59874552Ingersoll Rand — 90749136International Harvester (IHC) — 598435C1International Harvester (IHC) — 1214920H1International Harvester (IHC) — 1295348H1International Harvester (IHC) — 1304800H1International Harvester (IHC) — 18115336C1Isuzu — 1132400441John Deere — PMFS1212John Deere — RE42050Kobelco — YN50VU0001D7Komatsu — 20801K1310Komatsu — 1240483-H1Komatsu — CU3315843Komatsu — CUFS1212Komatsu — DA1467Kralinator — F 28Kralinator — F 44Kralinator — F 44 RKralinator — FS 244Liebherr — 736 4111Liebherr — 7364434Link-Belt — C6A0279Link-Belt — C6H0279LUBER-FINER — LFF 5 DLUBER-FINER — LFF5D-1LUBER-FINER — LFF1282LUBER-FINER — LFF1282-1LUBER-FINER — LFF 5002LUBER-FINER — LFF 8000LUBER-FINER — LFF8000-1LUBER-FINER — LFF8011LUBER-FINER — LFF 8020LUBER-FINER — LFF8020-1LUBER-FINER — LFP 230LUBER-FINER — LFP 1101-FLUBER-FINER — LFP 1101-FDM Filter — MP 453MAN — 86.77940-0377Manitowoc — 4133580Mann-Filter — WK 950/16Mann-Filter — WK 950/16 XMicroGard — 33405Motorcraft — EFG 012Motorcraft — EFG 013Multipart — CU 154709NAPA Gold Filters — 3405New Holland Construction — 84557704New Holland Construction — 8900127093Onan — 1222249Onan — 1492200Onan — 1492278Parts Master — 73405PBR — BG-1522PBR — BG-1528PBR — BG-1578Perma-Cool — 81000Poclain — U1350555Purolator — F 60024Purolator — F 60231Purolator — F 60232Purolator — F 60233Purolator — GP24Purolator — PER 15Purolator — PER 231Ryco — HDZ48Ryco — HDZ159Sakura — FC-5721Sakura — SFC5705Samyung — 3315843Samyung — 991215843Savara — 9.28.019.11Savara — 2842/10Sofima — S 0810 NRSogefi Pro — FP5829Steiger Tractor — 90-3941T1Taylor Machine — 2404340Taylor Machine — 4026077TCM — 2936102601Tecalemit — FB 2082Tecalemit — FF 5439Tecnocar — RN115Tecnocar — RN154Teho — 6063Teho — OK 24Teho — OK 63Thomas Built Buses — 125947Thomas Built Buses — 125948UFI — 24.313.00Versatile — 79080Versatile — 86029630VIC — FC-608VIC — FC-608AVolvo — 36849Volvo — 991215843VTE-FILTER — 464Wix Europe — 33405Woodgate — WGF105Woodgate — WGF194Woodgate — WGF213Woodgate — WGF232Woodgate — WGF5017Woodgate — WGFS1212Woodgate — WGFS1214Yale And Towne — 46092797176/503ABP/N10G-FS1212ABPN10GFF105DABPN10GFS1212ELG5508GF609HDF 503HF-1944KC15KC 192KF-1560KW1212LFF 5 DZ83
