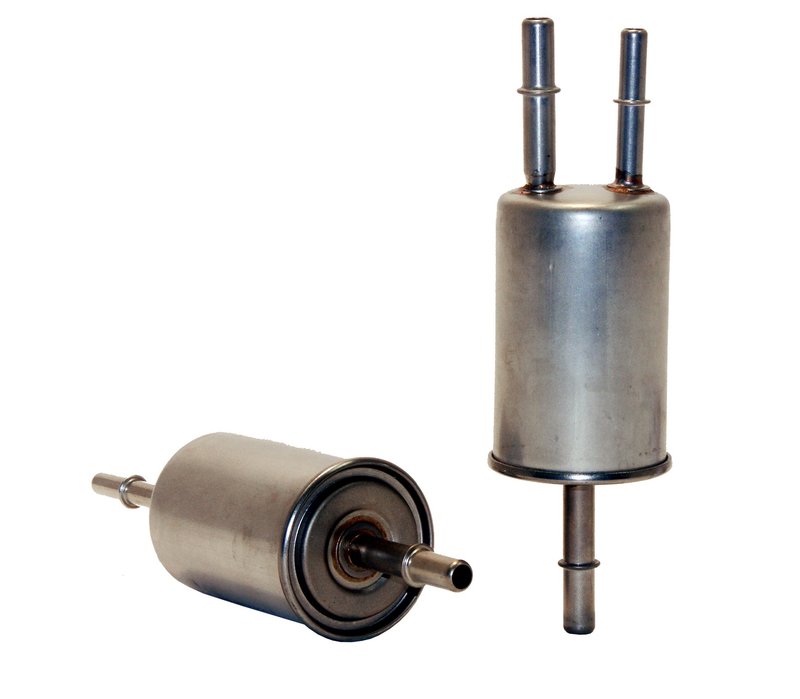

Wix 33424 Fuel Filter

Brand Wix 33424
Class B
Duty Type LD
Flow Rate 1 GPM
Height 7.000
Inlet 3/8
Inner Diameter Top Closed
Media Material Cellulose
Micron 12.00
Outer Diameter Bottom 2.000
Outer Diameter Top 2.220
Outlet 3/8
Style Fuel (Complete In-Line) Filter
Vapor 5/16
Fits Ford, Lincoln, Mazda, and Mercury · 81 vehicles

OE service intervals. Recommended for OEM fuel filter change intervals.

Cellulose media. High-efficiency filtration matched to the application and fuel type.

Complete in-line filter. Built for dependable fuel protection in normal and severe driving conditions.

Cross-references ACDelco GF704, Auto Extra 61633424 and Autopart International 5002200265 for the same application. See all 56.

$30.87Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $30.87
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

WIX 33424 Fuel Filter for Ford and Mazda Applications

The WIX 33424 fuel filter is built for clean fuel delivery in a range of Ford, Lincoln, Mercury, and Mazda applications. With a 12 micron cellulose media and complete in-line fuel filter design, it helps protect the fuel system during everyday driving, stop-and-go traffic, short trips, and demanding road conditions.

Key Features

  • Part number 33424 WIX fuel filter for select Ford Expedition, Ford Ranger, Ford Focus, Lincoln Navigator, Mercury Mountaineer, and Mazda truck applications
  • 12 micron cellulose filtration media for fine particle capture
  • Complete in-line fuel filter style with 3/8 in. inlet and outlet connections
  • 5/16 in. vapor connection
  • 1 GPM flow rate for light-duty fuel system service
  • 7.000 in. height, 2.000 in. bottom outer diameter, and 2.220 in. top outer diameter

Detailed Description

WIX engineers this fuel filter for OEM-style service intervals and application-specific fuel requirements. The media and construction are selected to provide consistent fuel cleanliness across normal commuting and severe-duty use, including dirt roads, construction zones, and frequent stop-and-go operation. If you are servicing a Ford Expedition fuel filter, a Ford Ranger fuel filter, or a Mazda B3000/B4000/B2300 fuel filter application, this WIX 33424 filter is built to match the listed fitment and connection sizes.

This part cross-references Ford (e.g., 2L2Z9155AB, FG1036) for the same application.

What It Helps Address

  • Restricted fuel flow caused by contamination in the fuel line
  • Fuel system wear from dirt and fine debris
  • Rough running related to a dirty or overdue fuel filter
  • Maintenance needs on high-mileage Ford, Lincoln, Mercury, and Mazda vehicles
  • Fuel delivery issues during frequent stop-and-go driving

Installation Notes and Tips

Confirm the inlet and outlet sizes before installation: this filter uses 3/8 in. connections and a 5/16 in. vapor port. Verify the vehicle’s original fuel filter layout and service location against the listed fitment before replacement. For best results, replace the filter at the OEM-recommended interval and inspect the fuel lines for wear or contamination during service.

  • Fits 2017-2018 Ford Expedition, N/A
  • Fits 2014-2016 Ford Expedition, N/A
  • Fits 2014 Lincoln Navigator, N/A
  • Fits 2007-2013 Ford Expedition, N/A
  • Fits 2013 Ford Focus, N/A
  • Fits 2011 Ford Focus, N/A
  • Fits 2008-2009 Ford Focus, N/A
  • Fits 2007-2013 Lincoln Navigator, N/A
  • Fits 2004-2011 Ford Ranger, N/A
  • Fits 2004-2010 Mazda B2300, N/A
  • Fits 2004-2010 Mazda B4000, N/A
  • Fits 2004-2008 Mazda B3000, N/A
  • Fits 2006-2007 Ford Freestar, N/A
  • Fits 2003-2004 Mercury Mountaineer, N/A, with Three Lines
  • Fits 2002-2003 Ford Explorer, N/A, with Three Lines
  • Fits 2003 Ford Explorer Sport, N/A, Standard
  • Fits 2003 Ford Explorer Sport Trac, N/A, Standard
  • Fits 2002 Ford Explorer, N/A
  • Fits 2002 Ford Explorer Sport, N/A, From 3/4/02
  • Fits 2002 Ford Explorer Sport Trac, N/A, From 3/4/02
  • Fits 2002 Mercury Mountaineer, N/A

Quality Assurance

WIX fuel filters are built with application-specific media and durable construction for dependable service in normal and severe driving conditions. The 33424 is listed for OEM fuel filter change intervals and is supported by the provided interchange references for matching applications.

This part fits 81 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersFuel TypePositionNotes
2018FordExpedition3.5LV6—N/AOriginal Equipment Part Number FG1036
2017FordExpedition3.5LV6—N/AOriginal Equipment Part Number FG1036
2016FordExpedition3.5LV6—N/AOriginal Equipment Part Number 2L2Z9155AB
2015FordExpedition3.5LV6—N/AOriginal Equipment Part Number 2L2Z9155AB
2014FordExpedition5.4LV8—N/AOriginal Equipment Part Number 2L2Z9155AB
2014LincolnNavigator5.4LV8—N/AOriginal Equipment Part Number 2L2Z9155AB
2013FordExpedition5.4LV8—N/A—
2013FordFocus2.0LL4—N/A—
2013LincolnNavigator5.4LV8—N/A—
2012FordExpedition5.4LV8—N/A—
2012LincolnNavigator5.4LV8—N/A—
2011FordExpedition5.4LV8—N/A—
2011FordFocus2.0LL4—N/A—
2011FordRanger4.0LV6—N/A—
2011FordRanger2.3LL4—N/A—
2011LincolnNavigator5.4LV8—N/A—
2010FordExpedition5.4LV8—N/A—
2010FordRanger4.0LV6—N/A—
2010FordRanger2.3LL4—N/A—
2010LincolnNavigator5.4LV8—N/A—
2010MazdaB23002.3LL4—N/A—
2010MazdaB40004.0LV6—N/A—
2009FordExpedition5.4LV8—N/A—
2009FordFocus2.0LL4—N/A—
2009FordRanger4.0LV6—N/A—
2009FordRanger2.3LL4—N/A—
2009LincolnNavigator5.4LV8—N/A—
2009MazdaB23002.3LL4—N/A—
2009MazdaB40004.0LV6—N/A—
2008FordExpedition5.4LV8—N/A—
2008FordFocus2.0LL4—N/A—
2008FordRanger4.0LV6—N/A—
2008FordRanger2.3LL4—N/A—
2008FordRanger3.0LV6—N/A—
2008LincolnNavigator5.4LV8—N/A—
2008MazdaB23002.3LL4—N/A—
2008MazdaB30003.0LV6—N/A—
2008MazdaB40004.0LV6—N/A—
2007FordExpedition5.4LV8—N/A—
2007FordFreestar4.2LV6—N/A—
2007FordFreestar3.9LV6—N/A—
2007FordRanger4.0LV6—N/A—
2007FordRanger2.3LL4—N/A—
2007FordRanger3.0LV6—N/A—
2007LincolnNavigator5.4LV8—N/A—
2007MazdaB23002.3LL4—N/A—
2007MazdaB30003.0LV6—N/A—
2007MazdaB40004.0LV6—N/A—
2006FordFreestar4.2LV6—N/A—
2006FordFreestar3.9LV6—N/A—
2006FordRanger4.0LV6—N/A—
2006FordRanger2.3LL4—N/A—
2006FordRanger3.0LV6—N/A—
2006MazdaB23002.3LL4—N/A—
2006MazdaB30003.0LV6—N/A—
2006MazdaB40004.0LV6—N/A—
2005FordRanger4.0LV6—N/A—
2005FordRanger2.3LL4—N/A—
2005FordRanger3.0LV6—N/A—
2005MazdaB23002.3LL4—N/A—
2005MazdaB30003.0LV6—N/A—
2005MazdaB40004.0LV6—N/A—
2004FordRanger4.0LV6—N/A—
2004FordRanger2.3LL4—N/A—
2004FordRanger3.0LV6GASN/A—
2004MazdaB23002.3LL4—N/A—
2004MazdaB30003.0LV6—N/A—
2004MazdaB40004.0LV6—N/A—
2004MercuryMountaineer4.0LV6—N/Awith Three Lines
2003FordExplorer4.0LV6—N/Awith Three Lines
2003FordExplorer4.6LV8—N/Awith Three Lines
2003FordExplorer Sport4.0LV6GASN/AStandard
2003FordExplorer Sport Trac4.0LV6GASN/AStandard
2003MercuryMountaineer4.0LV6—N/Awith Three Lines
2003MercuryMountaineer4.6LV8—N/Awith Three Lines
2002FordExplorer4.0LV6—N/Awith Three Lines
2002FordExplorer4.6LV8—N/A—
2002FordExplorer Sport4.0LV6—N/AFrom 3/4/02
2002FordExplorer Sport Trac4.0LV6—N/AFrom 3/4/02
2002MercuryMountaineer4.0LV6GASN/A—
2002MercuryMountaineer4.6LV8—N/A—
Directly replaces or cross-references 56 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
ACDelco — GF704Auto Extra — 61633424Autopart International — 5002200265Baldwin — BF7742CARQUEST Premium Filters — 86233CARQUEST Premium Filters — 86424CARQUEST Standard — R86424Citgo Petroleum — G1036Donaldson — P550556Duralast — FF871DLECOGARD — XF65472Factory Motor Parts — V3424Factory Value — V3424Firestone Ride-Rite — G1036Ford — 2L2E9155AAFord — 2L2Z9155ABFord — E9BZ9155EAFRAM — G9343GK Industries — FG1036Gonher — GG308Hastings — GF345Interfil — FGI207Interfil — FGI207AKralinator — G298LTH — LTH207GLUBER-FINER — G1036LUBER-FINER — G1036-1Mann-Filter — MF1013Mazda — 1F7013470AMicroGard — 33424Mighty Distributing System — FG1036Motorcraft — FG1034Motorcraft — FG1036NAPA Gold Filters — 3424NAPA ProSelect Filters — 23424OMNIPARTS — 922030060Parts Master — 73424Parts Plus — G1036Pentius — PFB65472Power Train — PFG1011Power Train — PG9343Premium Guard — PF5472Premium Guard — PF9343Promotive — F65472PPronto — PF5472PUREPRO — F65472Purolator — F65472Ryco — Z623Sakura — FS-1912Service Champ — FG1036Tires Plus — G1036WALMI — WG207IWarner — G1036F65472PG1036KL805
