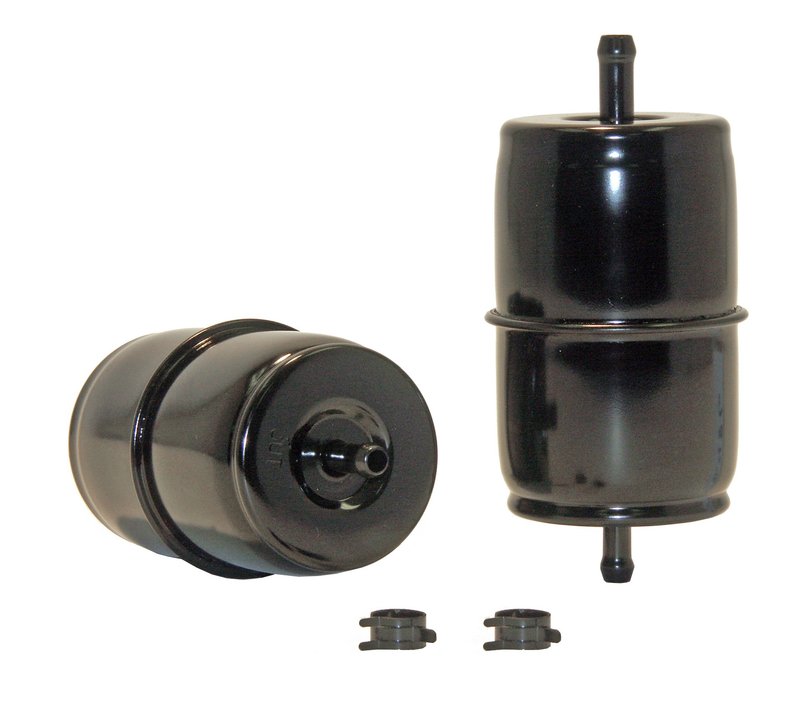

Wix 33486 Fuel Filter

Brand Wix 33486
Class B
Duty Type LD
Height 6
Inlet 3/8
Inner Diameter Top Closed
Media Material Cellulose
Micron 20.00
Outer Diameter Top 2.894
Outlet 8 MM
Style Fuel (Complete In-Line) Filter
Fits Jeep and Renault · 54 vehicles

OE interval guidance. Recommended for OEM fuel filter change intervals.

Cellulose media. High-efficiency filtration matched to the application and fuel type.

Complete in-line filter. Built for dependable fuel system protection in demanding conditions.

Cross-references ACDelco GF517, Atlas (Canada) FF69 and Auto Extra 61633486 for the same application. See all 82.

$27.10Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $27.10
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

WIX 33486 Fuel Filter for Jeep Applications

The WIX 33486 fuel filter is built for Jeep Cherokee, Wrangler, Comanche, and Wagoneer applications that need dependable fuel system protection. With a 20 micron cellulose media and complete in-line fuel filter design, it helps keep contaminants out of the fuel delivery system during daily driving and demanding conditions.

Key Features

  • Part number 33486 WIX fuel filter for select Jeep fuel systems
  • 20 micron filtration for fine particle capture
  • Cellulose media material for application-specific fuel filtration
  • Complete in-line fuel filter style
  • 3/8 inlet and 8 mm outlet connections
  • 6 inch height with 2.894 inch top outer diameter
  • Closed top inner diameter design
  • Built for light-duty use in normal and severe driving conditions

Detailed Description

WIX 33486 is a complete in-line fuel filter engineered for select Jeep models, including 1986-1996 Jeep Cherokee, 1987-1995 Jeep Wrangler, 1986-1992 Jeep Comanche, and 1986-1990 Jeep Wagoneer. It uses cellulose filter media and a 20 micron rating to help trap debris before it reaches the engine, supporting consistent fuel delivery in stop-and-go traffic, short-trip use, dirt-road driving, and other demanding conditions. This part cross-references Purolator F59161 and FRAM G3641 for the same application.

For buyers searching for a Jeep Cherokee fuel filter, Jeep Wrangler fuel filter, or Jeep Comanche fuel filter, the WIX 33486 offers an OE-style service replacement that matches the listed inlet and outlet sizing. It is also a practical choice for Wagoneer fuel filter replacement when the vehicle calls for this in-line configuration.

What It Helps Address

  • Fuel contamination from dirt, rust, and sediment
  • Restricted fuel flow caused by a clogged filter
  • Rough running related to dirty fuel delivery
  • Maintenance intervals for routine fuel filter service
  • Fuel system wear from unfiltered debris

Installation Notes and Tips

Verify inlet and outlet sizing before installation: 3/8 inlet and 8 mm outlet. Confirm the vehicle uses a complete in-line fuel filter in the listed location, and replace the filter according to the OEM service interval or sooner if fuel contamination is suspected. Always relieve fuel system pressure and inspect hose condition before fitting the new filter.

Quality Assurance

WIX fuel filters are built with application-specific media and durable construction to support reliable filtration under a range of driving conditions. The 33486 is specified as a light-duty fuel filter and is intended to meet routine service needs for the listed Jeep applications.

This part fits 54 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
1996JeepCherokee4.0LL6N/A—
1996JeepCherokee2.5LL4N/A—
1995JeepCherokee4.0LL6N/A—
1995JeepCherokee2.5LL4N/A—
1995JeepWrangler4.0LL6N/A—
1995JeepWrangler2.5LL4N/A—
1994JeepCherokee4.0LL6N/A—
1994JeepCherokee2.5LL4N/A—
1994JeepWrangler4.0LL6N/A—
1994JeepWrangler2.5LL4N/A—
1993JeepCherokee4.0LL6N/A—
1993JeepCherokee2.5LL4N/A—
1993JeepWrangler4.0LL6N/A—
1993JeepWrangler2.5LL4N/A—
1992JeepCherokee4.0LL6N/A—
1992JeepCherokee2.5LL4N/A—
1992JeepComanche4.0LL6N/A—
1992JeepComanche2.5LL4N/A—
1992JeepWrangler4.0LL6N/A—
1992JeepWrangler2.5LL4N/A—
1991JeepCherokee4.0LL6N/A—
1991JeepCherokee2.5LL4N/A—
1991JeepComanche4.0LL6N/A—
1991JeepComanche2.5LL4N/A—
1991JeepWrangler4.0LL6N/A—
1991JeepWrangler2.5LL4N/A—
1990JeepCherokee4.0LL6N/A—
1990JeepCherokee2.5LL4N/A—
1990JeepComanche4.0LL6N/A—
1990JeepComanche2.5LL4N/A—
1990JeepWagoneer4.0LL6N/A—
1990JeepWrangler2.5LL4N/A—
1989JeepCherokee4.0LL6N/A—
1989JeepCherokee2.5LL4N/A—
1989JeepComanche4.0LL6N/A—
1989JeepComanche2.5LL4N/A—
1989JeepWagoneer4.0LL6N/A—
1989JeepWrangler2.5LL4N/A—
1988JeepCherokee4.0LL6N/A—
1988JeepCherokee2.5LL4N/A—
1988JeepComanche4.0LL6N/A—
1988JeepComanche2.5LL4N/A—
1988JeepWagoneer4.0LL6N/A—
1988JeepWrangler2.5LL4N/A—
1987JeepCherokee4.0LL6N/A—
1987JeepCherokee2.5LL4N/A—
1987JeepComanche4.0LL6N/A—
1987JeepComanche2.5LL4N/A—
1987JeepWagoneer4.0LL6N/A—
1987JeepWagoneer2.5LL4N/A—
1987JeepWrangler2.5LL4N/A—
1986JeepCherokee2.5LL4N/A—
1986JeepComanche2.5LL4N/A—
1986JeepWagoneer2.5LL4N/A—
Directly replaces or cross-references 82 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
ACDelco — GF517Atlas (Canada) — FF69Auto Extra — 61633486Autopart International — 5002232111Baldwin — BF890BAP Geon — 1138501Barad — GFA76Beck/Arnley — 0430854CARQUEST Premium Filters — 86486CARQUEST Standard — BG9161CARQUEST Standard — R86486Casite Filters — CG3641Champion Automotive — GF79Citgo Petroleum — G145Cobra — WCF595Deluxe Walker — FF333Deutsch — FF676Duralast — FF676DLECOGARD — XF59161Factory Motor Parts — V3486Factory Value — V3486Firestone Ride-Rite — G145Flag Filters - Archived — F3641Fleetguard — FF5003Fleetguard — FF5238FRAM — G3641FRAM — G3641DPGeneral Motors — 25055419GK Industries — GF70Gonher — GG79Hastings — GF167Inter-Continental — ALG8001Interfil — FGI-062Interfil — FGI62IPS — 48134Kem — GF805Kralinator — G102Lazorlite — U116327LUBER-FINER — G145LUBER-FINER — G145-1Mann-Filter — MF1036MicroGard — 33486Micron — F576Mighty Distributing System — GF076Mopar — 33000076Motorcraft — FG946Motorcraft — FG1108NAPA Gold Filters — 3486NAPA ProSelect Filters — 23486Parts Master — 73486Parts Plus — G145Pentius — PFB59161Premium Guard — PF3641Pro-Gauge — G3641Pro-Tec — 530Promotive — F59161PPronto — PF9161PUREPRO — F59161Purolator — F59161Purolator — PFC3161Renault — 893300076Renault — 8933000076Repco — 1138501Repco — RFF109Ryco — Z468Service Champ — 58051Tires Plus — G145Trust — G145Universal Filter Italiana (UFI) — 3166600Unocal 76 — UF517Vera — 1201846WALMI — WG3641Warner — G145Worldparts — W27204330000768933000076DG3641F68G145GF70KL558LG8145
