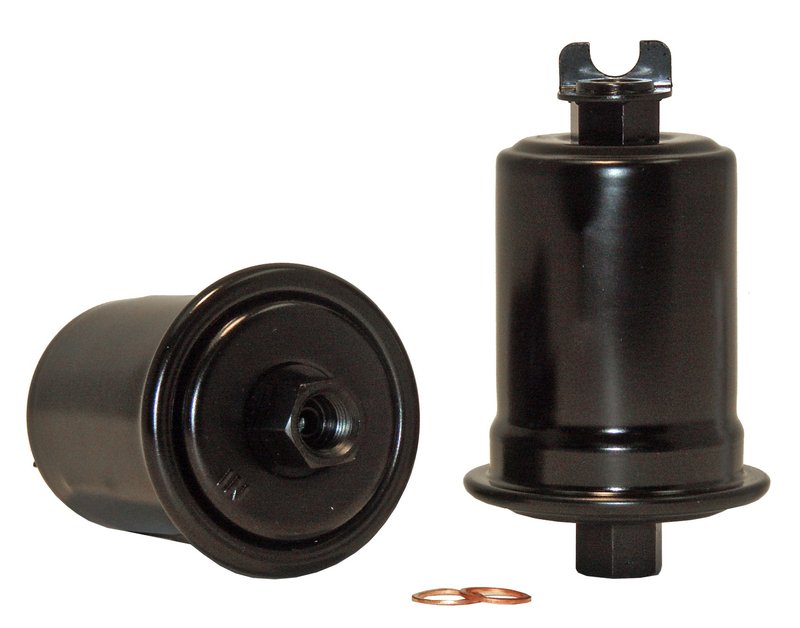

Wix 33491 Fuel Filter

Brand Wix 33491
Class W
Duty Type LD
Height 4.8
Inlet 14X1.5 MM
Inner Diameter Top Closed
Media Material Cellulose
Micron 10.00
Outer Diameter Top 2.79
Outlet 12X1.25 MM
Style Fuel (Complete In-Line) Filter
Fits Lexus and Toyota · 20 vehicles

OE interval friendly. Recommended for OEM fuel filter change intervals.

Cellulose media. Application-specific filtration for efficient fuel cleaning.

Complete in-line filter. Built for dependable fuel system protection.

Cross-references AL Filter ALG-6068, AL Filter ALG-9128 and Auto Extra 61633491 for the same application. See all 68.

$33.12Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $33.12
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

WIX 33491 Fuel Filter for Toyota and Lexus

The WIX 33491 fuel filter is built for normal and severe driving conditions, including dirt roads, stop-and-go traffic, short trips, and highway use. It is a complete in-line fuel filter with 10 micron cellulose media for dependable fuel system protection in applications such as Toyota Camry, Toyota Corolla, Toyota Starlet, and Lexus ES250.

Key Features

  • Complete in-line fuel filter design for direct fuel system service
  • 10 micron cellulose media for fine particle capture
  • 14 x 1.5 mm inlet and 12 x 1.25 mm outlet connections
  • Closed top configuration with 2.79 in outer diameter top
  • 4.8 in height for application-specific fitment
  • Built for OEM fuel filter change intervals
  • Fits 1983-1991 Toyota Camry, 1985-1987 Toyota Corolla, 1983-1984 Toyota Starlet, and 1990-1991 Lexus ES250

Detailed Description

WIX part number 33491 is a fuel filter engineered for application-specific fuel delivery systems that use metric threaded connections. Its cellulose filter media is rated at 10 microns, helping trap fine contaminants before they reach injectors or other fuel system components. The filter construction uses quality materials and a complete in-line style to match the requirements of select Toyota and Lexus vehicles, including the Camry, Corolla, Starlet, and ES250.

This part cross-references Bosch 71502 and Purolator F40263 for the same application.

What This Fuel Filter Helps Address

  • Fuel contamination from rust, dirt, and sediment in the tank or lines
  • Restricted fuel flow caused by a clogged filter element
  • Rough running related to inconsistent fuel delivery
  • Injector wear from fine particulate contamination
  • Service interval replacement for older Toyota and Lexus fuel systems

Installation Notes and Tips

Verify the inlet and outlet thread sizes before installation: 14 x 1.5 mm inlet and 12 x 1.25 mm outlet. Confirm the filter orientation and line routing against the vehicle’s fuel system layout, and replace the filter at the manufacturer-recommended service interval. For fitment, this part is listed for 1983-1991 Toyota Camry, 1985-1987 Toyota Corolla, 1983-1984 Toyota Starlet, and 1990-1991 Lexus ES250.

Quality Assurance

WIX designs this fuel filter with application-specific media and construction for consistent performance under varied driving conditions. The part is intended to meet OEM-style fuel filter service expectations for the listed Toyota and Lexus applications.

This part fits 20 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
1991LexusES2502.5LV6N/A—
1991ToyotaCamry2.0LL4N/A—
1991ToyotaCamry2.5LV6N/A—
1990LexusES2502.5LV6N/A—
1990ToyotaCamry2.0LL4N/A—
1990ToyotaCamry2.5LV6N/A—
1989ToyotaCamry2.0LL4N/A—
1989ToyotaCamry2.5LV6N/A—
1988ToyotaCamry2.0LL4N/A—
1988ToyotaCamry2.5LV6N/A—
1987ToyotaCamry2.0LL4N/A—
1987ToyotaCorolla1.6LL4N/A—
1986ToyotaCamry2.0LL4N/A—
1986ToyotaCorolla1.6LL4N/A—
1985ToyotaCamry2.0LL4N/A—
1985ToyotaCorolla1.6LL4N/A—
1984ToyotaCamry2.0LL4N/A—
1984ToyotaStarlet1.3LL4N/A—
1983ToyotaCamry2.0LL4N/A—
1983ToyotaStarlet1.3LL4N/A—
Directly replaces or cross-references 68 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
AL Filter — ALG-6068AL Filter — ALG-9128Auto Extra — 61633491Autopart International — 5002232219Barad — GFT6031BluePrint Engines — ADC42347Bosch — 0 986 450 510Bosch — 71502CARQUEST Premium Filters — 86491CARQUEST Standard — R86491CARQUEST Standard — R86666COMLINE Auto Parts — CKI13006Delphi — FF20027Duralast — FF660DLECOGARD — XF40263Filtron — PP 895Fleetguard — FF5182GK Industries — GF3031GK Industries — GF3637GK Industries — GF6031Hoffer Products — 7590302Japan Parts — 30-K0-008Japan Parts — FC-577Japan Parts — FC-577SJapan Parts — FC-K08SJapan Parts — JFC-312Japan Parts — JFC-577Japan Parts — JFC-577SJapan Parts — JFC-K08SM Filter — MP 4049Magneti Marelli — FI72Magneti Marelli — FI91Mann-Filter — MF1078Meat & Doria — 4302MicroGard — 33491Micron — F56031Motaquip — VFF 160NAPA Gold Filters — 3491NAPA ProSelect Filters — 23491Nipparts — J1330306Nipparts — J1330313Nipparts — J1333038Nipparts — J1333041Nipparts — J1335039OMNIPARTS — 922030072OMNIPARTS — 922030113OMNIPARTS — 922030115Parts Master — 73491Pentius — PFB54639Pro-Tec — 586Pronto — PF263PUREPRO — F40263Purolator — F 40263Purolator — F40263MSofima — S 1667 BSofima — S 1725 BSofima — S 1771 BToyota — 23030-74020Toyota — 23030-79025Toyota — 23300-19085UFI — 31.667.00UFI — 31.725.00UFI — 31.771.00Warner — G2974Wix Europe — WF8092Wix Europe — WF8224Wix Europe — WF8234ELE6003
