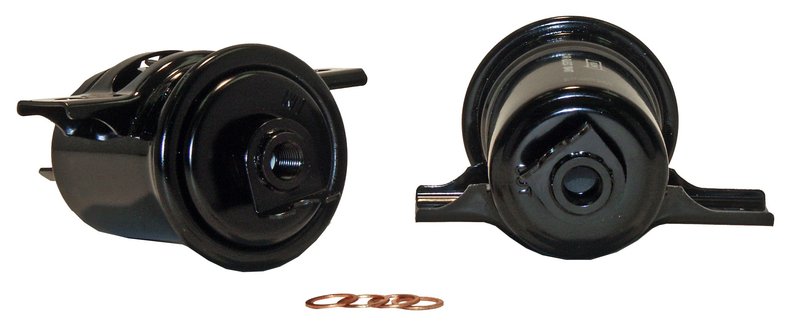

Wix 33497 Fuel Filter
| Brand | Wix 33497 |
|---|---|
| Class | C |
| Duty Type | LD |
| Height | 4.902 |
| Inlet | 12X1.25 MM |
| Inner Diameter Top | Closed |
| Media Material | Cellulose |
| Micron | 10.00 |
| Outer Diameter Top | 2.795 |
| Outlet | 12X1.25 MM |
| Style | Fuel (Complete In-Line) Filter |
| Fits | Dodge and Toyota · 24 vehicles |
OE service intervals. Recommended for OEM fuel filter change intervals.
Cellulose media. High-efficiency filtration matched to the application and fuel type.
Complete in-line filter. Built for dependable fuel system protection in demanding conditions.
Cross-references ACDelco GF654, American Parts 95497 and Atlas (Canada) FF58 for the same application. See all 76.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
WIX 33497 Fuel Filter Overview
The WIX 33497 fuel filter is built for inline fuel filtration in older Toyota applications, including the Toyota 4Runner, Pickup, and Celica. With a 10 micron cellulose media and 12 x 1.25 mm inlet and outlet threads, it is specified for dependable fuel system protection in everyday driving and harsher conditions.
Compatible With 1984-1995 Toyota Pickup, 1985-1995 Toyota 4Runner, and 1985 Toyota Celica, this WIX fuel filter is a direct-fit service part for vehicles that use a complete in-line filter design.
Key Features
- Part number: WIX 33497
- Fuel (complete in-line) filter style
- 10 micron cellulose filter media
- 12 x 1.25 mm inlet and outlet threads
- Closed top design with 2.795 in. outer diameter
- 4.902 in. overall height
- Built for light-duty use
- Cross-reference: Toyota 2330035030 and 2330039035
Detailed Description
WIX designs this fuel filter for consistent fuel cleanliness across normal and severe driving conditions, including dirt roads, construction zones, stop-and-go traffic, short trips, and highway use. The cellulose media is selected for the application and fuel type, helping capture contaminants before they reach the engine’s fuel delivery components. For Toyota Pickup, Toyota 4Runner, and Toyota Celica service work, the WIX 33497 provides a straightforward replacement option that matches the listed thread size and inline filter configuration.
This part number, 33497, is also referenced across several aftermarket and OE catalogs, making it easier to verify replacement needs during maintenance or repair. If you are servicing a Toyota 4Runner fuel filter, Toyota Pickup fuel filter, or Toyota Celica fuel filter application, confirm the thread specification and filter style before installation.
Common Problems This Filter Can Address
- Restricted fuel flow caused by a dirty or clogged filter
- Engine hesitation related to contaminated fuel delivery
- Fuel system wear from particles in the fuel stream
- Poor drivability from overdue fuel filter service
- Maintenance replacement for Toyota fuel filter intervals
Installation Notes and Tips
Verify the inlet and outlet thread size, overall height, and inline filter style against the original part before installation. Replace the filter during scheduled fuel system service and inspect surrounding fuel lines and fittings for wear, corrosion, or leakage. Because this filter is used in older Toyota applications, matching the exact configuration is important for proper fitment.
Fits 1984-1995 Toyota Pickup, 1985-1995 Toyota 4Runner, and 1985 Toyota Celica as listed in the vehicle fitment data.
Quality Assurance
WIX fuel filters are engineered with application-specific media and durable construction to support reliable filtration under a range of operating conditions. The 33497 is specified as a replacement fuel filter for the listed Toyota applications and is recommended for OEM fuel filter change intervals.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1995 | Toyota | 4Runner | 2.4L | L4 | N/A | — |
| 1995 | Toyota | Pickup | 2.4L | L4 | N/A | — |
| 1994 | Toyota | 4Runner | 2.4L | L4 | N/A | — |
| 1994 | Toyota | Pickup | 2.4L | L4 | N/A | — |
| 1993 | Toyota | 4Runner | 2.4L | L4 | N/A | — |
| 1993 | Toyota | Pickup | 2.4L | L4 | N/A | — |
| 1992 | Toyota | 4Runner | 2.4L | L4 | N/A | — |
| 1992 | Toyota | Pickup | 2.4L | L4 | N/A | — |
| 1991 | Toyota | 4Runner | 2.4L | L4 | N/A | — |
| 1991 | Toyota | Pickup | 2.4L | L4 | N/A | — |
| 1990 | Toyota | 4Runner | 2.4L | L4 | N/A | — |
| 1990 | Toyota | Pickup | 2.4L | L4 | N/A | — |
| 1989 | Toyota | 4Runner | 2.4L | L4 | N/A | — |
| 1989 | Toyota | Pickup | 2.4L | L4 | N/A | — |
| 1988 | Toyota | 4Runner | 2.4L | L4 | N/A | — |
| 1988 | Toyota | Pickup | 2.4L | L4 | N/A | — |
| 1987 | Toyota | 4Runner | 2.4L | L4 | N/A | — |
| 1987 | Toyota | Pickup | 2.4L | L4 | N/A | — |
| 1986 | Toyota | 4Runner | 2.4L | L4 | N/A | — |
| 1986 | Toyota | Pickup | 2.4L | L4 | N/A | — |
| 1985 | Toyota | 4Runner | 2.4L | L4 | N/A | — |
| 1985 | Toyota | Celica | 2.4L | L4 | N/A | — |
| 1985 | Toyota | Pickup | 2.4L | L4 | N/A | — |
| 1984 | Toyota | Pickup | 2.4L | L4 | N/A | — |
