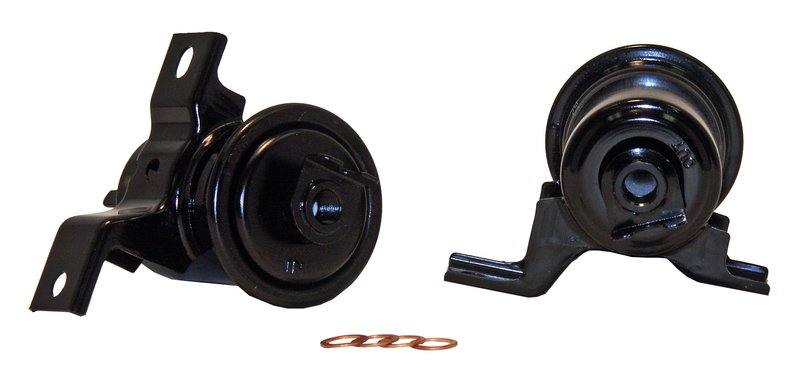

Wix 33563 Fuel Filter

Brand Wix 33563
Class W
Duty Type LD
Height 5.079
Inlet 12X1.25 MM
Inner Diameter Top Closed
Media Material Cellulose
Micron 7.00
Outer Diameter Top 2.795
Outlet 12X1.25 MM
Style Fuel (Complete In-Line) Filter
Fits Lexus and Toyota · 7 vehicles

OE service intervals. Recommended for OEM fuel filter change intervals.

Cellulose media. Application-specific filtration for strong engine protection.

Complete in-line filter. Built for efficient fuel flow and dependable performance.

Cross-references ACDelco GF808, American Parts 95563 and Auto Extra 61633563 for the same application. See all 36.

$31.25Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $31.25
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

WIX 33563 Fuel Filter for Toyota and Lexus

The WIX 33563 fuel filter is a complete in-line fuel filter built for dependable engine protection in everyday driving and harsher conditions. It is a direct-fit style filter for select Toyota Land Cruiser and Lexus LX450 applications, with 12 x 1.25 mm inlet and outlet threads and 7-micron cellulose media for fine particle capture.

Key Features

  • Complete in-line fuel filter design
  • 7.00 micron cellulose media for fuel system filtration
  • 12 x 1.25 mm inlet and outlet connections
  • Closed top inner diameter
  • 5.079 in. height and 2.795 in. outer diameter top
  • Built for normal and severe driving conditions, including stop-and-go traffic, short trips, dirt roads, and interstate use

Detailed Product Overview

WIX 33563 is engineered for fuel system protection where consistent filtration matters. The filter media is matched to the application and fuel type, helping maintain clean fuel delivery while supporting OEM-style service intervals. This part cross-references Toyota 2330069045 and ACDelco GF808 for the same application. It is a strong fitment match for 1993-1997 Toyota Land Cruiser and 1996-1997 Lexus LX450 fuel filter service.

What This Fuel Filter Helps Address

  • Fuel contamination from dirt and debris
  • Restricted fuel flow caused by a loaded filter
  • Rough running related to poor fuel cleanliness
  • Service replacement for scheduled fuel filter maintenance
  • Protection needs for vehicles driven in severe conditions

Installation Notes and Tips

Verify the 12 x 1.25 mm inlet and outlet thread size before installation. Confirm the filter orientation and mounting location against the vehicle’s fuel system layout, and replace the filter at the manufacturer-recommended interval. For fitment, this part fits 1993-1997 Toyota Land Cruiser and fits 1996-1997 Lexus LX450, N/A. The WIX 33563 is also a direct search match for Toyota Land Cruiser fuel filter and Lexus LX450 fuel filter replacement.

Quality Assurance

WIX fuel filters are built with application-specific media and durable construction to support reliable filtration under a wide range of operating conditions. The 33563 follows WIX’s OE-style service approach for fuel filter replacement on the listed vehicles.

This part fits 7 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
1997LexusLX4504.5LL6N/A—
1997ToyotaLand Cruiser4.5LL6N/A—
1996LexusLX4504.5LL6N/A—
1996ToyotaLand Cruiser4.5LL6N/A—
1995ToyotaLand Cruiser4.5LL6N/A—
1994ToyotaLand Cruiser4.5LL6N/A—
1993ToyotaLand Cruiser4.5LL6N/A—
Directly replaces or cross-references 36 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
ACDelco — GF808American Parts — 95563Auto Extra — 61633563Autopart International — 5002232220Baldwin — BF1192Baldwin — BF46206Beck/Arnley — 0430992Bosch — 71641CARQUEST Premium Filters — 86563Citgo Petroleum — G6542Duralast — FF805DLDuralast — G6542ECOGARD — XF55135FRAM — G7731General Motors — 25313810GK Industries — GF6055Hastings — GF273Inter-Continental — ALG6064Interfil — FGI223LUBER-FINER — G6542MicroGard — 33563Mighty Distributing System — F55135Mighty Distributing System — G6542Mighty Distributing System — GF207NAPA Gold Filters — 3563OMNIPARTS — 922030090Parts Master — 73563Parts Plus — G6542Premium Guard — PF7731Pronto — PF5135PUREPRO — G6542Purolator — F55135Ryco — Z467Toyota — 2330069045Warner — G6542G6542
