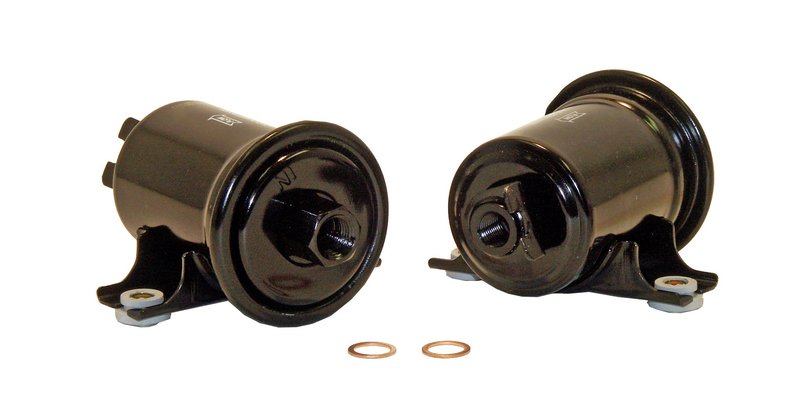

Wix 33565 Fuel Filter
| Brand | Wix 33565 |
|---|---|
| Class | W |
| Duty Type | Ld |
| Height | 4.843 |
| Inlet | 14x1.5 mm |
| Inner Diameter Top | Closed |
| Media Material | Cellulose |
| Micron | 10.00 |
| Outer Diameter Top | 2.795 |
| Outlet | 12x1.25 mm |
| Style | Fuel (complete in-line) filter |
| Fits | Geo and Toyota · 20 vehicles |
OE interval recommended. Recommended for OEM fuel filter change intervals.
Cellulose media. Application-specific filtration for the fuel type being used.
Complete in-line filter. Built for dependable fuel system protection in varied conditions.
Cross-references ACDelco FS 9171 E, ACDelco FS 9289 E and ACDelco GF629 for the same application. See all 108.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
WIX 33565 Fuel Filter for Corolla and Prizm
The WIX 33565 fuel filter is built for normal and severe driving conditions, including dirt roads, stop-and-go traffic, short trips, and highway use. It uses cellulose media and a 10-micron rating to help maintain clean fuel delivery in compatible Toyota Corolla and Geo Prizm applications.
Key Features
- Complete in-line fuel filter style for fuel system service
- 10-micron filtration with cellulose media
- 14x1.5 mm inlet and 12x1.25 mm outlet threads
- Closed top design with 4.843-inch height and 2.795-inch top outer diameter
- Built for OEM fuel filter change intervals
- Compatible with 1993-1997 Toyota Corolla and 1993-1997 Geo Prizm
Detailed Description
WIX part number 33565 is a complete in-line fuel filter engineered for light-duty passenger vehicles. The filter media is selected for the fuel type and application, helping capture fine contaminants before they reach the engine. For drivers searching for a fuel filter for 1993-1997 Toyota Corolla or a replacement fuel filter for 1993-1997 Geo Prizm, this part provides a direct service option that aligns with routine maintenance intervals.
This part cross-references Toyota (e.g., 23300-11210, 23300-15040) for the same application.
What It Helps Address
- Restricted fuel flow caused by a loaded or dirty filter
- Fuel contamination from sediment and debris in the tank or lines
- Rough running related to inconsistent fuel delivery
- Maintenance needs tied to OEM fuel filter replacement intervals
- Service issues on older Corolla and Prizm fuel systems
Installation Notes and Tips
Verify inlet and outlet thread sizes before installation: 14x1.5 mm inlet and 12x1.25 mm outlet. Confirm the filter orientation and mounting location match the vehicle’s existing in-line setup. Always relieve fuel system pressure before removal, and inspect the surrounding fuel lines and fittings for wear or corrosion during service.
Quality Assurance
WIX designs this fuel filter with application-specific media and durable construction to support consistent performance under varied driving conditions. The 33565 is intended for routine fuel system maintenance on compatible Toyota Corolla and Geo Prizm models.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 1997 | Geo | Prizm | 1.8L | L4 | — |
| 1997 | Geo | Prizm | 1.6L | L4 | — |
| 1997 | Toyota | Corolla | 1.6L | L4 | — |
| 1997 | Toyota | Corolla | 1.8L | L4 | — |
| 1996 | Geo | Prizm | 1.8L | L4 | — |
| 1996 | Geo | Prizm | 1.6L | L4 | — |
| 1996 | Toyota | Corolla | 1.6L | L4 | — |
| 1996 | Toyota | Corolla | 1.8L | L4 | — |
| 1995 | Geo | Prizm | 1.8L | L4 | — |
| 1995 | Geo | Prizm | 1.6L | L4 | — |
| 1995 | Toyota | Corolla | 1.6L | L4 | — |
| 1995 | Toyota | Corolla | 1.8L | L4 | — |
| 1994 | Geo | Prizm | 1.8L | L4 | — |
| 1994 | Geo | Prizm | 1.6L | L4 | — |
| 1994 | Toyota | Corolla | 1.6L | L4 | — |
| 1994 | Toyota | Corolla | 1.8L | L4 | — |
| 1993 | Geo | Prizm | 1.8L | L4 | — |
| 1993 | Geo | Prizm | 1.6L | L4 | — |
| 1993 | Toyota | Corolla | 1.6L | L4 | — |
| 1993 | Toyota | Corolla | 1.8L | L4 | — |
