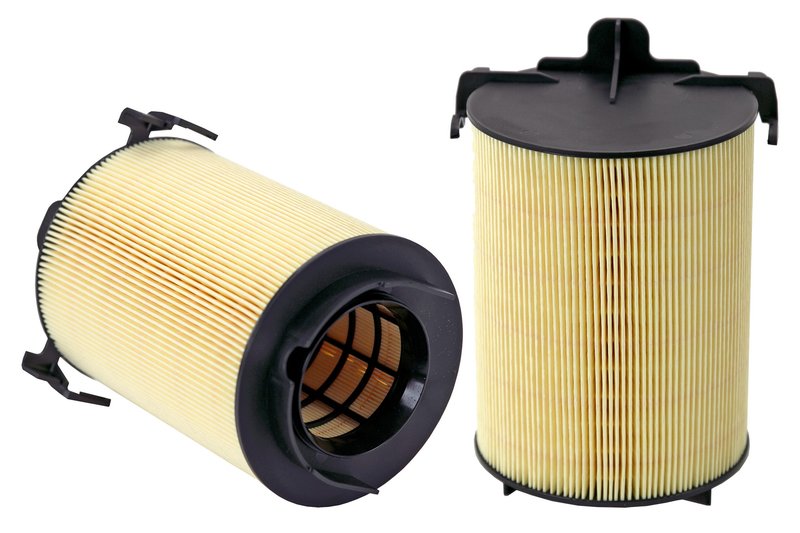

Wix 49013 Air Filter

WIX 49013 Engine Air Filter Overview

The WIX 49013 engine air filter is a panel-style replacement built for normal commuting and severe-duty driving conditions, including stop-and-go traffic, dirt roads, construction zones, short trips, and highway use. It is a direct-fit air filter for select Volkswagen and Audi applications, including Volkswagen Jetta, Volkswagen Caddy, Audi A3, Volkswagen Passat, and Volkswagen Golf.

• Panel-style engine air filter for light-duty vehicles
• Enhanced cellulose media with phenolic resin treatment for added moisture resistance
• 30% more media than comparable OES filters
• High-tear strength polyurethane seal on applicable designs for temperature resistance
• Laboratory tested to ISO 5011 standards with at least 99.5% efficiency based on Wix 42389
• Direct replacement for WIX 49013 and select OE cross-references

Filter Construction and Fitment

This WIX 49013 air filter uses cellulose media and a closed top with a 2.834-inch inner diameter at the bottom, 5.354-inch outer diameter at the bottom, and 8.677-inch overall height. The design is intended to maintain airflow while capturing airborne contaminants before they reach the engine intake system. This part cross-references FRAM CA9800 and Purolator A38213 for the same application.

Compatible With 2014-2017 Volkswagen Caddy, N/A; 2014-2017 Volkswagen Jetta, N/A; 2008-2015 Audi A3, N/A; 2011-2013 Volkswagen Clasico, N/A; 2010-2013 Volkswagen Jetta, N/A; 2010 Volkswagen Passat, N/A; and 2007 Volkswagen Golf, N/A.

Common Problems This Filter Can Address

• Restricted airflow caused by a dirty or clogged engine air filter
• Dust and road debris entering the intake system
• Reduced filtration performance during stop-and-go driving
• Moisture-related filter breakdown in demanding weather conditions
• Premature wear from contaminated intake air

Installation Notes and Quality Assurance

Install the filter in the factory airbox and confirm the housing is clean before sealing it in place. Check the filter orientation against the airbox design and inspect the sealing surface so the element seats evenly. For service intervals, follow the vehicle manufacturer’s air filter replacement schedule unless inspection shows earlier restriction.

WIX designs this filter for OEM-style replacement intervals and validates performance through ISO 5011 laboratory testing. The construction focuses on durability, moisture resistance, and consistent filtration for Volkswagen Jetta, Audi A3, and related applications. Part number 49013 is also listed as WIX 49013 for ordering and catalog lookup.
