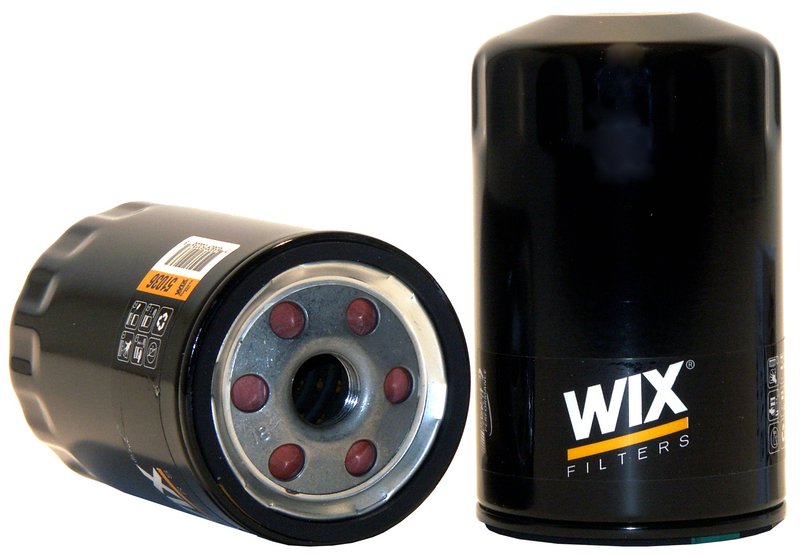

Wix 51036 Engine Oil Filter

Overview of Wix 51036 Engine Oil Filter

The Wix 51036 engine oil filter is designed for reliable oil filtration in a range of GM and Isuzu vehicles. This spin-on lube filter features enhanced cellulose media and an anti-drain back valve to maintain oil flow and engine protection during operation.

• Anti-Drain Back Valve to prevent dry starts
• Enhanced cellulose media for effective contaminant capture
• Spin-on style with 18x1.5 mm thread size for easy installation
• Flow rate between 7-9 gallons per minute
• Compatible with multiple Buick, Chevrolet, GMC, Cadillac, and Isuzu models
• Class A duty type with a burst pressure rating of 325 psi
• Micron rating of 21.00 for balanced filtration and flow

Technical Specifications and Features

The Wix 51036 oil filter uses enhanced cellulose media to provide efficient filtration while maintaining optimal oil flow rates between 7 and 9 gallons per minute. Its anti-drain back valve helps prevent oil from draining out of the filter when the engine is off, reducing wear during startup. The filter’s spin-on design with an 18x1.5 mm thread size ensures compatibility with a wide range of vehicles, including Chevrolet Silverado, GMC Sierra, Buick Century, and Cadillac DeVille models. With a burst pressure rating of 325 psi and a Class A duty type, this filter is engineered to withstand demanding engine conditions.

Compatible Vehicles and Applications

This Wix 51036 engine oil filter is compatible with various GM and Isuzu vehicles, including but not limited to:

• Chevrolet Silverado 1500, 2500, 3500
• GMC Sierra 1500, 2500, 3500
• Buick Century, Regal, LeMans
• Cadillac DeVille, Escalade
• Isuzu Rodeo, Hombre
• Other models such as Chevrolet Camaro, Blazer, and Pontiac Grand Prix

Common Issues Addressed by Wix 51036 Oil Filter

• Prevents engine wear caused by contaminants in the oil
• Reduces risk of dry starts with anti-drain back valve
• Maintains consistent oil flow under varying engine loads
• Protects engine components from premature failure
• Helps maintain engine performance and longevity

Installation Notes and Tips

When installing the Wix 51036 oil filter, ensure the engine is cool and the oil is drained. Apply a light coat of clean engine oil to the filter gasket before threading it onto the engine. Tighten the filter according to manufacturer specifications, typically hand-tight plus a quarter turn. Check for leaks after installation and monitor oil levels during initial operation.

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for filtration efficiency and durability. The 51036 model undergoes rigorous testing to ensure burst pressure and flow rate specifications are met. While specific warranty details may vary, Wix generally offers coverage against defects in materials and workmanship. Refer to Wix documentation for complete warranty information.
