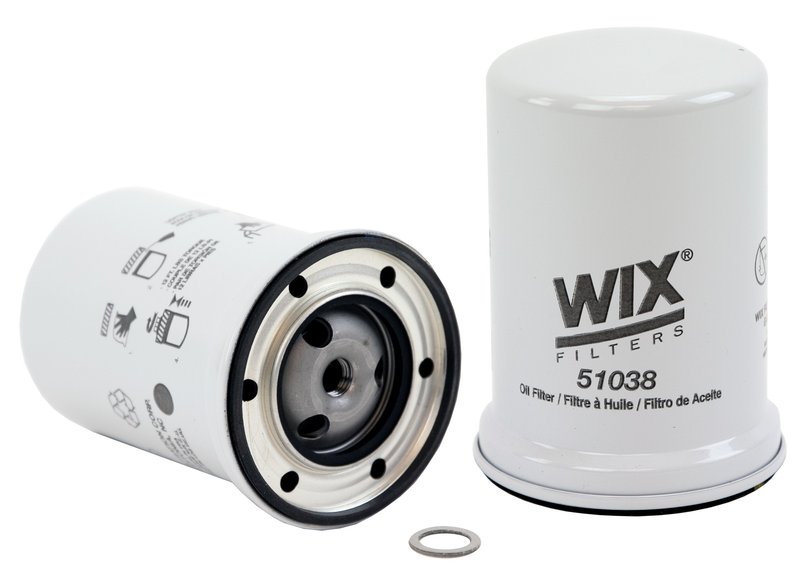

Wix 51038 Engine Oil Filter

Overview of Wix 51038 Engine Oil Filter

The Wix 51038 engine oil filter is designed for reliable oil filtration in various light-duty vehicles. Featuring enhanced cellulose media and a spin-on lube filter style, this filter supports efficient engine protection and oil flow management.

• Spin-on lube filter design for easy installation
• Enhanced cellulose media with 21-micron filtration
• Flow rate between 3 to 6 gallons per minute
• Class C duty type suitable for light-duty applications
• Burst pressure rated at 200 psi
• Thread size 7/16-20 with closed inner diameter top
• Height of 4.751 inches and outer diameter top of 3.409 inches
• No anti-drain back valve or bypass relief valve setting
• Beta ratio of 2/20=6/20 for particle retention efficiency

Technical Details and Specifications

The Wix 51038 oil filter utilizes enhanced cellulose media to provide effective filtration at a 21-micron rating, capturing contaminants that can cause engine wear. Its spin-on style allows for straightforward replacement without specialized tools. The filter supports a flow rate of 3 to 6 gallons per minute, ensuring adequate oil circulation under normal operating conditions. With a burst pressure rating of 200 psi, it maintains structural integrity under high pressure. The filter’s thread size of 7/16-20 and closed inner diameter top are designed to fit specific engine configurations. This filter does not include an anti-drain back valve or bypass relief valve, which is typical for certain light-duty engine applications.

Compatible Vehicles and Applications

The Wix 51038 engine oil filter is compatible with a range of light-duty vehicles requiring a Class C duty type filter. It is commonly used in various makes and models that specify a 7/16-20 thread size and a 4.751-inch height filter. For example, it fits certain Ford, Chevrolet, and Dodge models that require a spin-on lube filter with these specifications. Always verify vehicle compatibility by cross-referencing the part number 51038 with your vehicle’s manufacturer recommendations.

Common Issues Addressed by Wix 51038 Oil Filter

• Prevents engine wear caused by contaminants in the oil
• Maintains proper oil flow to critical engine components
• Reduces risk of oil pressure loss due to filter collapse
• Helps avoid engine damage from clogged or inefficient filters
• Supports engine longevity by maintaining clean oil circulation

Installation Notes and Tips

When installing the Wix 51038 oil filter, ensure the engine is cool to avoid burns. Apply a thin layer of clean engine oil to the filter gasket before installation to ensure a proper seal. Tighten the filter according to manufacturer torque specifications, typically hand-tight plus a quarter turn. Check for leaks after installation and during initial engine operation. Dispose of the used filter according to local environmental regulations.

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for filtration and durability. The 51038 model undergoes rigorous testing for burst pressure and flow rate to ensure consistent performance. While specific warranty details may vary, Wix generally offers coverage against defects in materials and workmanship. Consult the product documentation or Wix customer service for warranty terms related to the 51038 engine oil filter.
