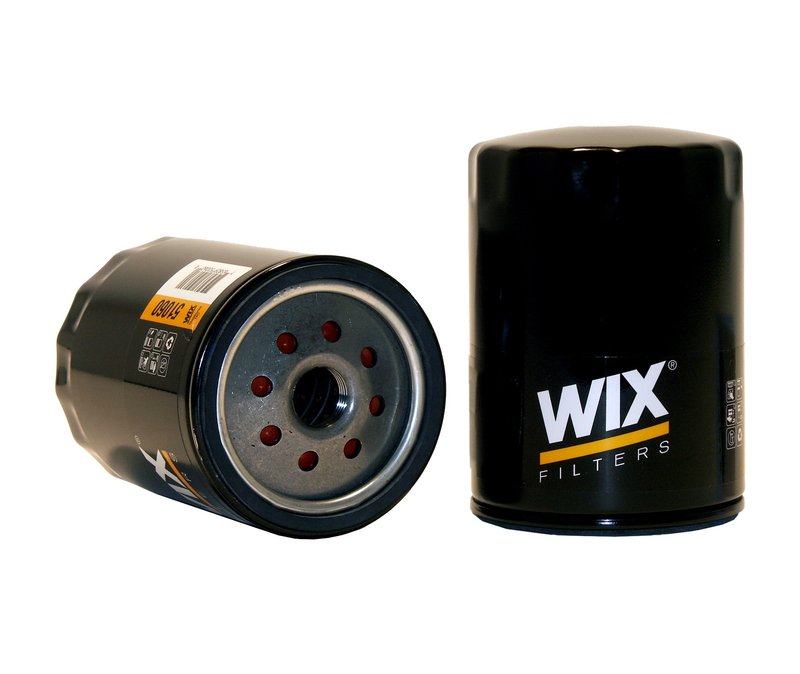

Wix 51060 Engine Oil Filter

WIX 51060 Engine Oil Filter

The WIX 51060 engine oil filter is built for dependable oil filtration in everyday driving and severe service conditions. It is a spin-on lube filter for vehicles that call for a 13/16-16 thread and a closed top design, with fitment across many Chevrolet, GMC, Cadillac, and Hummer applications.

For drivers maintaining a Chevrolet Silverado 2500, GMC Yukon, or Chevrolet Tahoe, this filter supports routine oil service with conventional, synthetic, or synthetic-blended motor oils. The WIX 51060 is also a direct replacement for many older GM truck and van applications, including long-running fleet and heavy-duty platforms.

Key Features

• Enhanced cellulose media for oil filtration performance
• Anti-drain back valve helps reduce dry starts after shutdown
• Flow rate rated at 9-11 GPM
• Micron rating: 21.00
• Burst pressure: 270
• No bypass relief valve setting
• Spin-on lube filter style with 13/16-16 thread size
• Compatible with OEM oil change intervals, typically 3,750 to 10,000 miles, not to exceed 12 months

Detailed Description

WIX engineered the 51060 to trap dirt and contaminants while maintaining oil flow under normal and severe driving conditions such as stop-and-go traffic, dirt roads, construction sites, short trips, and interstate travel. The filter is rated to capture up to 50% more dirt and contaminants than Protec, and laboratory testing data lists 99% efficiency at 23 microns on referenced WIX applications. When applicable, the flexible silicone anti-drain back valve helps keep oil in the filter after shutdown, which supports quicker oil pressure on restart.

This part cross-references FRAM PH5 and NAPA Gold 1060 for the same application. It is a common oil filter choice for Chevrolet Silverado 3500, Chevrolet Express 2500, and GMC Savana 3500 service intervals where the OE filter specification calls for this size.

What It Helps Address

• Engine wear from contaminated motor oil
• Dry starts after the vehicle sits
• Reduced filtration performance during severe-duty use
• Routine maintenance on high-mileage GM trucks and vans
• Oil service needs for fleet, towing, and stop-and-go driving

Installation Notes and Tips

Verify the thread size, gasket sealing surface, and filter clearance before installation. Replace the filter at the manufacturer-recommended oil change interval and pre-fill only if the vehicle service procedure allows it. For fitment confirmation, check the vehicle’s OE filter specification against the WIX 51060 before service.

Compatible With many Chevrolet, GMC, Cadillac, and Hummer applications, including 1991-2000 Chevrolet C2500, 1995-2000 Chevrolet Tahoe, and 1994-1999 GMC Yukon. Additional fitment includes 1996-2002 Chevrolet Express 1500, 1996-2002 GMC Savana 2500, and 2004-2006 Chevrolet Silverado 3500.

Quality Assurance

WIX publishes laboratory test performance data for this filter and specifies use with OEM oil and filter change intervals. The 51060 is built as a Class A, light-duty spin-on oil filter for routine service and severe-duty driving conditions.
