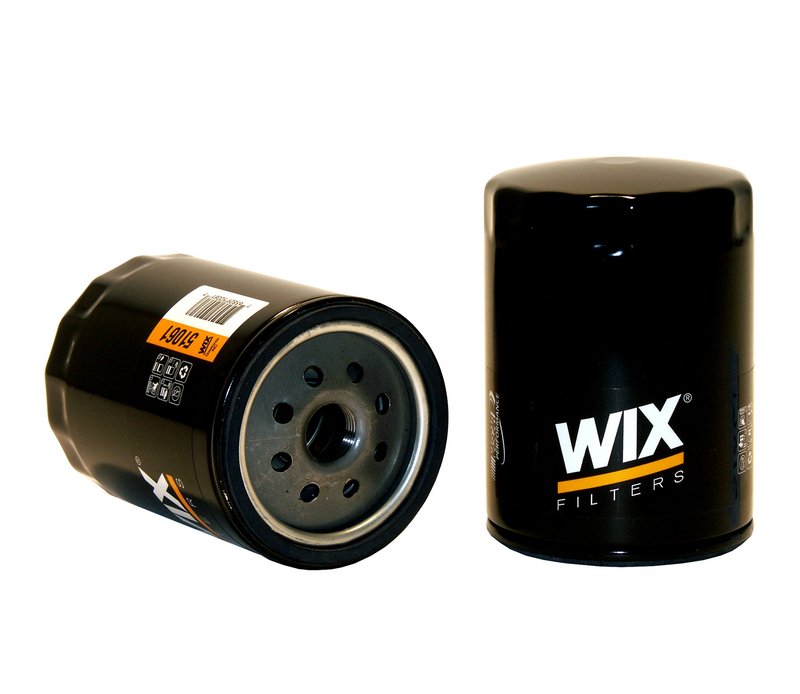

Wix 51061 Engine Oil Filter

Overview of Wix 51061 Engine Oil Filter

The Wix 51061 engine oil filter is designed for reliable oil filtration in select Chevrolet, Ford, and GMC vehicles. This spin-on lube filter offers consistent flow rates and filtration efficiency tailored for light-duty applications.

• Spin-on lube filter style with 13/16-16 thread size
• Enhanced cellulose media with 21-micron filtration rating
• Flow rate between 9 to 11 gallons per minute
• Height of 5.178 inches and outer diameter of 3.66 inches
• Beta ratio of 2/20=6/20 for effective contaminant capture
• No anti-drain back valve or bypass relief valve setting
• Designed for Class A, light-duty engine use with burst pressure of 285 psi

Technical Details and Specifications

The Wix 51061 oil filter features enhanced cellulose media that filters particles down to 21 microns, providing adequate protection for engine components in Chevrolet, Ford, and GMC trucks and SUVs. Its spin-on design with a 13/16-16 thread size ensures straightforward installation and secure fitment. The filter maintains a flow rate of 9 to 11 gallons per minute, supporting efficient oil circulation under normal operating conditions. With a burst pressure rating of 285 psi, it withstands typical engine oil system pressures without failure. The filter’s height of 5.178 inches and outer diameter of 3.66 inches are optimized for compatibility with various models including Chevrolet Blazer, Ford F-series trucks, and GMC Suburban variants.

Compatible Vehicles and Applications

This Wix 51061 engine oil filter is compatible with a range of Chevrolet, Ford, and GMC vehicles, including but not limited to:

• Chevrolet C10, C20, C1500, C2500, C3500, Blazer, El Camino, and Suburban models
• Ford B-200, F-series trucks such as F1500, F2500, F3500, and related Suburban models
• GMC Jimmy, K-series trucks (K5, K10, K20, K30), and Suburban variants

Common Issues Addressed by Wix 51061 Oil Filter

• Prevents engine wear by filtering out contaminants and debris
• Maintains proper oil flow to critical engine parts
• Reduces risk of oil system pressure drops due to clogging
• Protects against premature engine component failure
• Helps maintain engine performance and longevity in light-duty trucks and SUVs

Installation Notes and Tips

• Ensure the engine is cool before removing the old oil filter
• Apply a thin layer of clean engine oil to the gasket of the new Wix 51061 filter before installation
• Hand-tighten the filter until the gasket contacts the mounting surface, then tighten an additional 3/4 turn
• Check for leaks after installation and during initial engine operation
• Follow vehicle manufacturer’s oil change intervals and specifications

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for filtration efficiency and durability. The 51061 model is built with enhanced cellulose media and tested for burst pressure and flow rate to ensure reliable performance in compatible Chevrolet, Ford, and GMC vehicles. While specific warranty details may vary, Wix typically offers coverage against defects in materials and workmanship. Refer to Wix documentation for complete warranty terms.
