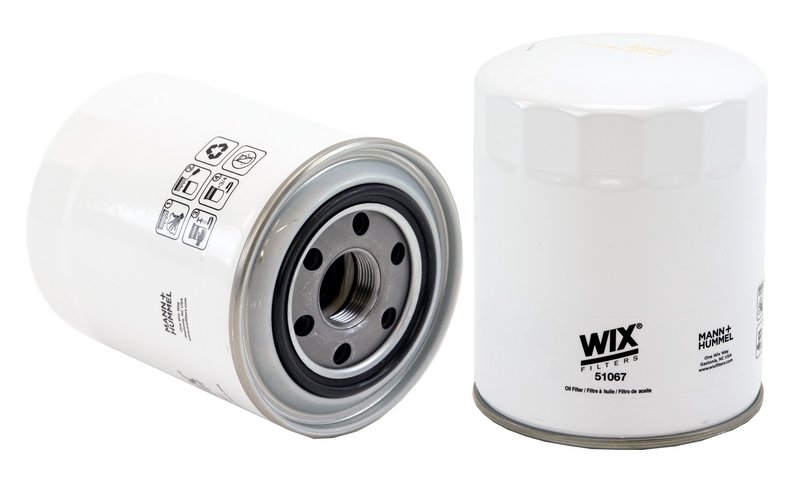

Wix 51067 Engine Oil Filter

Overview of Wix 51067 Engine Oil Filter

The Wix 51067 engine oil filter is designed for reliable oil filtration in select Ford, Hyundai, and Mitsubishi vehicles. This spin-on lube filter supports engine longevity by maintaining clean oil flow and protecting critical engine components.

• Anti-drain back valve to prevent dry starts
• Burst pressure rating of 270 psi for durability
• Bypass relief valve setting between 19-22 psi
• Flow rate of 11-13 gallons per minute
• Cellulose media material with 30 micron filtration
• Spin-on style with 26x1.5 mm thread size
• Height of 5.362 inches and outer diameter of 4.016 inches

Technical Details and Specifications

The Wix 51067 oil filter features a cellulose media material that filters particles down to 30 microns, ensuring effective removal of contaminants from engine oil. Its anti-drain back valve helps maintain oil pressure during engine shutdown, reducing wear during startup. The bypass relief valve is set between 19 and 22 psi, allowing oil to bypass the filter element if it becomes clogged, preventing oil starvation. With a burst pressure rating of 270 psi, this filter is built to withstand high-pressure conditions. The flow rate of 11 to 13 gallons per minute supports adequate oil circulation for engines requiring a Class D, light-duty filter.

Compatible Vehicles and Applications

This Wix 51067 engine oil filter is compatible with several vehicle models, including the Ford Bronco II and Ranger, Hyundai H200, and Mitsubishi L200. It is specifically designed to meet the filtration needs of these vehicles, ensuring proper fit and function.

Common Engine Issues Addressed

• Prevents engine wear caused by contaminated oil
• Reduces risk of oil starvation during cold starts
• Protects against filter clogging with bypass valve
• Maintains consistent oil flow under varying engine loads
• Helps extend engine component life by filtering debris

Installation Notes and Tips

When installing the Wix 51067 oil filter, ensure the engine is cool to avoid burns. Apply a thin layer of clean engine oil to the rubber gasket before threading the filter onto the engine. Tighten the filter according to manufacturer specifications, typically hand-tight plus a quarter turn. Check for leaks after installation and monitor oil pressure during initial engine operation.

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for filtration and durability. The 51067 model undergoes rigorous testing to ensure consistent performance under normal operating conditions. While specific warranty details may vary, Wix generally offers coverage against defects in materials and workmanship. Refer to Wix documentation for exact warranty terms.
