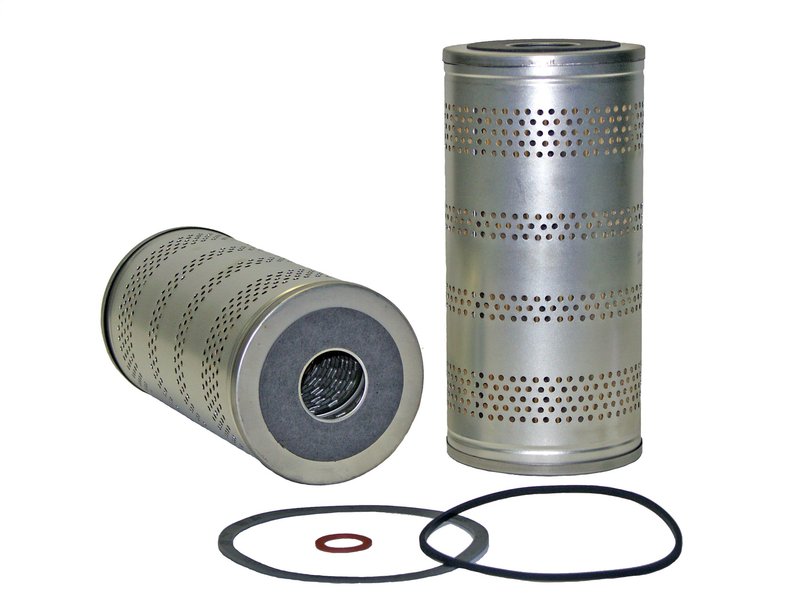

Wix 51136 Hydraulic Filter

Overview of Wix 51136 Hydraulic Filter

The Wix 51136 hydraulic filter is designed to provide reliable filtration for hydraulic systems in various heavy-duty vehicles. Featuring enhanced cellulose media and a cartridge hydraulic metal canister style, this filter supports efficient fluid cleanliness and system protection.

• Beta Ratio: 2/20=25/44 for effective particle retention
• Class: Hw (Heavy-duty hydraulic filter classification)
• Duty Type: Hd (Heavy-duty applications)
• Height: 9.000 inches
• Inner Diameter Bottom: 1.450 inches
• Outer Diameter Top and Bottom: 4.312 inches
• Media Material: Enhanced cellulose for improved filtration
• Micron Rating: 32.00 microns
• Style: Cartridge hydraulic metal canister

Technical Details and Specifications

The Wix 51136 hydraulic filter is engineered with a 32-micron rating, balancing fluid flow and contaminant capture to maintain hydraulic system performance. Its enhanced cellulose media offers durability and effective filtration, suitable for heavy-duty hydraulic systems. The cartridge design with a metal canister ensures structural integrity under high pressure and extended service intervals. With a height of 9 inches and consistent outer diameters of 4.312 inches, this filter fits specific hydraulic filter housings requiring these dimensions. The beta ratio of 2/20=25/44 indicates the filter's efficiency in removing particles of various sizes, supporting system longevity.

Applications and Problem Solving

• Prevents hydraulic system contamination by filtering out particles down to 32 microns
• Reduces wear and tear on hydraulic pumps and valves
• Maintains fluid cleanliness in heavy-duty vehicles such as construction equipment and agricultural machinery
• Helps avoid system failures caused by clogged or inefficient filters
• Supports consistent hydraulic performance under demanding operating conditions

Installation Notes and Tips

When installing the Wix 51136 hydraulic filter, ensure compatibility with your vehicle’s hydraulic system by verifying dimensions and specifications. Properly clean the filter housing before installation to prevent contamination. Follow manufacturer torque specifications for securing the cartridge filter to avoid leaks or damage. Regular inspection and replacement according to the vehicle’s maintenance schedule will help maintain optimal hydraulic system function.

Quality Assurance and Warranty

Wix hydraulic filters are manufactured to meet industry standards for filtration and durability. The 51136 model undergoes rigorous quality control to ensure consistent performance in heavy-duty applications. While specific warranty details are not provided here, Wix typically offers warranties covering defects in materials and workmanship. Consult Wix documentation or authorized distributors for warranty terms related to this hydraulic filter.
