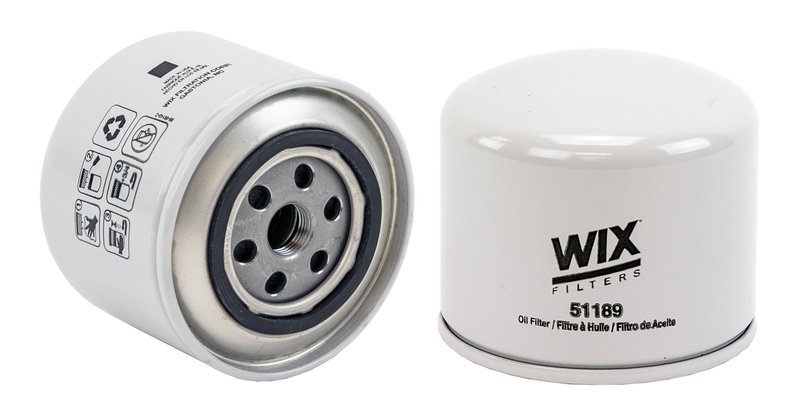

Wix 51189 Engine Oil Filter

Overview of Wix 51189 Engine Oil Filter

The Wix 51189 engine oil filter is designed to provide reliable filtration for various light-duty vehicles. Featuring a spin-on lube filter style and a cellulose media material, this filter helps maintain engine performance by effectively removing contaminants from engine oil.

• Anti-drain back valve to prevent dry starts
• Burst pressure rating of 410 psi for durability
• Bypass relief valve setting between 8-11 psi
• Flow rate of 7-9 gallons per minute for efficient oil circulation
• Spin-on design with 3/4-16 thread size for easy installation
• 25 micron filtration rating for effective contaminant removal
• Compact dimensions: 3.895 inches height and 4.282 inches outer diameter

Technical Specifications and Features

The Wix 51189 oil filter is classified as a Class D, light-duty (Ld) filter, suitable for a range of automotive applications. Its cellulose media material provides a balance of filtration efficiency and flow rate, capturing particles down to 25 microns. The anti-drain back valve helps maintain oil pressure during engine shutdown, reducing wear during startup. The bypass relief valve activates between 8 and 11 psi to ensure continuous oil flow even if the filter becomes clogged. With a burst pressure of 410 psi, this filter is built to withstand demanding engine conditions.

Compatible Vehicles and Applications

This engine oil filter is compatible with various light-duty vehicles, including popular makes and models such as Ford F-150, Chevrolet Silverado, and Dodge Ram trucks. The Wix 51189 is often sought after for its fitment in these models due to its thread size and filtration capabilities. When searching for an engine oil filter replacement for your Ford F-150 or Chevrolet Silverado, referencing the part number 51189 ensures proper fit and function.

Common Issues Addressed by Wix 51189

• Prevents engine wear caused by contaminated oil
• Reduces risk of oil starvation during cold starts with anti-drain back valve
• Maintains consistent oil flow under varying engine pressures
• Protects engine components from abrasive particles larger than 25 microns
• Helps avoid engine damage due to clogged filters with bypass valve

Installation Notes and Tips

Installing the Wix 51189 oil filter is straightforward due to its spin-on design and standard 3/4-16 thread size. Before installation, ensure the engine is cool and the old filter is fully drained. Apply a thin layer of clean engine oil to the new filter’s gasket to ensure a proper seal. Tighten the filter by hand until the gasket contacts the mounting surface, then turn an additional 3/4 to 1 full turn. Avoid over-tightening to prevent damage to the filter or mounting threads.

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for filtration and durability. The 51189 model undergoes rigorous testing to ensure it meets specified burst pressure and flow rate requirements. While specific warranty details may vary, Wix typically offers coverage against defects in materials and workmanship. For detailed warranty information, consult Wix’s official documentation or authorized distributors.
