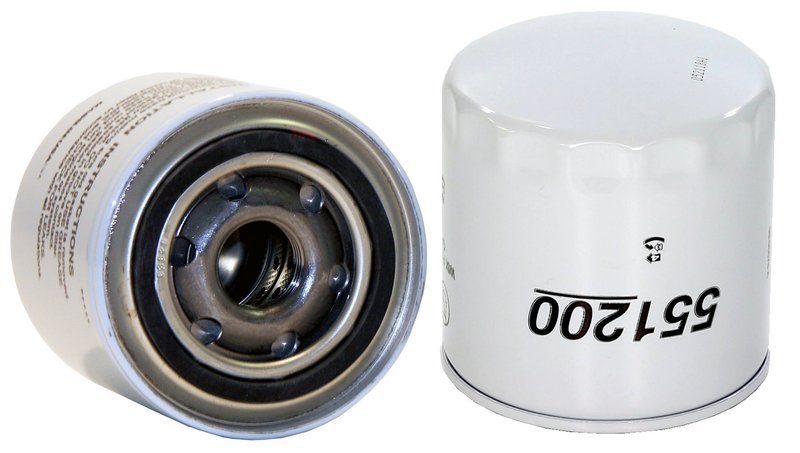

Wix 51200 Hydraulic Filter - Supply
| Brand | Wix 51200 |
|---|---|
| Position | Supply |
| Anti-Drain Back Valve | No |
| BetaRatio | 2/20=6/20 |
| Burst Pressure | 250 |
| Bypass Relief Valve Setting | None |
| Class | Hc |
| Duty Type | Hd |
| Height | 4.217 |
| Inner Diameter Top | Closed |
| Media Material | Enhanced cellulose |
| Micron | 21.00 |
| Outer Diameter Top | 3.67 |
| Style | Spin-on hydraulic filter |
| Thread Size | 1-12 |
| Fits | — |
Spin-on design. Easy to install hydraulic filter with a secure threaded fit.
Enhanced cellulose media. Delivers efficient filtration for demanding hydraulic systems.
Leak-resistant construction. High-strength materials and superior sealing components help prevent leaks.
Cross-references American Parts 92200, Bad Boy Mowers 063801400 and Baldwin BT8918 for the same application. See all 17.
WIX 51200 Hydraulic Filter Overview
The WIX 51200 is a spin-on hydraulic filter built for heavy-duty hydraulic systems that need consistent filtration and leak-resistant performance. It uses enhanced cellulose media and a corrosion-resistant construction to support clean fluid flow under demanding operating conditions.
For buyers searching for a hydraulic filter for John Deere, Toro, or Cub Cadet equipment, the WIX 51200 offers a direct replacement option with application-specific media and OEM-style service interval support.
Key Features
- Spin-on hydraulic filter design with 1-12 thread size
- Enhanced cellulose media for hydraulic fluid filtration
- 21 micron rating for fine contaminant capture
- Beta ratio of 2/20=6/20
- Closed inner diameter top
- Burst pressure rated at 250
- No anti-drain back valve and no bypass relief valve setting
- Heavy-duty class HC construction for demanding equipment use
Detailed Product Description
WIX part number 51200 is engineered as a hydraulic filter for equipment that relies on clean fluid to maintain system performance. The enhanced cellulose media is selected for hydraulic service, while the high-strength center tube, end caps, and corrosion-resistant materials help maintain sealing integrity in harsh operating environments. This makes the WIX 51200 a practical choice for routine hydraulic maintenance on equipment such as John Deere, Toro, and Cub Cadet machines.
As a WIX hydraulic filter, the 51200 is recommended for OEM hydraulic filter change intervals and is built to support long service life in heavy-duty applications. If you are replacing a hydraulic filter on compatible John Deere or Toro equipment, part number 51200 provides a service-focused replacement with the dimensions and thread specification needed for proper installation.
This part cross-references Fleetguard HF6357 and NAPA Gold Filters 1200 for the same application.
Common Problems It Helps Address
- Hydraulic fluid contamination from wear particles and debris
- Reduced hydraulic system efficiency caused by restricted filtration
- Premature component wear in pumps, valves, and cylinders
- Leak concerns related to weak sealing surfaces or filter construction
- Service issues from using the wrong thread size or filter dimensions
Installation Notes and Tips
- Verify thread size, outer diameter, and height before installation.
- Replace the filter at the manufacturer-recommended service interval.
- Inspect the sealing surface and clean the mounting area before spinning on the new filter.
- Confirm hydraulic fluid type and system specifications for the equipment being serviced.
- Use the part number 51200 to match the correct hydraulic filter application for John Deere, Toro, or Cub Cadet equipment.
Quality Assurance
WIX hydraulic filters are built with application-specific media and durable construction materials to support reliable service in heavy-duty hydraulic systems. The WIX 51200 is designed to meet OEM-style maintenance expectations for compatible equipment and routine hydraulic filter replacement.
