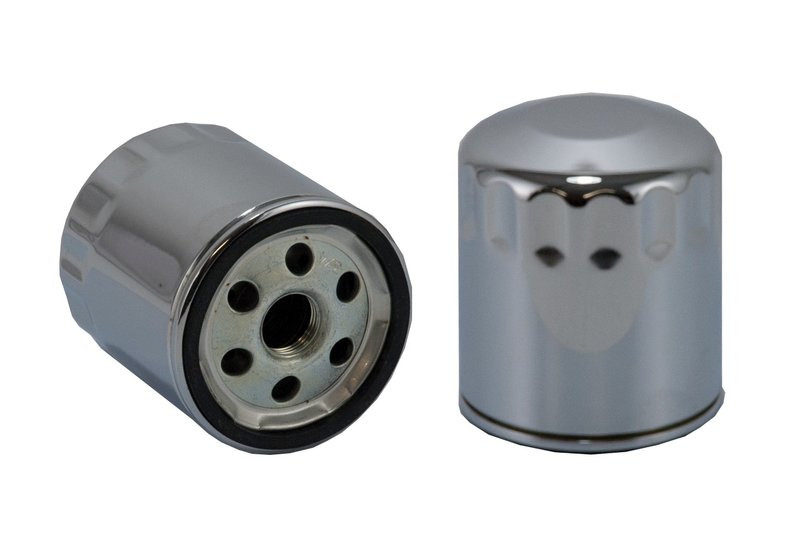

Wix 51225 Engine Oil Filter

WIX 51225 Engine Oil Filter Overview

The WIX 51225 is a spin-on engine oil filter built for dependable lubrication system protection in light-duty applications. It uses cellulose media, a 21-micron rating, and an 8-11 bypass relief setting to help maintain oil flow while capturing damaging contaminants.

For drivers searching for an oil filter for Harley Davidson, Honda Civic, or other vehicle applications that use this size and thread pattern, the WIX 51225 offers a straightforward OE-style service part for routine maintenance.

Key Features

• Spin-on lube filter design for standard oil filter service
• Cellulose filter media for everyday contaminant capture
• 21-micron filtration rating
• Bypass relief valve setting: 8-11
• 3/4-16 thread size
• Closed top inner diameter
• 3.410-inch height and 2.921-inch outer diameter
• No anti-drain back valve

Detailed Description

WIX 51225 is engineered as an engine oil filter for applications that call for a compact spin-on design with conventional filtration media. The filter’s cellulose construction supports routine oil changes with conventional, synthetic, or synthetic-blended motor oils when those oils are specified by the OE vehicle manufacturer. Its bypass relief setting helps maintain oil circulation if the media becomes restricted, while the steel canister, center tube, and end caps are built for corrosion resistance and sealing integrity under normal service conditions.

This part cross-references FRAM PH6065A and NAPA Gold Filters 1225 for the same application. If you are sourcing a replacement oil filter for Harley Davidson, Honda Civic, or other listed interchange applications, WIX 51225 is a direct part number to verify against your existing filter dimensions and thread specification.

What It Helps Address

• Engine wear caused by dirt and abrasive contaminants in motor oil
• Restricted oil flow during normal service intervals
• Filter replacement needs for routine oil changes
• Oil filtration requirements in light-duty driving conditions
• Maintenance for vehicles using a 3/4-16 threaded spin-on filter

Installation Notes and Tips

Verify the filter thread size, gasket sealing surface, height, and outside diameter before installation. Because this filter does not include an anti-drain back valve, confirm that the application does not require one. Install the filter according to the OE service procedure and replace it at the manufacturer-recommended oil change interval.

For fitment-based searches, this part is commonly referenced for Harley Davidson and Honda Civic oil filter replacement needs where the listed dimensions and thread pattern match the vehicle’s original specification.

Quality Assurance

WIX designs its HD oil filters for consistent sealing, corrosion resistance, and dependable filtration performance in routine service. The 51225 is built to support OEM oil and filter change intervals when matched to the correct application.
