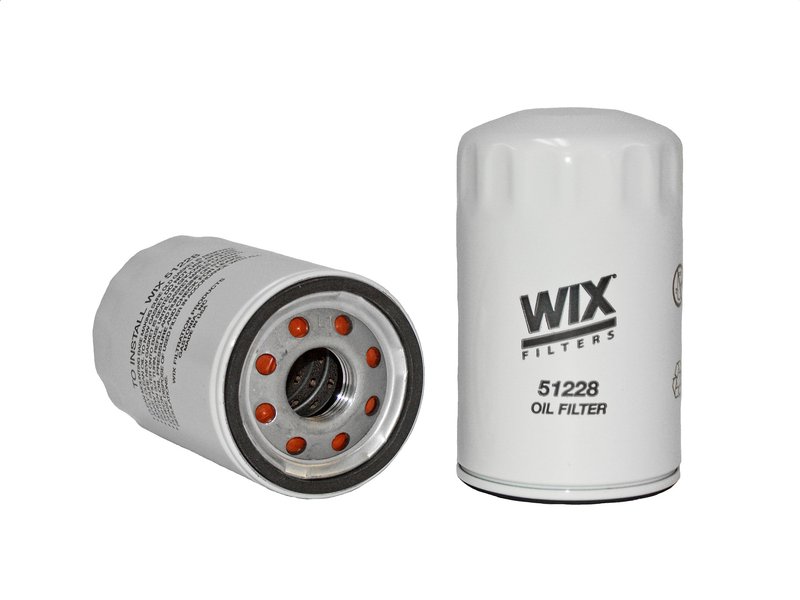

Wix 51228 Engine Oil Filter

Overview of Wix 51228 Engine Oil Filter

The Wix 51228 engine oil filter is designed for reliable oil filtration in select Ford, Jaguar, and Lincoln vehicles. This spin-on lube filter features enhanced cellulose media and an anti-drain back valve to maintain oil flow and engine protection during operation.

• Anti-Drain Back Valve to prevent dry starts
• Enhanced cellulose media for effective contaminant capture
• Bypass relief valve set at 14 psi for consistent oil flow
• Spin-on style with 1-12 thread size for secure installation
• Compatible with Ford Thunderbird, Jaguar XJ8, Lincoln LS, and more

Technical Specifications and Features

The Wix 51228 oil filter is classified as a Class C, light-duty (Ld) filter with a flow rate between 12-15 gallons per minute. It has a height of 4.685 inches and an outer diameter of 3.150 inches. The filter media is enhanced cellulose, providing a micron rating of 21.00 to effectively trap engine contaminants. The beta ratio of 2/20=6/20 indicates its filtration efficiency at different particle sizes. The bypass relief valve setting at 14 psi ensures oil continues to circulate even if the filter becomes clogged, protecting the engine from oil starvation. The anti-drain back valve helps maintain oil pressure and prevents dry starts, which is critical for engine longevity.

Compatible Vehicles and Applications

This Wix 51228 engine oil filter is compatible with various Ford, Jaguar, and Lincoln models, including the Ford Thunderbird, Jaguar S-Type, XJ8, XJR, XK8, XKR, Lincoln LS, and Vanden Plas. It is designed specifically for these vehicles to meet their engine oil filtration requirements and maintain optimal engine performance.

Common Issues Addressed by Wix 51228 Oil Filter

• Prevents engine wear caused by contaminants in the oil
• Reduces risk of oil starvation during cold starts with anti-drain back valve
• Maintains consistent oil flow with bypass relief valve
• Protects engine components from premature failure
• Helps extend oil change intervals by efficient filtration

Installation Notes and Tips

When installing the Wix 51228 oil filter, ensure the engine is cool to avoid burns. Apply a thin layer of clean engine oil to the gasket before threading the filter onto the engine to ensure a proper seal. Tighten the filter according to manufacturer specifications, typically hand-tight plus a quarter turn. Check for leaks after installation and during initial engine operation. Replace the filter at recommended oil change intervals to maintain engine protection.

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for filtration and durability. The 51228 model undergoes rigorous testing to ensure consistent performance in compatible Ford, Jaguar, and Lincoln vehicles. While specific warranty details may vary, Wix generally offers a limited warranty against defects in materials and workmanship. Refer to Wix documentation for complete warranty terms.
