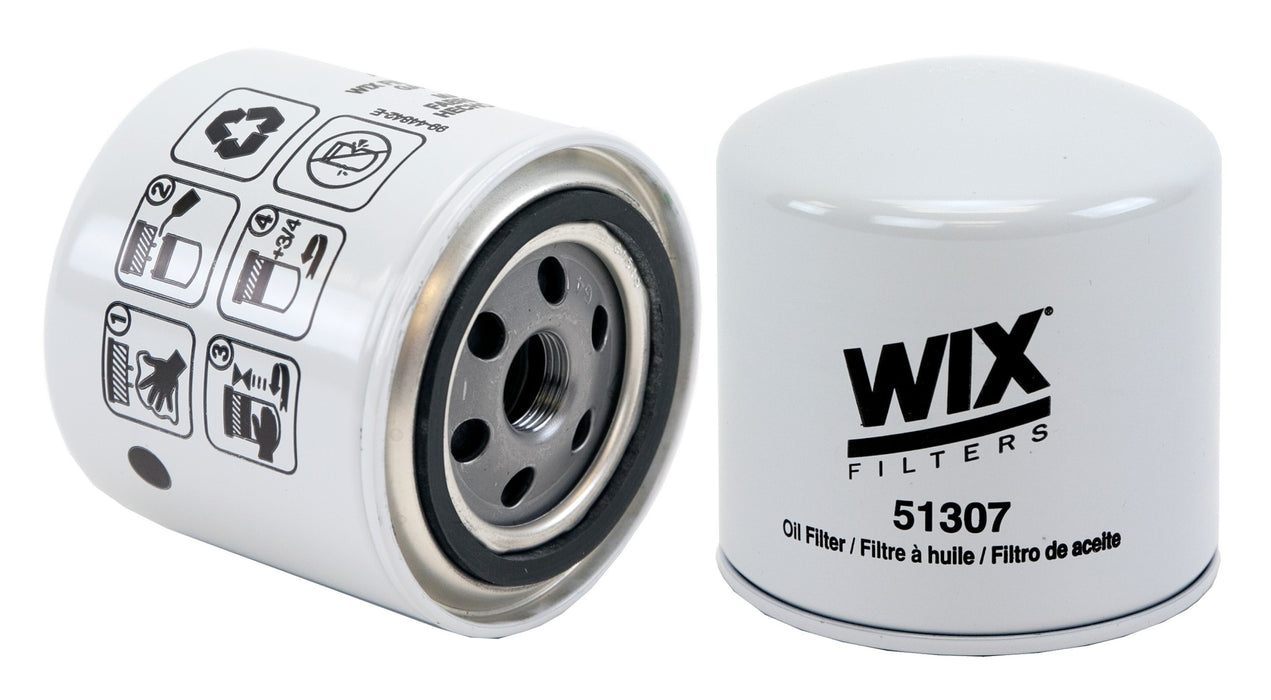

Wix 51307 Engine Oil Filter - External

Reliable Engine Oil Filtration for Nissan and Volvo Vehicles

The Wix 51307 engine oil filter is designed to provide effective oil filtration for select Nissan and Volvo models. Engineered with enhanced cellulose media and a spin-on lube filter style, this filter supports optimal engine performance and longevity.

• Anti-Drain Back Valve to prevent dry starts
• BetaRatio of 2/20=6/20 for efficient contaminant capture
• Burst Pressure rated at 300 psi for durability
• Bypass Relief Valve setting between 8-11 psi to maintain oil flow
• Flow rate of 7-9 gallons per minute suitable for light-duty applications
• Spin-on design with 3/4-16 thread size for easy installation
• Height of 3.812 inches and outer diameter of 3.663 inches
• Media material made of enhanced cellulose for reliable filtration

Technical Details and Performance Features

The Wix 51307 oil filter features a closed inner diameter top and a spin-on lube filter style, making it compatible with various Nissan and Volvo engines. Its enhanced cellulose media provides a 15-micron filtration rating, effectively capturing contaminants while maintaining oil flow. The anti-drain back valve helps prevent oil from draining out of the filter when the engine is off, reducing wear during startup. The bypass relief valve is calibrated between 8 and 11 psi to ensure continuous oil circulation even if the filter becomes clogged. With a burst pressure rating of 300 psi, this filter is built to withstand high-pressure conditions commonly found in automotive engines.

Compatible Nissan and Volvo Models

This Wix 51307 engine oil filter is compatible with several Nissan and Volvo vehicles, including Nissan NV350 Urvan and Volvo models 240, 740, 745, 760, 780, 940, DL, and GLE. When searching for an engine oil filter for these specific models, the Wix 51307 offers a reliable fit and filtration performance.

Common Applications and Problem Solving

• Prevents engine wear caused by contaminants in the oil
• Reduces risk of oil starvation during cold starts with anti-drain back valve
• Maintains proper oil pressure with bypass relief valve
• Protects engine components from damage due to clogged filters
• Supports consistent oil flow for light-duty engine operation

Installation Notes and Tips

Before installing the Wix 51307 oil filter, ensure the engine is cool to avoid burns. Apply a thin layer of clean engine oil to the rubber gasket to create a proper seal. Screw the filter on by hand until the gasket contacts the mounting surface, then tighten an additional 3/4 turn. Avoid over-tightening to prevent damage to the filter or mounting threads. Dispose of the used filter according to local regulations.

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for filtration efficiency and durability. The 51307 model is classified as Class A and designed for light-duty (Ld) applications. While specific warranty details may vary, Wix typically offers coverage against defects in materials and workmanship. Refer to Wix documentation for complete warranty information.
