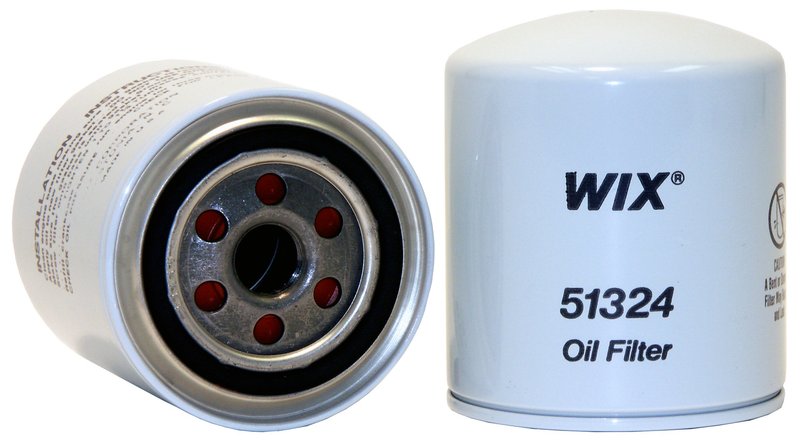

Wix 51324 Engine Oil Filter

Overview of Wix 51324 Engine Oil Filter

The Wix 51324 engine oil filter is designed for reliable oil filtration in various vehicles including Chevrolet, Dodge, Ford, Isuzu, Mazda, Mercury, Mitsubishi, and Pontiac models. This spin-on lube filter features enhanced cellulose media and an anti-drain back valve to maintain optimal engine performance and protection.

• Anti-Drain Back Valve to prevent dry starts
• Enhanced cellulose media for effective filtration
• Beta Ratio of 2/20=6/20 ensuring efficient contaminant removal
• Burst pressure rating of 280 psi for durability
• Bypass relief valve set at 16 psi for consistent oil flow
• Flow rate between 9-11 gallons per minute
• Spin-on style with 20x1.5 mm thread size for easy installation
• Height of 4.354 inches and outer diameter of 3.663 inches

Technical Details and Specifications

The Wix 51324 oil filter is engineered with a class B rating and designed for light-duty applications. Its enhanced cellulose media provides a filtration micron rating of 21, balancing contaminant capture with oil flow. The anti-drain back valve helps maintain oil in the filter during engine shutdown, reducing wear during startup. The bypass relief valve activates at 16 psi to ensure oil continues circulating even if the filter becomes clogged. With a burst pressure of 280 psi, this filter withstands high-pressure conditions without failure. The spin-on design and 20x1.5 mm thread size make it compatible with a range of vehicles, including Chevrolet Corvette, Ford Ranger, Dodge Power Ram 50, Mazda 626, and Pontiac Acadian.

Compatible Vehicles and Applications

This Wix 51324 engine oil filter is compatible with multiple makes and models, including Chevrolet Corvette and Chevette, Dodge Power Ram 50 and Ram 50, Ford Ranger and Tempo, Isuzu I-Mark and Lynx, Mazda 626 and B2200, Mercury Topaz, Mitsubishi Mighty Max, and Pontiac Acadian. It is suitable for vehicles requiring a spin-on lube filter with a 20x1.5 mm thread size and specific filtration requirements.

Common Issues Addressed by Wix 51324 Oil Filter

• Prevents engine wear caused by contaminants in the oil
• Reduces risk of oil starvation during cold starts with anti-drain back valve
• Maintains consistent oil flow even under high pressure or clogging conditions
• Protects engine components by filtering particles down to 21 microns
• Helps avoid engine damage from bypass valve failure or filter collapse

Installation Notes and Tips

When installing the Wix 51324 oil filter, ensure the engine is cool to avoid burns. Apply a thin layer of clean engine oil to the gasket before threading the filter onto the engine to ensure a proper seal. Tighten the filter according to manufacturer specifications, typically hand-tight plus a quarter turn. Check for leaks after installation and during initial engine operation. This filter’s spin-on style simplifies replacement on compatible Chevrolet, Ford, Dodge, and other listed vehicles.

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for filtration efficiency and durability. The 51324 model undergoes rigorous testing including burst pressure and flow rate verification to ensure reliable performance. While specific warranty details may vary, Wix generally offers coverage against defects in materials and workmanship. Using the Wix 51324 oil filter helps maintain engine health and supports vehicle longevity when replaced according to maintenance schedules.
