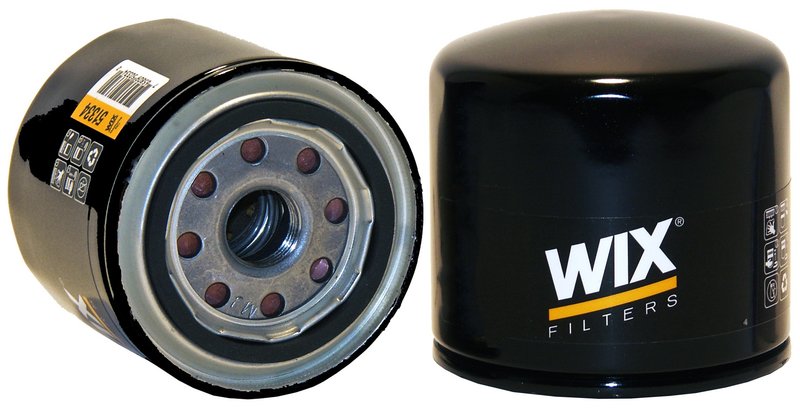

Wix 51334 Engine Oil Filter - Main

Overview of Wix 51334 Engine Oil Filter

The Wix 51334 engine oil filter is designed for reliable oil filtration in a variety of vehicles including Acura, Chevrolet, Ford, Honda, and Subaru models. This spin-on lube filter features enhanced cellulose media and an anti-drain back valve to maintain oil flow and engine protection during operation.

• Anti-Drain Back Valve: Yes, prevents dry starts
• Beta Ratio: 2/20=6/20, indicating filtration efficiency
• Burst Pressure: 280 psi for durability under pressure
• Bypass Relief Valve Setting: 8-11 psi to ensure oil flow under high pressure
• Flow Rate: 9-11 gallons per minute for optimal oil circulation
• Media Material: Enhanced cellulose for effective contaminant capture
• Micron Rating: 21.00 microns for particle filtration
• Style: Spin-on lube filter with 20x1.5 mm thread size
• Dimensions: Height 3.238 inches, Outer Diameter Top 3.15 inches

Technical Details and Compatibility

The Wix 51334 oil filter is engineered to meet the demands of light-duty engines, classified as Class A with a duty type of Ld. Its enhanced cellulose media provides efficient filtration at a 21-micron rating, balancing contaminant removal and oil flow. The anti-drain back valve helps maintain oil pressure during engine shutdown, reducing wear on startup. With a burst pressure rating of 280 psi and a bypass valve set between 8-11 psi, this filter ensures consistent oil flow even under extreme conditions.

This filter is compatible with a wide range of vehicles, including popular models such as the Honda Accord, Ford Escape, Subaru Outback, Chevrolet S10, and Acura MDX. It fits vehicles from manufacturers like Hyundai, Kia, Mitsubishi, Ram, and Genesis, making it a versatile choice for many engine types.

Applications and Problem Solving

• Prevents engine wear by filtering out contaminants and debris
• Maintains oil pressure during engine shutdown with anti-drain back valve
• Protects engine components from damage caused by oil flow interruptions
• Ensures consistent oil flow with bypass relief valve under high pressure
• Reduces risk of engine damage due to clogged or inefficient filters

Installation Notes and Tips

• Ensure the correct thread size (20x1.5 mm) matches your vehicle’s oil filter mount
• Check the filter height (3.238 inches) for clearance in the engine bay
• Lubricate the gasket with clean engine oil before installation to ensure a proper seal
• Tighten the filter according to manufacturer torque specifications to avoid leaks
• Replace the oil filter during every oil change for optimal engine performance

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for filtration and durability. The 51334 model undergoes rigorous testing for burst pressure and flow rate to ensure reliable performance. While specific warranty details may vary, Wix typically offers coverage against defects in materials and workmanship. Always refer to the product documentation or manufacturer for exact warranty terms.
