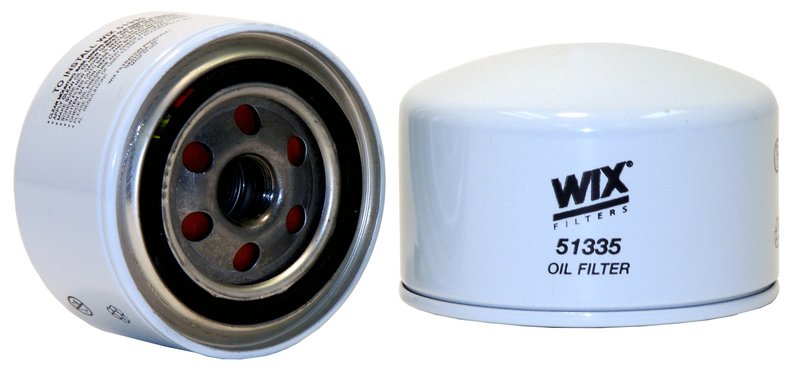

Wix 51335 Engine Oil Filter

Overview of Wix 51335 Engine Oil Filter

The Wix 51335 engine oil filter is designed to provide reliable filtration for various vehicle makes and models, including popular trucks and SUVs. This spin-on lube filter features enhanced cellulose media and an anti-drain back valve to maintain oil flow and engine protection during operation.

• Anti-drain back valve to prevent dry starts
• Enhanced cellulose media for effective contaminant capture
• Spin-on style with 3/4-16 thread size for easy installation
• Bypass relief valve setting between 8-11 psi
• Flow rate of 7-9 gallons per minute
• Beta ratio of 2/20=6/20 for filtration efficiency
• Burst pressure rating of 280 psi
• Compact dimensions: 2.483 inches height, 3.670 inches outer diameter

Technical Details and Specifications

The Wix 51335 oil filter is engineered with a class C duty type and features a bypass relief valve set between 8 and 11 psi to ensure continuous oil flow even under high contamination or cold start conditions. The enhanced cellulose media provides a micron rating of 21.00, effectively filtering out engine contaminants while maintaining optimal oil flow rates between 7 and 9 gallons per minute. The anti-drain back valve helps prevent oil from draining out of the filter when the engine is off, reducing wear during startup. Its spin-on design with a 3/4-16 thread size allows for straightforward replacement on compatible vehicles.

Compatible Vehicles and Applications

This Wix 51335 engine oil filter is compatible with a range of trucks and SUVs from manufacturers such as Ford, Chevrolet, and Dodge. It is commonly used in medium-duty diesel and gasoline engines requiring a class C filter with these specifications. Always verify fitment with your vehicle’s make, model, and engine type to ensure proper compatibility.

Common Issues Addressed by Wix 51335 Oil Filter

• Prevents engine wear caused by contaminants and debris
• Reduces risk of oil starvation during cold starts with anti-drain back valve
• Maintains consistent oil pressure with bypass relief valve
• Protects engine components by filtering particles down to 21 microns
• Helps extend engine life by ensuring clean oil circulation

Installation Notes and Tips

When installing the Wix 51335 oil filter, ensure the engine is cool and the oil is drained to avoid spills. Apply a thin layer of clean engine oil to the gasket before threading the filter onto the engine to ensure a proper seal. Tighten the filter according to manufacturer torque specifications, typically hand-tight plus a quarter turn. Dispose of the used filter properly and check for leaks after installation.

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for filtration and durability. The 51335 model undergoes rigorous testing for burst pressure and flow rate to ensure reliable performance. While specific warranty details may vary, Wix generally offers coverage against defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
