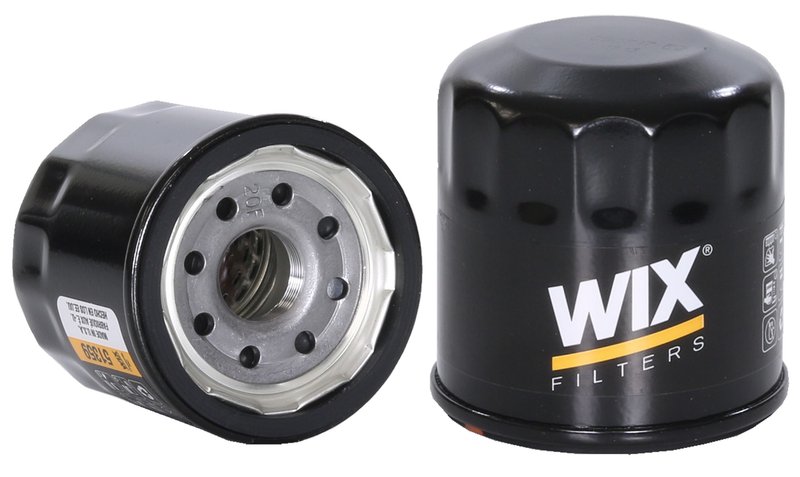

Wix 51359 Engine Oil Filter - Main
| Brand | Wix 51359 |
|---|---|
| Position | Main |
| Anti-Drain Back Valve | Yes |
| BetaRatio | 2/20=6/20 |
| Burst Pressure | 250 |
| Bypass Relief Valve Setting | 8-11 |
| Class | A |
| Duty Type | Ld |
| Flow Rate | 9-11 |
| Height | 2.78 |
| Inner Diameter Bottom | 0.00 |
| Length | 0.00 |
| Media Material | Enhanced cellulose |
| Micron | 21.00 |
| Outer Diameter Bottom | 0.00 |
| Outer Diameter Top | 2.69 |
| Style | Spin-on lube filter |
| Thread Size | 20x1 mm |
| Width | 0.00 |
| Fits | — |
High-capacity media. Provides strong engine protection with enhanced cellulose filtration.
Anti-drainback valve. Helps protect against dry starts after extended shutdowns.
Spin-on design. Makes oil filter changes quick and straightforward.
Cross-references American Parts 92359, Aprilia 857187 and Arctic Cat 0436001 for the same application. See all 44.
WIX 51359 Engine Oil Filter Overview
The WIX 51359 engine oil filter is built for dependable oil filtration in light-duty and severe-service driving conditions. It uses enhanced cellulose media, a spin-on design, and a corrosion-resistant canister to help maintain clean oil flow in engines that see frequent starts, stop-and-go traffic, dirt roads, or extended service intervals.
Compatible With select Kawasaki, Suzuki, Arctic Cat, and other applications that cross-reference to this size and thread pattern, the WIX 51359 is a practical choice for routine oil service on motorcycles, powersports equipment, and other engines using a 20x1 mm spin-on filter.
Key Features
- Part number: 51359
- Spin-on lube filter design
- Enhanced cellulose filter media
- Anti-drainback valve included
- Bypass relief valve setting: 8-11 psi
- Micron rating: 21 microns
- Flow rate: 9-11 GPM
- Burst pressure: 250 psi
- Thread size: 20x1 mm
- Outer diameter: 2.69 in; height: 2.78 in
Detailed Description
WIX builds the 51359 oil filter with high-capacity media and durable metal components to support consistent filtration under normal and severe operating conditions. The filter is rated for use with conventional, synthetic, and synthetic-blended motor oils, and its anti-drainback valve helps reduce dry starts when the engine sits between service intervals. WIX recommends this filter for OEM oil and filter change intervals, typically 3,750 to 10,000 miles and not more than 12 months.
This part cross-references FRAM PH6018 and NAPA Gold Filters 1359 for the same application. If you are searching for a WIX 51359 oil filter for Kawasaki or Suzuki fitment, or a replacement filter for select Arctic Cat applications, this part number is commonly used in those cross-reference listings.
What It Helps Address
- Engine oil contamination from dirt and wear particles
- Reduced oil flow during cold starts or extended sit time
- Filter breakdown under demanding road or off-road conditions
- Premature service issues from inconsistent filtration
- Oil maintenance needs for engines using a 20x1 mm spin-on filter
Installation Notes and Tips
Verify thread size, gasket sealing surface, and overall filter dimensions before installation. Replace the filter during scheduled oil service and pre-fill only if the engine manufacturer allows it. Tighten according to the vehicle or equipment service manual, then check for leaks after startup. For fitment-based searches, confirm the application against your Kawasaki, Suzuki, or Arctic Cat model before ordering the WIX 51359.
Quality Assurance
WIX designs this filter with high-strength, corrosion-resistant cans, center tubes, and end caps, along with sealing components intended to maintain leak-resistant performance. Laboratory testing data cited by WIX indicates strong dirt-holding capacity and high filtration efficiency for severe-duty use.
