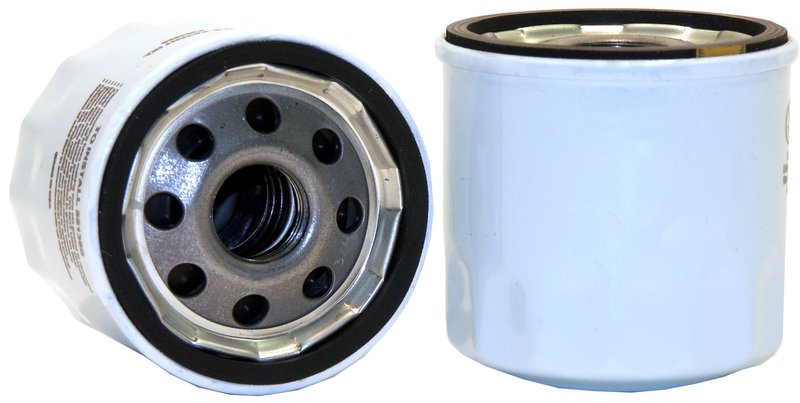

Wix 51360 Engine Oil Filter

Reliable Engine Oil Filtration for Your Vehicle

The Wix 51360 engine oil filter is designed to provide dependable filtration performance for a variety of vehicles. Engineered with enhanced cellulose media and a spin-on lube filter style, this filter helps maintain engine cleanliness and efficiency.

• Anti-drain back valve to prevent dry starts
• Beta ratio of 2/20=6/20 for effective contaminant capture
• Burst pressure rating of 270 psi for durability
• Bypass relief valve setting between 8-11 psi to ensure oil flow under high contamination
• Heavy-duty (Hd) duty type suitable for demanding engine conditions
• Flow rate between 7-9 gallons per minute for optimal oil circulation
• Enhanced cellulose media material for balanced filtration and flow
• Spin-on style with 3/4-16 thread size for straightforward installation
• Compact dimensions: 2.577 inches height and 2.685 inches outer diameter

Technical Details and Performance

The Wix 51360 oil filter features a heavy-duty construction classified as Hb, designed to withstand rigorous engine environments. Its enhanced cellulose media provides a filtration micron rating of 21, effectively capturing contaminants while maintaining oil flow. The anti-drain back valve helps prevent oil starvation during startup, protecting engine components. With a burst pressure of 270 psi and a bypass relief valve set between 8 and 11 psi, this filter ensures continuous oil flow even when the filter media becomes clogged. The spin-on lube filter style with a 3/4-16 thread size allows for easy replacement on compatible vehicles.

Compatible Vehicles and Applications

The Wix 51360 engine oil filter is compatible with various makes and models requiring a 3/4-16 threaded spin-on filter with similar dimensions and flow characteristics. It is commonly used in medium-duty trucks and passenger vehicles that demand reliable oil filtration to maintain engine performance and longevity.

• Helps prevent engine wear caused by contaminants
• Reduces risk of oil starvation during cold starts
• Maintains consistent oil flow under high pressure
• Protects against filter collapse under heavy-duty conditions
• Supports engine efficiency by maintaining clean oil

Installation Notes and Tips

When installing the Wix 51360 oil filter, ensure the engine is cool to avoid burns. Apply a thin layer of clean engine oil to the gasket before threading the filter onto the engine to ensure a proper seal. Tighten the filter according to manufacturer specifications, typically hand-tight plus a quarter turn. Check for leaks after installation and during initial engine operation.

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for filtration and durability. The 51360 model undergoes rigorous testing for burst pressure, flow rate, and contaminant retention. While specific warranty details are not provided here, Wix products generally come with a limited warranty against defects in materials and workmanship. Refer to Wix documentation for complete warranty information.
