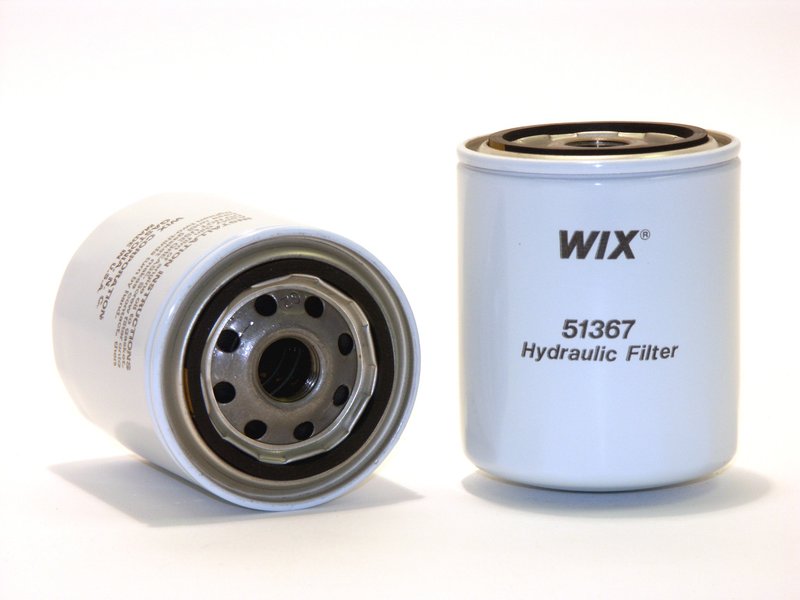

Wix 51367 Hydraulic Filter - Suction

Overview of Wix 51367 Hydraulic Filter

The Wix 51367 hydraulic filter is designed to provide reliable filtration for heavy-duty hydraulic systems. Featuring a spin-on style and enhanced cellulose media, this filter helps maintain system cleanliness and performance in various industrial and automotive applications.

• Anti-drain back valve to prevent fluid loss during shutdown
• Beta ratio of 2/20=6/20 for effective particle retention
• Burst pressure rating of 380 psi for durability under high pressure
• Flow rate between 7 to 9 gallons per minute suitable for heavy-duty use
• Spin-on hydraulic filter style with 3/4-16 thread size for secure installation
• Enhanced cellulose media with 21 micron filtration rating
• Compact dimensions: 4.069 inches height and 3.234 inches outer diameter

Technical Details and Specifications

The Wix 51367 hydraulic filter is engineered for heavy-duty duty type and class, ensuring it withstands demanding hydraulic environments. Its enhanced cellulose media provides a 21-micron filtration rating, effectively capturing contaminants to protect hydraulic components. The anti-drain back valve feature prevents fluid from draining out when the system is off, maintaining system readiness. With a burst pressure of 380 psi, this filter is built to handle high-pressure hydraulic circuits without failure. The spin-on design with a 3/4-16 thread size allows for straightforward replacement and secure fitting in compatible systems.

Applications and Problem Solving

• Protects hydraulic pumps and valves from particulate contamination
• Prevents system downtime caused by clogged or inefficient filters
• Maintains hydraulic fluid cleanliness to extend component life
• Reduces risk of hydraulic system failure due to pressure spikes
• Ensures consistent flow rate between 7 and 9 gpm for optimal system performance

Installation Notes and Tips

When installing the Wix 51367 hydraulic filter, ensure the system is depressurized to avoid fluid spray. The spin-on design simplifies replacement; apply a thin layer of clean hydraulic fluid to the gasket before threading the filter onto the housing. Tighten the filter according to manufacturer specifications to prevent leaks. Regular inspection and timely replacement based on operating hours or contamination levels will help maintain hydraulic system efficiency.

Quality Assurance and Warranty

Wix hydraulic filters are manufactured to meet industry standards for durability and filtration efficiency. The 51367 model undergoes rigorous testing to ensure burst pressure and flow rate specifications are met. While specific warranty details are not provided here, Wix products typically come with manufacturer-backed quality assurance to support reliable operation in heavy-duty hydraulic applications.
