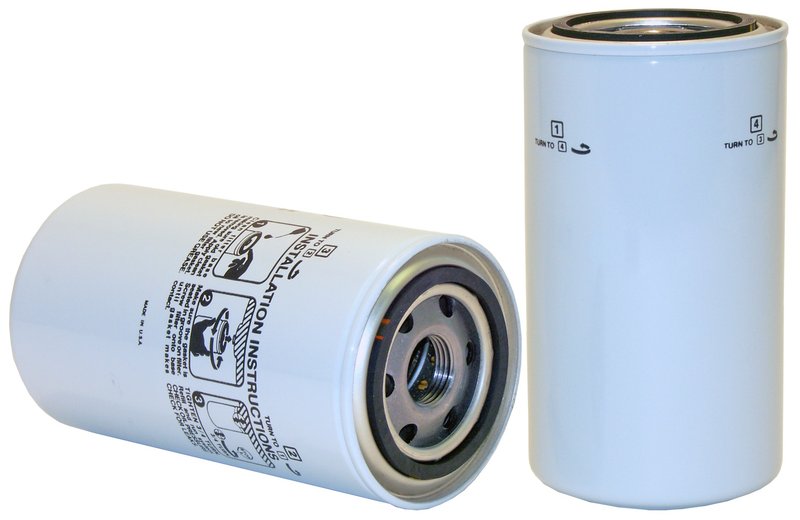

Wix 51461 Engine Oil Filter

Overview of Wix 51461 Engine Oil Filter

The Wix 51461 engine oil filter is designed for heavy-duty applications requiring reliable filtration performance. This spin-on hydraulic filter features enhanced cellulose media to maintain engine cleanliness and protect critical components.

• Spin-on hydraulic filter style with 1-12 thread size
• Enhanced cellulose media with 32-micron filtration rating
• Heavy-duty class and duty type for demanding engine conditions
• Flow rate between 12-16 gallons per minute
• Burst pressure rated at 355 psi for durability
• Height of 6.987 inches and outer diameter of 3.674 inches
• No anti-drain back valve or bypass relief valve setting

Technical Details and Specifications

The Wix 51461 oil filter is engineered to provide consistent filtration in heavy-duty engines. Its enhanced cellulose media captures contaminants down to 32 microns, balancing filtration efficiency with flow rate. The filter supports a flow rate of 12 to 16 gallons per minute, suitable for high-demand engine oil circulation. With a burst pressure rating of 355 psi, the filter maintains structural integrity under pressure spikes. The spin-on design with a 1-12 thread size allows for straightforward installation and replacement. The filter’s height of nearly 7 inches and outer diameter of 3.674 inches fit specific heavy-duty engine configurations. Notably, this model does not include an anti-drain back valve or bypass relief valve, which is typical for certain hydraulic filter applications.

Applications and Problem Solving

• Helps prevent engine wear by filtering out particulate contaminants
• Maintains oil flow in heavy-duty engines under high pressure
• Reduces risk of filter collapse with a 355 psi burst pressure rating
• Supports hydraulic systems requiring spin-on filters without bypass valves
• Suitable for vehicles and equipment requiring 32-micron filtration and heavy-duty duty type

Installation Notes and Tips

Ensure compatibility with your vehicle’s engine specifications before installation. The Wix 51461 filter uses a 1-12 thread size and spin-on style, so verify the mounting surface matches these dimensions. Since this filter lacks an anti-drain back valve, it is important to check oil levels and pressure after installation to avoid dry starts. Tighten the filter according to manufacturer torque specifications to prevent leaks or damage.

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for heavy-duty engine filtration. The 51461 model undergoes rigorous testing for burst pressure and flow rate to ensure reliable performance. While specific warranty details are not provided here, Wix typically offers coverage against manufacturing defects. Consult Wix documentation or authorized distributors for warranty terms related to this part number.
