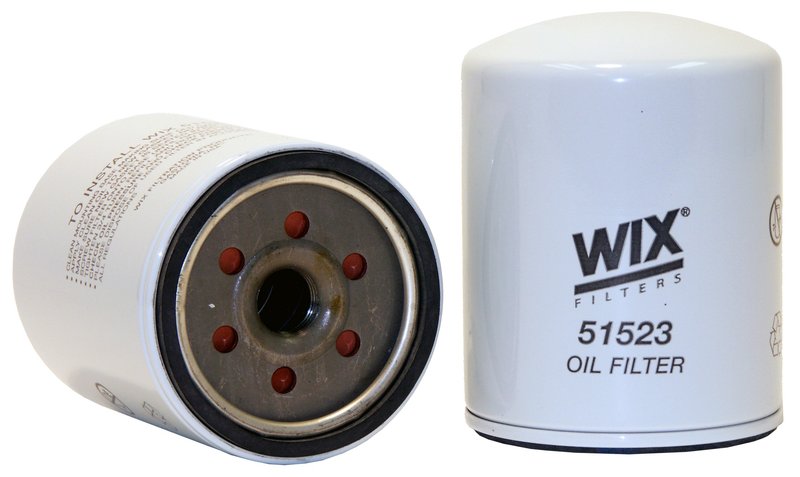

Wix 51523 Engine Oil Filter

Overview of Wix 51523 Engine Oil Filter

The Wix 51523 engine oil filter is designed for reliable oil filtration in Chevrolet LUV and Isuzu Pickup vehicles. This spin-on lube filter features enhanced cellulose media and an anti-drain back valve to maintain oil flow and engine protection during operation.

• Anti-Drain Back Valve to prevent dry starts
• Enhanced cellulose media with 21 micron filtration
• Beta ratio of 2/20=6/20 for efficient contaminant capture
• Burst pressure rating of 360 psi for durability
• Bypass relief valve setting between 13-19 psi
• Flow rate between 9-11 gallons per minute
• Spin-on style with 20x1.5 mm thread size
• Height of 4.801 inches and outer diameter of 3.670 inches

Technical Details and Specifications

The Wix 51523 oil filter is engineered to meet the demands of light-duty engines, classified as Class B with a duty type of LD. Its enhanced cellulose media provides effective filtration at 21 microns, balancing contaminant removal and oil flow. The anti-drain back valve helps maintain oil pressure during engine shutdown, reducing wear from dry starts. The bypass relief valve activates between 13 and 19 psi to ensure continuous oil flow even if the filter becomes clogged. With a burst pressure of 360 psi, this filter maintains structural integrity under high pressure conditions. The spin-on design with a 20x1.5 mm thread size allows for straightforward installation on compatible Chevrolet LUV and Isuzu Pickup models.

Compatible Vehicles and Applications

This Wix 51523 engine oil filter is compatible with Chevrolet LUV and Isuzu Pickup vehicles, providing reliable filtration tailored to these models' engine requirements. It is suitable for owners seeking a replacement oil filter that meets OEM specifications and supports engine longevity.

• Prevents engine wear caused by contaminants
• Maintains oil pressure during engine shutdown
• Protects against oil filter collapse under high pressure
• Ensures consistent oil flow even if filter media clogs
• Reduces risk of engine damage from dry starts

Installation Notes and Tips

When installing the Wix 51523 oil filter, ensure the engine is cool to avoid burns. Apply a thin layer of clean engine oil to the gasket before threading the filter to improve sealing and ease removal during the next change. Tighten the filter according to manufacturer torque specifications to prevent leaks. Dispose of the used filter properly in accordance with local regulations.

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for filtration performance and durability. The 51523 model undergoes rigorous testing for burst pressure and flow rate to ensure reliable operation. While specific warranty details may vary, Wix typically offers coverage against defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
