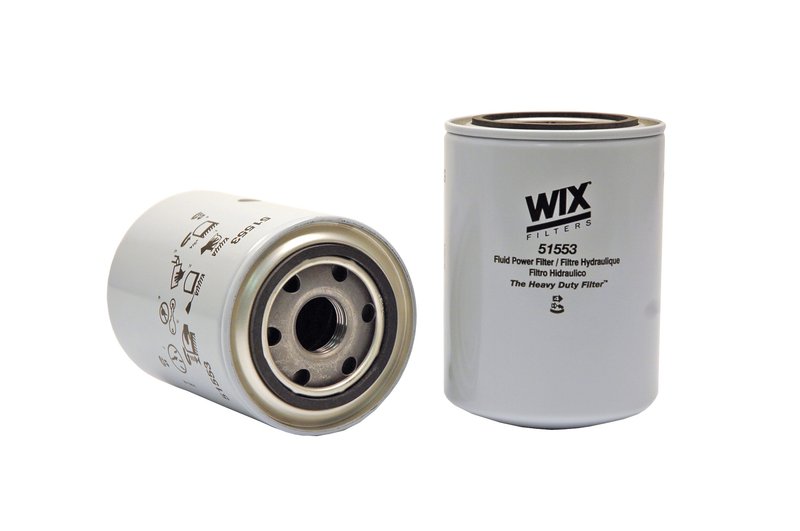

Wix 51553 Hydraulic Filter

Overview of Wix 51553 Spin-On Hydraulic Filter

The Wix 51553 hydraulic filter is designed for heavy-duty applications requiring reliable fluid filtration. This spin-on hydraulic filter offers a flow rate between 12 and 16 gallons per minute, making it suitable for various industrial and automotive hydraulic systems.

• Spin-on hydraulic filter style for easy installation
• Flow rate of 12-16 gallons per minute
• Cellulose media material with 33-micron filtration rating
• Beta ratio of 2/20=35/52 for effective contaminant removal
• Burst pressure rating of 350 psi
• Heavy-duty (Hd) duty type classification
• Height of 5.209 inches and outer diameter of 3.663 inches
• Thread size 1-12 with closed inner diameter top
• No anti-drain back valve or bypass relief valve setting

Technical Details and Performance

The Wix 51553 hydraulic filter features cellulose media designed to capture particles down to 33 microns, ensuring protection of hydraulic components from contamination. Its Beta ratio of 2/20=35/52 indicates efficient filtration performance, balancing fluid flow and particle retention. Rated for a burst pressure of 350 psi, this filter maintains integrity under demanding hydraulic system pressures. The filter’s heavy-duty classification supports use in robust applications where durability is critical.

Applications and Problem Solving

This hydraulic filter is compatible with a range of heavy-duty vehicles and equipment requiring spin-on style filters with a 1-12 thread size. It is commonly used in hydraulic systems of trucks, construction machinery, and agricultural equipment. The Wix 51553 helps address issues such as:

• Hydraulic fluid contamination leading to component wear
• Reduced hydraulic system efficiency due to clogged filters
• Potential system damage from particle ingress
• Maintaining consistent flow rates in hydraulic circuits
• Protecting pumps and valves from premature failure

Installation Notes and Tips

When installing the Wix 51553 hydraulic filter, ensure the system is depressurized to avoid fluid spray. The spin-on design allows for straightforward replacement; apply a thin layer of clean hydraulic fluid to the gasket before threading the filter onto the housing. Tighten according to manufacturer specifications to prevent leaks but avoid over-tightening. Regular inspection and replacement intervals should be followed based on vehicle or equipment manufacturer recommendations.

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for hydraulic filtration. The 51553 model undergoes rigorous testing to ensure durability and filtration efficiency under heavy-duty conditions. While specific warranty details are not provided here, Wix typically offers coverage against manufacturing defects. Consult product documentation or authorized distributors for warranty terms related to this hydraulic filter.
