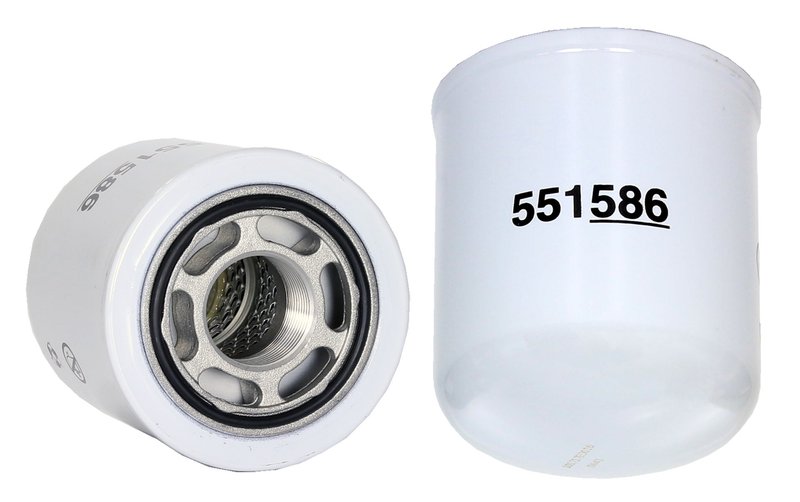

Wix 51586 Hydraulic Filter

Overview of Wix 51586 Hydraulic Filter

The Wix 51586 hydraulic filter is designed for heavy-duty hydraulic systems requiring reliable filtration. This spin-on hydraulic filter features a cellulose media material with a 17-micron rating, suitable for maintaining fluid cleanliness in various vehicle hydraulic applications.

• Spin-on hydraulic filter style for easy installation
• Cellulose media material with 17-micron filtration
• Flow rate between 24-28 gallons per minute (gpm)
• Burst pressure rated at 1000 psi for durability
• Thread size of 1 3/8-12 for secure fitment
• Height of 4.470 inches and outer diameter of 3.820 inches
• No anti-drain back valve or bypass relief valve setting
• Class Hc and heavy-duty (Hd) duty type for demanding environments

Technical Details and Specifications

The Wix 51586 hydraulic filter is engineered to provide effective filtration in hydraulic systems with a flow rate capacity of 24 to 28 gpm. Its cellulose media captures contaminants down to 17 microns, helping to protect hydraulic components from wear and damage. The filter’s burst pressure rating of 1000 psi ensures it can withstand high-pressure conditions commonly found in heavy-duty vehicles. The spin-on design with a 1 3/8-12 thread size allows for straightforward replacement without specialized tools. The filter’s dimensions, including a height of 4.470 inches and an outer diameter of 3.820 inches, make it compatible with specific hydraulic systems requiring these measurements.

Applications and Problem Solving

• Maintains hydraulic fluid cleanliness to prevent system contamination
• Protects hydraulic pumps and valves from particulate damage
• Reduces wear and extends the service life of hydraulic components
• Prevents hydraulic system failures caused by clogged or inefficient filters
• Supports consistent hydraulic system performance under heavy-duty conditions

Installation Notes and Tips

When installing the Wix 51586 hydraulic filter, ensure the system is depressurized to avoid fluid spray. The spin-on design simplifies replacement; apply a light coat of clean hydraulic fluid to the gasket before threading the filter onto the housing. Tighten the filter according to manufacturer specifications to prevent leaks. Regular inspection and timely replacement based on operating hours or contamination levels will help maintain optimal hydraulic system performance.

Quality Assurance and Warranty

Wix hydraulic filters are manufactured to meet industry standards for filtration efficiency and durability. The 51586 model is built to withstand heavy-duty applications with consistent performance. While specific warranty details are not provided here, Wix products typically come with manufacturer-backed quality assurance to support reliability in demanding automotive and industrial environments.
